MCP1826ST-0802E/DB

MCP1826ST-0802E/DB Overview

Product belongs to the - series. Tape & Reel (TR) Alternate Packaging is the packaging method for this product Weight of 0.008826 oz SMD/SMT Mounting-Style SOT-223-3 Operational temperature range: -40°C ~ 125°C Surface Mount mounting type Output-Type: Fixed Supplier device package: SOT-223-3 2.3 V ~ 6 V voltage input Number-of-Outputs: 1 Output Output voltage: 0.8V Positive Fixed regulator topology The product has 1 of 1. Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Output voltage: 800 mV Maximum Input Voltage: 6 V Output current: 1 A The product's + 2.3 V is 5.1 V. Load regulation is 0.5 %. The voltage regulation accuracy of this product is 2 %. Input bias current of 120 uA This product has a 220 uA of 7 mA, making it ideal for low-power applications. The 0.25 V at 1 A. The maximum 400 mV at 1 A is 360 mV. This product's 0.05 % / V is 0.01 %/V.

MCP1826ST-0802E/DB Image

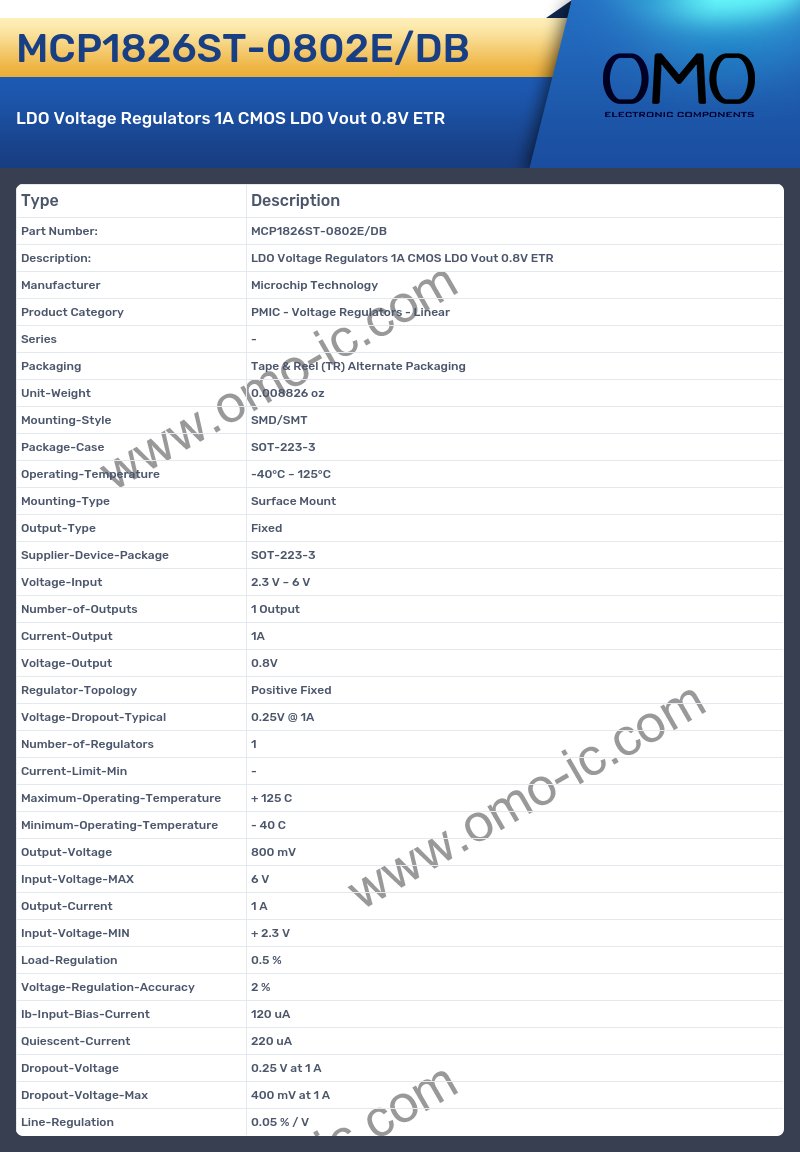

MCP1826ST-0802E/DB Specifications

• Manufacturer Microchip Technology
• Product Category PMIC - Voltage Regulators - Linear
• Series -
• Packaging Tape & Reel (TR) Alternate Packaging
• Unit-Weight 0.008826 oz
• Mounting-Style SMD/SMT
• Package-Case SOT-223-3
• Operating-Temperature -40°C ~ 125°C
• Mounting-Type Surface Mount
• Output-Type Fixed
• Supplier-Device-Package SOT-223-3
• Voltage-Input 2.3 V ~ 6 V
• Number-of-Outputs 1 Output
• Current-Output 1A
• Voltage-Output 0.8V
• Regulator-Topology Positive Fixed
• Voltage-Dropout-Typical 0.25V @ 1A
• Number-of-Regulators 1
• Current-Limit-Min -
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Output-Voltage 800 mV
• Input-Voltage-MAX 6 V
• Output-Current 1 A
• Input-Voltage-MIN + 2.3 V
• Load-Regulation 0.5 %
• Voltage-Regulation-Accuracy 2 %
• Ib-Input-Bias-Current 120 uA
• Quiescent-Current 220 uA
• Dropout-Voltage 0.25 V at 1 A
• Dropout-Voltage-Max 400 mV at 1 A
• Line-Regulation 0.05 % / V
