MC9S08SH32CWLR

MC9S08SH32CWLR Overview

Product belongs to the S08 series. Tape & Reel (TR) Alternate Packaging is the packaging method for this product Weight of 0.026676 oz SMD/SMT Mounting-Style SOIC-28 Operational temperature range: -40°C ~ 85°C (TA) Supplier device package: 28-SOIC W This product has 23 I/O ports for versatile connectivity. Operating frequency: 40MHz Program memory type: FLASH I2C, LIN, SCI, SPI interface Supply Voltage: 2.7 V ~ 5.5 V 8-Bit architecture Internal oscillator type Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C This product operates at a 2.7 V to 5.5 V supply voltage for reliable performance. SCI SPI interface type Processor Core: S08 This product is powered by the MC9S08 Processor-Series, providing high performance and efficiency. The 8 bit. Maximum supply voltage of 5.5 V Minimum supply voltage is 2.7 V Maximum clock frequency of 40 MHz Number of ADC Channels: 16 This product has 23 I/O connections. This product has a 1 kB data RAM size, providing ample storage for complex applications. This product features 3 Timer number of timers and counters. This product features a high-precision 10 bit, ensuring accurate data conversion. This product utilizes RAM, providing fast and efficient data storage.

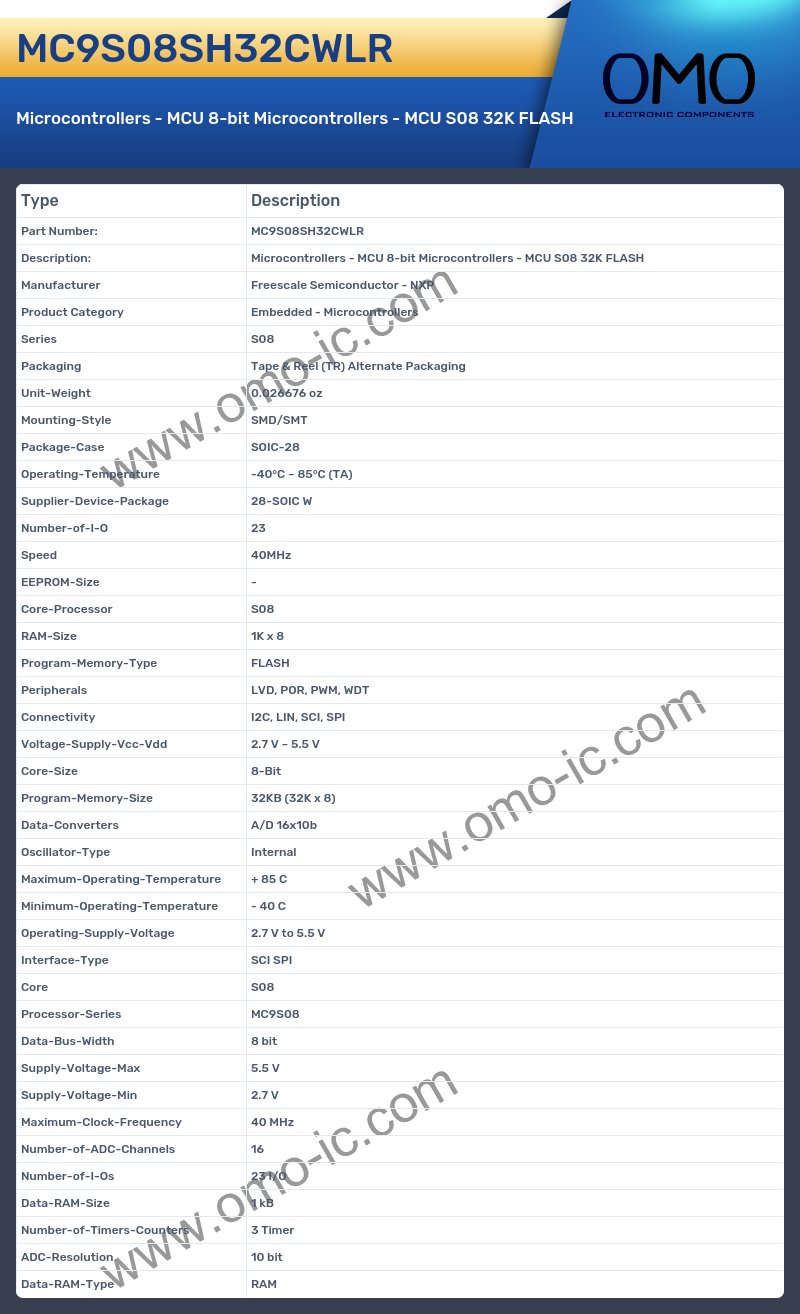

MC9S08SH32CWLR Image

MC9S08SH32CWLR Specifications

• Manufacturer Freescale Semiconductor - NXP
• Product Category Embedded - Microcontrollers
• Series S08
• Packaging Tape & Reel (TR) Alternate Packaging
• Unit-Weight 0.026676 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-28
• Operating-Temperature -40°C ~ 85°C (TA)
• Supplier-Device-Package 28-SOIC W
• Number-of-I-O 23
• Speed 40MHz
• EEPROM-Size -
• Core-Processor S08
• RAM-Size 1K x 8
• Program-Memory-Type FLASH
• Peripherals LVD, POR, PWM, WDT
• Connectivity I2C, LIN, SCI, SPI
• Voltage-Supply-Vcc-Vdd 2.7 V ~ 5.5 V
• Core-Size 8-Bit
• Program-Memory-Size 32KB (32K x 8)
• Data-Converters A/D 16x10b
• Oscillator-Type Internal
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Voltage 2.7 V to 5.5 V
• Interface-Type SCI SPI
• Core S08
• Processor-Series MC9S08
• Data-Bus-Width 8 bit
• Supply-Voltage-Max 5.5 V
• Supply-Voltage-Min 2.7 V
• Maximum-Clock-Frequency 40 MHz
• Number-of-ADC-Channels 16
• Number-of-I-Os 23 I/O
• Data-RAM-Size 1 kB
• Number-of-Timers-Counters 3 Timer
• ADC-Resolution 10 bit
• Data-RAM-Type RAM
