MC34063EBD-TR

MC34063EBD-TR Overview

Product belongs to the MC34063EB series. Type: Buck/Boost/Inverting Switching Regulator Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.017870 oz SMD/SMT Mounting-Style SO-8 Operational temperature range: -40°C ~ 125°C (TA) Surface Mount mounting type Output-Type: Adjustable Product function is Step-Up, Step-Down. Supplier device package: 8-SO Number-of-Outputs: 1 Topology: Buck, Boost feedback This product features 'Frequency-Switching' at 100kHz for optimal performance. The Positive or Negative. Minimum fixed output voltage is 1.25V . The value of No is included as a product attribute. The minimum input voltage is 3V. The 40V. Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Output voltage: 1.25 V to 38 V Maximum Input Voltage: 40 V Output current: 1.5 A Switching frequency is 100 kHz The product's 3 V is 5.1 V. Load regulation is 10 mV.

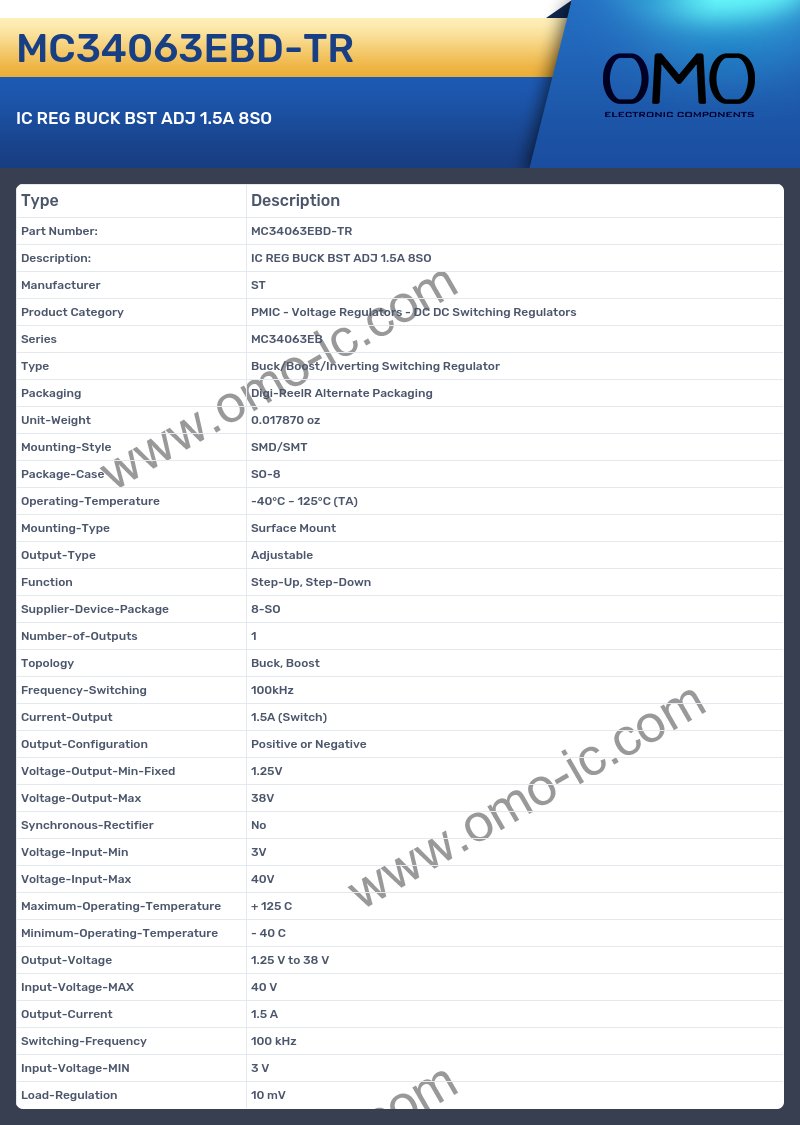

MC34063EBD-TR Image

MC34063EBD-TR Specifications

• Manufacturer ST
• Product Category PMIC - Voltage Regulators - DC DC Switching Regulators
• Series MC34063EB
• Type Buck/Boost/Inverting Switching Regulator
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.017870 oz
• Mounting-Style SMD/SMT
• Package-Case SO-8
• Operating-Temperature -40°C ~ 125°C (TA)
• Mounting-Type Surface Mount
• Output-Type Adjustable
• Function Step-Up, Step-Down
• Supplier-Device-Package 8-SO
• Number-of-Outputs 1
• Topology Buck, Boost
• Frequency-Switching 100kHz
• Current-Output 1.5A (Switch)
• Output-Configuration Positive or Negative
• Voltage-Output-Min-Fixed 1.25V
• Voltage-Output-Max 38V
• Synchronous-Rectifier No
• Voltage-Input-Min 3V
• Voltage-Input-Max 40V
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Output-Voltage 1.25 V to 38 V
• Input-Voltage-MAX 40 V
• Output-Current 1.5 A
• Switching-Frequency 100 kHz
• Input-Voltage-MIN 3 V
• Load-Regulation 10 mV
