M74HCT14TTR

M74HCT14TTR Overview

Product belongs to the 74HCT series. Digi-ReelR Alternate Packaging is the packaging method for this product 14-TSSOP (0.173", 4.40mm Width) Operational temperature range: -55°C ~ 125°C Surface Mount mounting type Voltage Supply Range: 4.5 V ~ 5.5 V Supplier device package: 14-TSSOP 6 is 8. 1μA maximum quiescent current. Inverter logic type 0.5 V ~ 0.6 V is a Logic-Level-Low; 1.9 V ~ 2.1 V is the Logic-Level-High

M74HCT14TTR Image

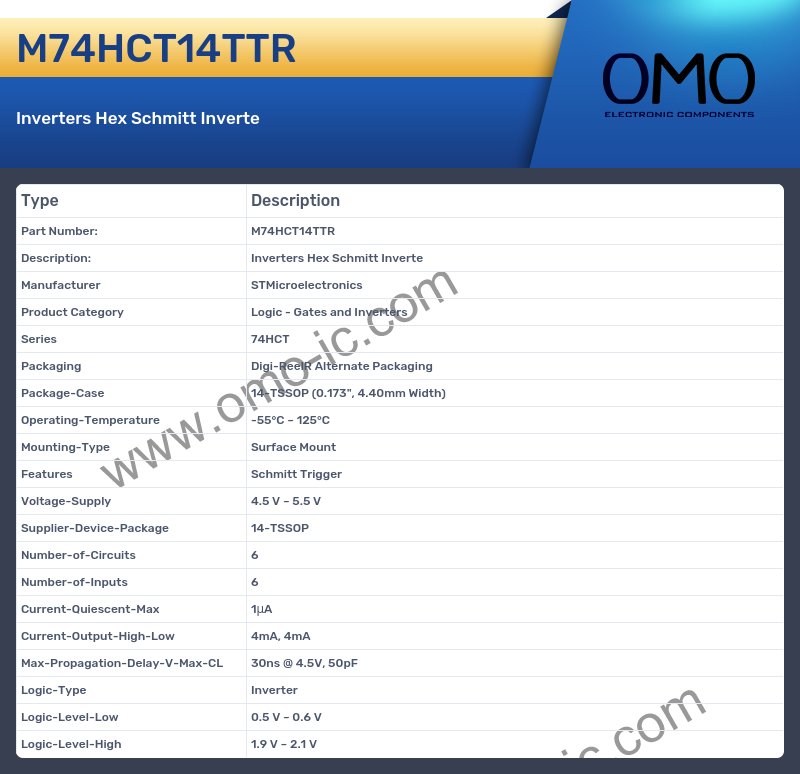

M74HCT14TTR Specifications

• Manufacturer STMicroelectronics
• Product Category Logic - Gates and Inverters
• Series 74HCT
• Packaging Digi-ReelR Alternate Packaging
• Package-Case 14-TSSOP (0.173", 4.40mm Width)
• Operating-Temperature -55°C ~ 125°C
• Mounting-Type Surface Mount
• Features Schmitt Trigger
• Voltage-Supply 4.5 V ~ 5.5 V
• Supplier-Device-Package 14-TSSOP
• Number-of-Circuits 6
• Number-of-Inputs 6
• Current-Quiescent-Max 1μA
• Current-Output-High-Low 4mA, 4mA
• Max-Propagation-Delay-V-Max-CL 30ns @ 4.5V, 50pF
• Logic-Type Inverter
• Logic-Level-Low 0.5 V ~ 0.6 V
• Logic-Level-High 1.9 V ~ 2.1 V
