M74HC03RM13TR

M74HC03RM13TR Overview

Product belongs to the 74HC series. Digi-ReelR Alternate Packaging is the packaging method for this product 14-SOIC (0.154", 3.90mm Width) Operational temperature range: -55°C ~ 125°C Surface Mount mounting type Voltage Supply Range: 2 V ~ 6 V Supplier device package: 14-SO 4 is 8. 1μA maximum quiescent current. NAND Gate logic type 0.5 V ~ 1.8 V is a Logic-Level-Low; 1.5 V ~ 4.2 V is the Logic-Level-High

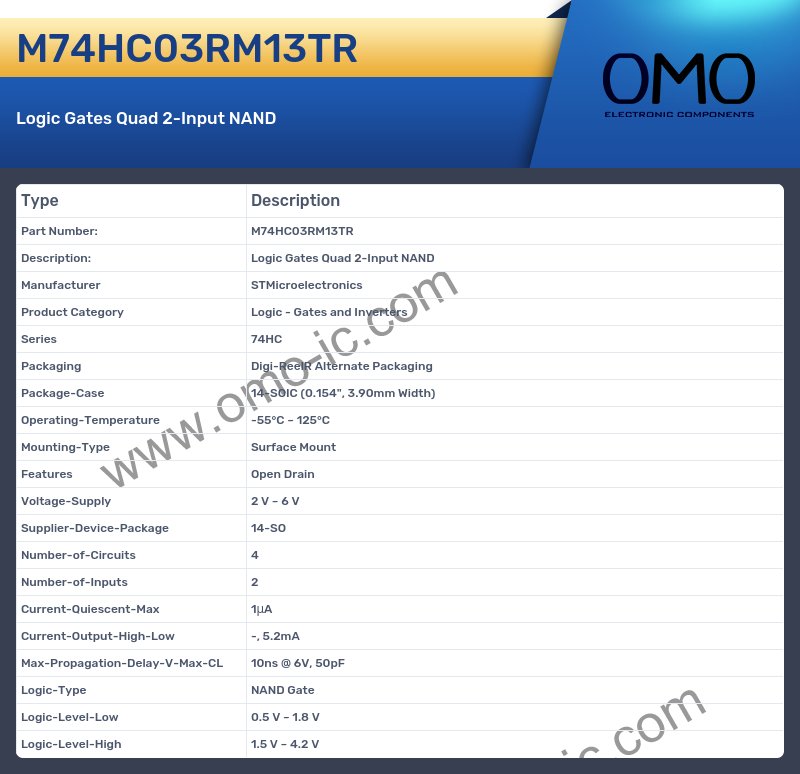

M74HC03RM13TR Image

M74HC03RM13TR Specifications

• Manufacturer STMicroelectronics
• Product Category Logic - Gates and Inverters
• Series 74HC
• Packaging Digi-ReelR Alternate Packaging
• Package-Case 14-SOIC (0.154", 3.90mm Width)
• Operating-Temperature -55°C ~ 125°C
• Mounting-Type Surface Mount
• Features Open Drain
• Voltage-Supply 2 V ~ 6 V
• Supplier-Device-Package 14-SO
• Number-of-Circuits 4
• Number-of-Inputs 2
• Current-Quiescent-Max 1μA
• Current-Output-High-Low -, 5.2mA
• Max-Propagation-Delay-V-Max-CL 10ns @ 6V, 50pF
• Logic-Type NAND Gate
• Logic-Level-Low 0.5 V ~ 1.8 V
• Logic-Level-High 1.5 V ~ 4.2 V

M74HC03RM13TR FAQ

• A: Is the cutoff frequency of the product Series?

  Q: Yes, the product's Series is indeed 74HC

• A: At what frequency does the Packaging?

  Q: The product Packaging is Digi-ReelR Alternate Packaging.

• A: At what frequency does the Package-Case?

  Q: The product Package-Case is 14-SOIC (0.154", 3.90mm Width).

• A: Is the cutoff frequency of the product Operating-Temperature?

  Q: Yes, the product's Operating-Temperature is indeed -55°C ~ 125°C

• A: What is the Mounting-Type of the product?

  Q: The Mounting-Type of the product is Surface Mount.

• A: Is the cutoff frequency of the product Voltage-Supply?

  Q: Yes, the product's Voltage-Supply is indeed 2 V ~ 6 V

• A: What is the Supplier-Device-Package of the product?

  Q: The Supplier-Device-Package of the product is 14-SO.

• A: At what frequency does the Number-of-Circuits?

  Q: The product Number-of-Circuits is 4.

• A: Is the cutoff frequency of the product Current-Quiescent-Max?

  Q: Yes, the product's Current-Quiescent-Max is indeed 1μA

• A: Is the cutoff frequency of the product Logic-Type?

  Q: Yes, the product's Logic-Type is indeed NAND Gate

• A: What is the Logic-Level-Low of the product?

  Q: The Logic-Level-Low of the product is 0.5 V ~ 1.8 V.

• A: What is the Logic-Level-High of the product?

  Q: The Logic-Level-High of the product is 1.5 V ~ 4.2 V.
