LP2989AILD-3.0/NOPB

LP2989AILD-3.0/NOPB Overview

Product belongs to the LP2989 series. This product is categorized as Micropower Low-Noise Ultra Low-Dropout Regulator Type: Precision LDO Voltage Regulator Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.000384 oz SMD/SMT Mounting-Style WSON-8 Operational temperature range: -40°C ~ 125°C Surface Mount mounting type Output-Type: Fixed Supplier device package: 8-WSON (4x4) Tolerance of 2.5 % Up to 16V voltage input Number-of-Outputs: 1 Output Output voltage: 3V Positive Fixed regulator topology The product has 1 of 1. Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Output voltage: 3 V Maximum Input Voltage: 16 V Output current: 0.5 A The product's 2.1 V is 5.1 V. Load regulation is 0.4 %. The voltage regulation accuracy of this product is +/- 0.75 %. Input bias current of 110 uA The 0.001 V at 0.1 mA 0.15 V at 200 mA 0.31 V at 500 mA. The maximum 0.003 V at 0.1 mA 0.2 V at 200 mA 0.425 V at 500 mA is 360 mV. This product's 0.014 %/V is 0.01 %/V. The product's 60 dB is -20 dB.

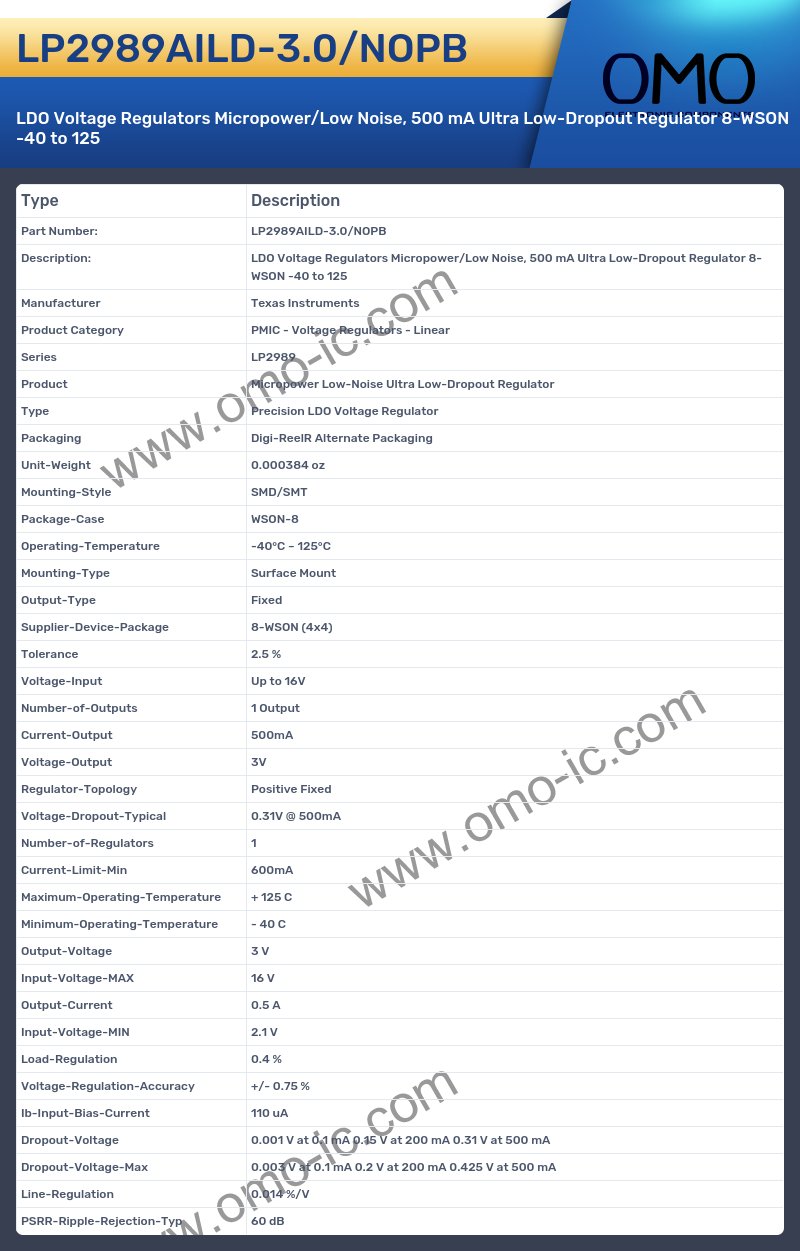

LP2989AILD-3.0/NOPB Image

LP2989AILD-3.0/NOPB Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Voltage Regulators - Linear
• Series LP2989
• Product Micropower Low-Noise Ultra Low-Dropout Regulator
• Type Precision LDO Voltage Regulator
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.000384 oz
• Mounting-Style SMD/SMT
• Package-Case WSON-8
• Operating-Temperature -40°C ~ 125°C
• Mounting-Type Surface Mount
• Output-Type Fixed
• Supplier-Device-Package 8-WSON (4x4)
• Tolerance 2.5 %
• Voltage-Input Up to 16V
• Number-of-Outputs 1 Output
• Current-Output 500mA
• Voltage-Output 3V
• Regulator-Topology Positive Fixed
• Voltage-Dropout-Typical 0.31V @ 500mA
• Number-of-Regulators 1
• Current-Limit-Min 600mA
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Output-Voltage 3 V
• Input-Voltage-MAX 16 V
• Output-Current 0.5 A
• Input-Voltage-MIN 2.1 V
• Load-Regulation 0.4 %
• Voltage-Regulation-Accuracy +/- 0.75 %
• Ib-Input-Bias-Current 110 uA
• Dropout-Voltage 0.001 V at 0.1 mA 0.15 V at 200 mA 0.31 V at 500 mA
• Dropout-Voltage-Max 0.003 V at 0.1 mA 0.2 V at 200 mA 0.425 V at 500 mA
• Line-Regulation 0.014 %/V
• PSRR-Ripple-Rejection-Typ 60 dB
