LM2940T-10.0/NOPB

LM2940T-10.0/NOPB Overview

Product belongs to the LM2940-N series. Tube is the packaging method for this product Weight of 0.211644 oz Through Hole Mounting-Style TO-220-3 Operational temperature range: -40°C ~ 125°C Through Hole mounting type Output-Type: Fixed Supplier device package: TO-220-3 11.5 V ~ 26 V voltage input Number-of-Outputs: 1 Output Output voltage: 10V Positive Fixed regulator topology The product has 1 of 1. Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Output voltage: 10 V Maximum Input Voltage: 26 V Output current: 1 A (Typ) The product's 11.5 V is 5.1 V. Load regulation is 100 mV. Input bias current of 10 mA This product has a 15 mA of 7 mA, making it ideal for low-power applications. The 0.5 V at 1 A 0.11 V at 100 mA. The maximum 0.8 V at 1A 0.15 V at 100 mA is 360 mV. This product's 100 mV is 0.01 %/V.

LM2940T-10.0/NOPB Image

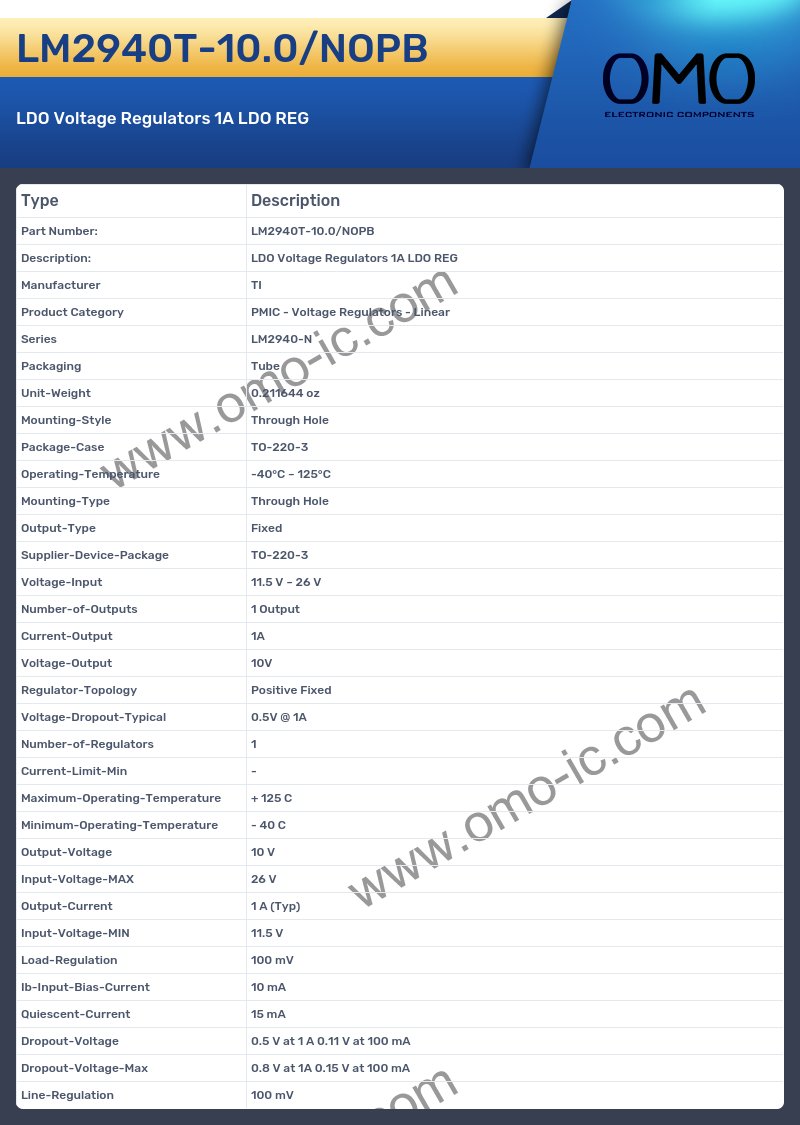

LM2940T-10.0/NOPB Specifications

• Manufacturer TI
• Product Category PMIC - Voltage Regulators - Linear
• Series LM2940-N
• Packaging Tube
• Unit-Weight 0.211644 oz
• Mounting-Style Through Hole
• Package-Case TO-220-3
• Operating-Temperature -40°C ~ 125°C
• Mounting-Type Through Hole
• Output-Type Fixed
• Supplier-Device-Package TO-220-3
• Voltage-Input 11.5 V ~ 26 V
• Number-of-Outputs 1 Output
• Current-Output 1A
• Voltage-Output 10V
• Regulator-Topology Positive Fixed
• Voltage-Dropout-Typical 0.5V @ 1A
• Number-of-Regulators 1
• Current-Limit-Min -
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Output-Voltage 10 V
• Input-Voltage-MAX 26 V
• Output-Current 1 A (Typ)
• Input-Voltage-MIN 11.5 V
• Load-Regulation 100 mV
• Ib-Input-Bias-Current 10 mA
• Quiescent-Current 15 mA
• Dropout-Voltage 0.5 V at 1 A 0.11 V at 100 mA
• Dropout-Voltage-Max 0.8 V at 1A 0.15 V at 100 mA
• Line-Regulation 100 mV
