LM224PT

LM224PT Overview

Product belongs to the LM224 series. This product is categorized as Operational Amplifiers Tube is the packaging method for this product Weight of 0.004949 oz SMD/SMT Mounting-Style Bipolar is the technology used. Number of channels: 4 Channel The amplifier is of Low Power Amplifier type. Power-off control: No Shutdown Maximum operating temperature of + 105 C Minimum operating temperature: - 40 C 1.2 mA is 92 nA. Maximum supply voltage of 30 V Minimum supply voltage is 3 V TSSOP-14 Input bias current of 150 nA The 5 mV. 40 mA The CMRR-Common-Mode-Rejection-Ratio is 70 dB. The 40 nV/sqrt Hz of this product is 110 nV/sqrt Hz. Maximum dual supply voltage: +/- 15 V Minimum dual supply voltage of +/- 1.5 V

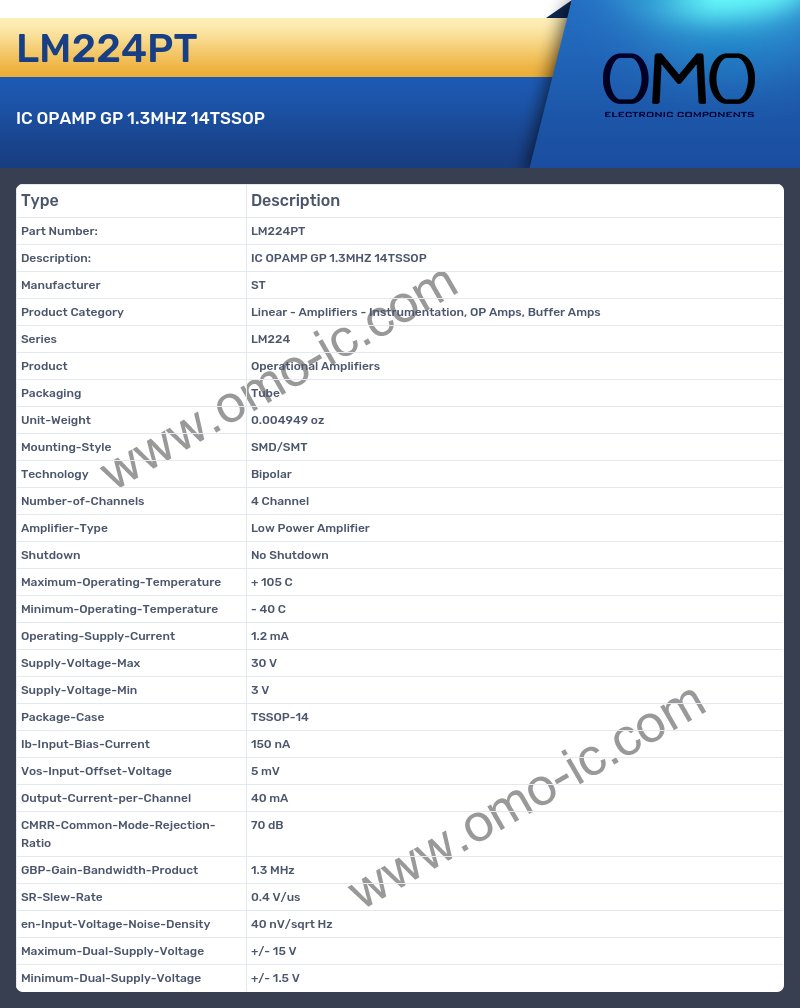

LM224PT Image

LM224PT Specifications

• Manufacturer ST
• Product Category Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
• Series LM224
• Product Operational Amplifiers
• Packaging Tube
• Unit-Weight 0.004949 oz
• Mounting-Style SMD/SMT
• Technology Bipolar
• Number-of-Channels 4 Channel
• Amplifier-Type Low Power Amplifier
• Shutdown No Shutdown
• Maximum-Operating-Temperature + 105 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Current 1.2 mA
• Supply-Voltage-Max 30 V
• Supply-Voltage-Min 3 V
• Package-Case TSSOP-14
• Ib-Input-Bias-Current 150 nA
• Vos-Input-Offset-Voltage 5 mV
• Output-Current-per-Channel 40 mA
• CMRR-Common-Mode-Rejection-Ratio 70 dB
• GBP-Gain-Bandwidth-Product 1.3 MHz
• SR-Slew-Rate 0.4 V/us
• en-Input-Voltage-Noise-Density 40 nV/sqrt Hz
• Maximum-Dual-Supply-Voltage +/- 15 V
• Minimum-Dual-Supply-Voltage +/- 1.5 V
