LK115D50-TR

LK115D50-TR Overview

Product belongs to the LK115 series. Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.017870 oz SMD/SMT Mounting-Style SO-8 Operational temperature range: -40°C ~ 125°C Surface Mount mounting type Output-Type: Fixed Supplier device package: 8-SO Up to 20V voltage input Number-of-Outputs: 1 Output Output voltage: 5V Positive Fixed regulator topology The product has 1 of 1. Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Output voltage: 5 V Maximum Input Voltage: 20 V Output current: 200 mA The product's + 4.3 V is 5.1 V. Load regulation is 20 mV. The voltage regulation accuracy of this product is 3 %. Input bias current of 280 uA This product has a 500 uA of 7 mA, making it ideal for low-power applications. The 0.17 V at 60 mA. The maximum 170 mV is 360 mV. This product's 15 mV is 0.01 %/V.

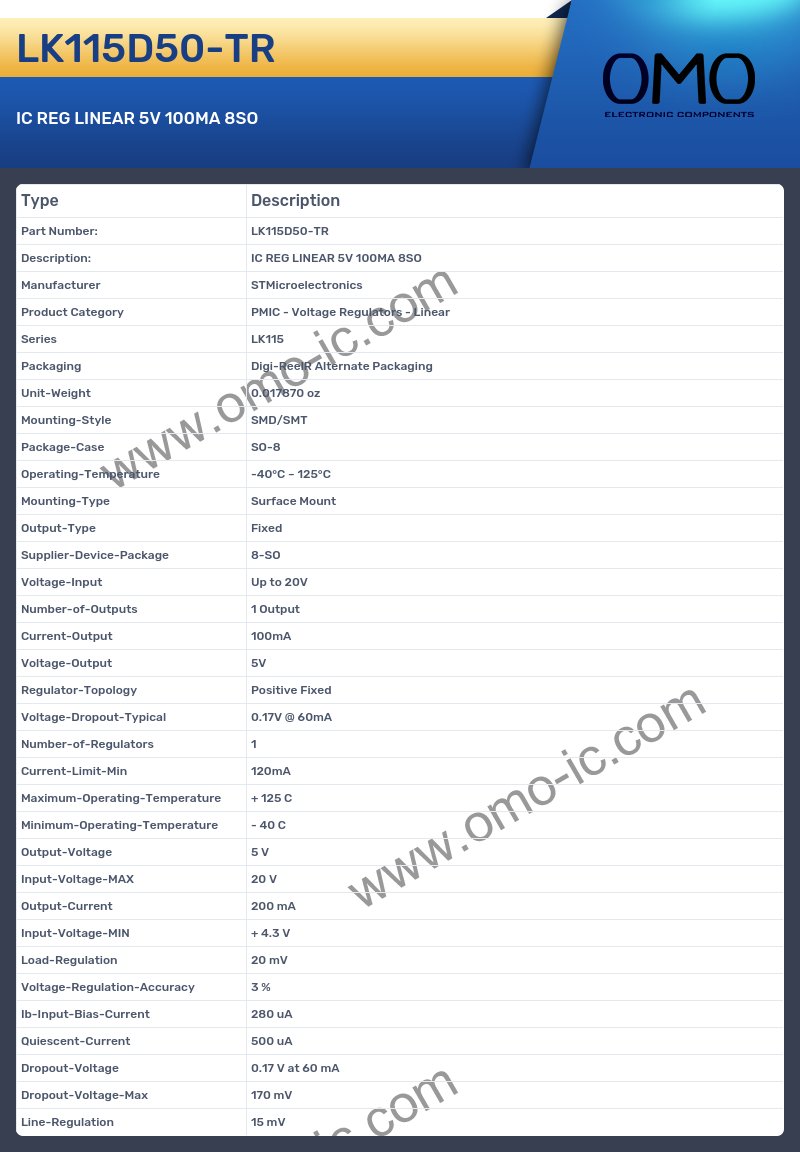

LK115D50-TR Image

LK115D50-TR Specifications

• Manufacturer STMicroelectronics
• Product Category PMIC - Voltage Regulators - Linear
• Series LK115
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.017870 oz
• Mounting-Style SMD/SMT
• Package-Case SO-8
• Operating-Temperature -40°C ~ 125°C
• Mounting-Type Surface Mount
• Output-Type Fixed
• Supplier-Device-Package 8-SO
• Voltage-Input Up to 20V
• Number-of-Outputs 1 Output
• Current-Output 100mA
• Voltage-Output 5V
• Regulator-Topology Positive Fixed
• Voltage-Dropout-Typical 0.17V @ 60mA
• Number-of-Regulators 1
• Current-Limit-Min 120mA
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Output-Voltage 5 V
• Input-Voltage-MAX 20 V
• Output-Current 200 mA
• Input-Voltage-MIN + 4.3 V
• Load-Regulation 20 mV
• Voltage-Regulation-Accuracy 3 %
• Ib-Input-Bias-Current 280 uA
• Quiescent-Current 500 uA
• Dropout-Voltage 0.17 V at 60 mA
• Dropout-Voltage-Max 170 mV
• Line-Regulation 15 mV
