LDK220M-R

LDK220M-R Overview

Product belongs to the LDK220M series. This product is categorized as Low Noise Low Dropout Regulators Type: LDO Voltage Regulator Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.001058 oz SMD/SMT Mounting-Style SOT-23-5 Operational temperature range: -40°C ~ 125°C Surface Mount mounting type Output-Type: Adjustable Supplier device package: SOT-23-5 2.5 V ~ 13.2 V voltage input Number-of-Outputs: 1 Output Output voltage: Adjustable Positive Adjustable regulator topology The product has 1 of 1. Power-off control: 500 mW Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Output voltage: Adj Maximum Input Voltage: 13.2 V Output current: 200 mA The product's 2.5 V is 5.1 V. Load regulation is 0.001 % / mA. The 100 mV. The maximum 350 mV is 360 mV. This product's 0.001 %/V is 0.01 %/V. This product has an 200 mV to 12 V of 2.7 V to 5.5 V.

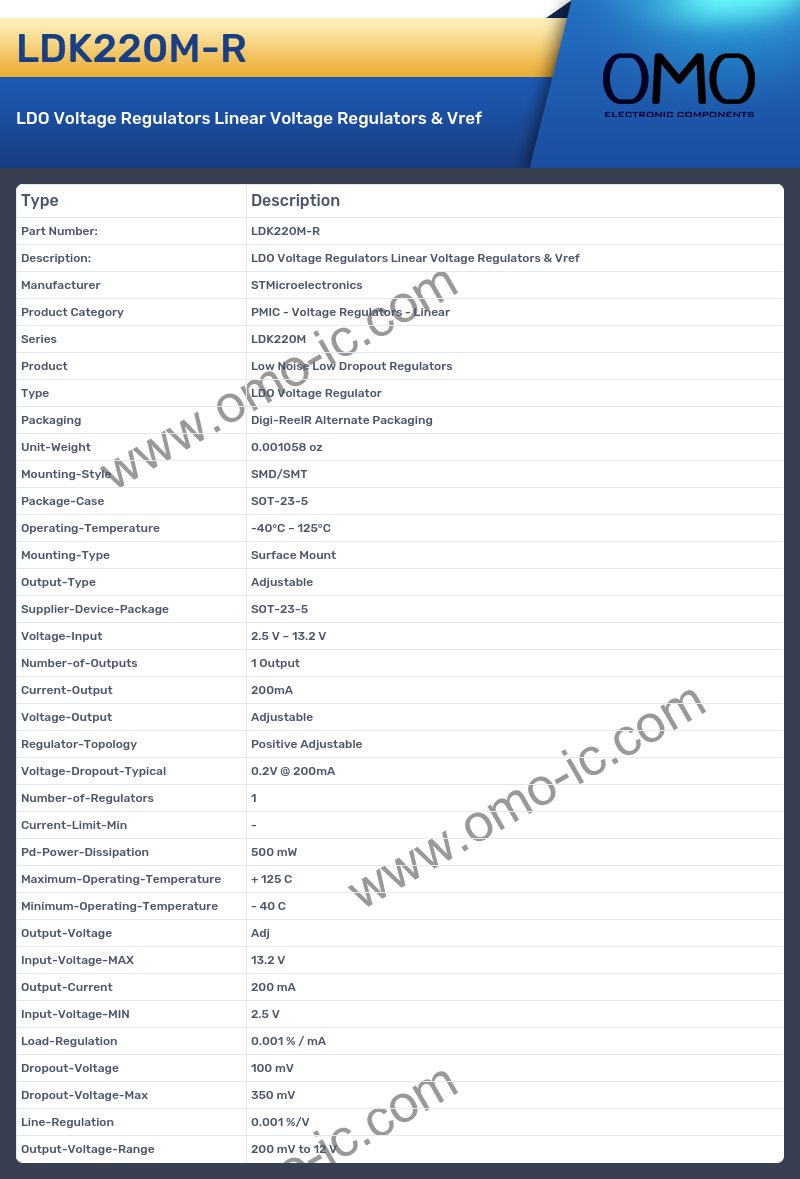

LDK220M-R Image

LDK220M-R Specifications

• Manufacturer STMicroelectronics
• Product Category PMIC - Voltage Regulators - Linear
• Series LDK220M
• Product Low Noise Low Dropout Regulators
• Type LDO Voltage Regulator
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.001058 oz
• Mounting-Style SMD/SMT
• Package-Case SOT-23-5
• Operating-Temperature -40°C ~ 125°C
• Mounting-Type Surface Mount
• Output-Type Adjustable
• Supplier-Device-Package SOT-23-5
• Voltage-Input 2.5 V ~ 13.2 V
• Number-of-Outputs 1 Output
• Current-Output 200mA
• Voltage-Output Adjustable
• Regulator-Topology Positive Adjustable
• Voltage-Dropout-Typical 0.2V @ 200mA
• Number-of-Regulators 1
• Current-Limit-Min -
• Pd-Power-Dissipation 500 mW
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Output-Voltage Adj
• Input-Voltage-MAX 13.2 V
• Output-Current 200 mA
• Input-Voltage-MIN 2.5 V
• Load-Regulation 0.001 % / mA
• Dropout-Voltage 100 mV
• Dropout-Voltage-Max 350 mV
• Line-Regulation 0.001 %/V
• Output-Voltage-Range 200 mV to 12 V
