LD29300P2M33R

LD29300P2M33R Overview

Product belongs to the LD29300P2M series. Digi-ReelR is the packaging method for this product Weight of 0.079014 oz SMD/SMT Mounting-Style D2PAK-3 Operational temperature range: -40°C ~ 125°C Surface Mount mounting type Output-Type: Fixed Supplier device package: P2PAK-4 Up to 14V voltage input Number-of-Outputs: 1 Output Output voltage: 3.3V Positive Fixed regulator topology The product has 1 of 1. Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Output voltage: 3.3 V Maximum Input Voltage: 30 V Output current: 3 A The product's + 2.5 V is 5.1 V. Load regulation is 1 %. The voltage regulation accuracy of this product is 1 %. Input bias current of 20 mA This product has a 50 mA of 7 mA, making it ideal for low-power applications. The 0.1 V at 500 mA. The maximum 700 mV at 3 A is 360 mV. This product's 0.5 % is 0.01 %/V.

LD29300P2M33R Image

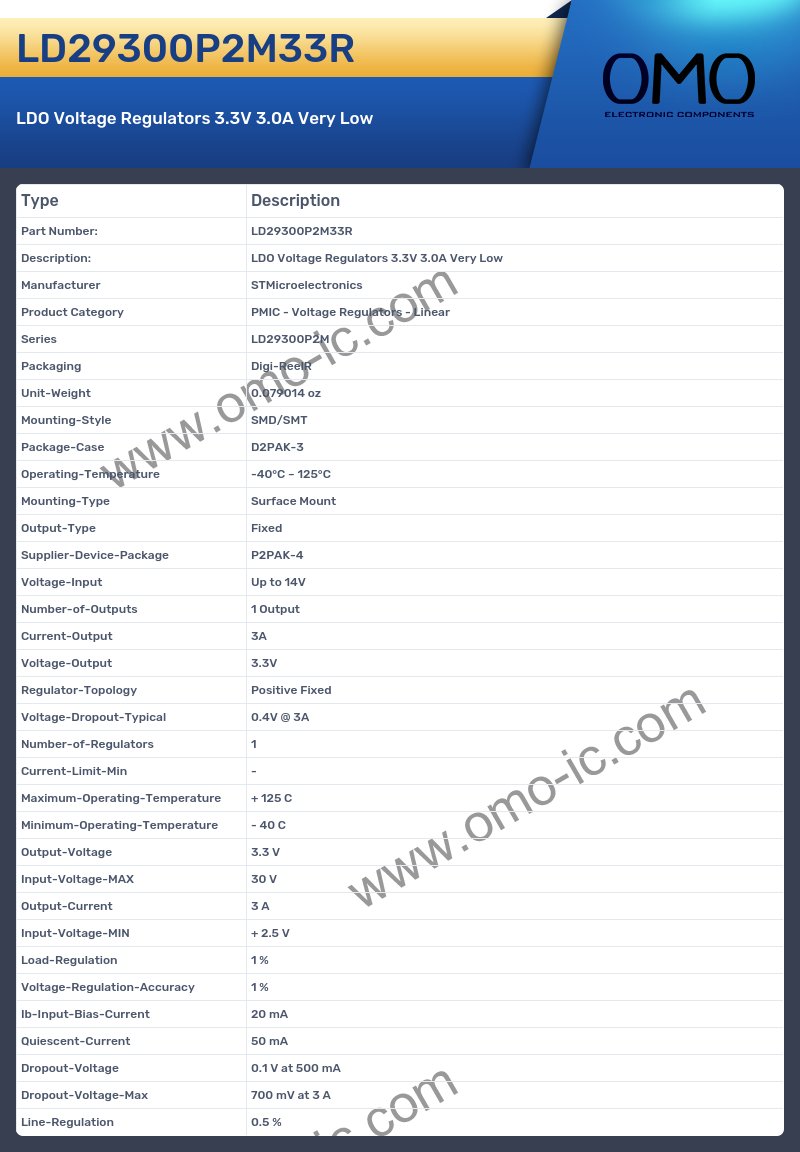

LD29300P2M33R Specifications

• Manufacturer STMicroelectronics
• Product Category PMIC - Voltage Regulators - Linear
• Series LD29300P2M
• Packaging Digi-ReelR
• Unit-Weight 0.079014 oz
• Mounting-Style SMD/SMT
• Package-Case D2PAK-3
• Operating-Temperature -40°C ~ 125°C
• Mounting-Type Surface Mount
• Output-Type Fixed
• Supplier-Device-Package P2PAK-4
• Voltage-Input Up to 14V
• Number-of-Outputs 1 Output
• Current-Output 3A
• Voltage-Output 3.3V
• Regulator-Topology Positive Fixed
• Voltage-Dropout-Typical 0.4V @ 3A
• Number-of-Regulators 1
• Current-Limit-Min -
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Output-Voltage 3.3 V
• Input-Voltage-MAX 30 V
• Output-Current 3 A
• Input-Voltage-MIN + 2.5 V
• Load-Regulation 1 %
• Voltage-Regulation-Accuracy 1 %
• Ib-Input-Bias-Current 20 mA
• Quiescent-Current 50 mA
• Dropout-Voltage 0.1 V at 500 mA
• Dropout-Voltage-Max 700 mV at 3 A
• Line-Regulation 0.5 %
