LD29150PTR

LD29150PTR Overview

Product belongs to the LD29150PT series. Digi-ReelR Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style PPAK-5 Operational temperature range: -40°C ~ 125°C Surface Mount mounting type Output-Type: Adjustable Supplier device package: PPAK 2.5 V ~ 14 V voltage input Number-of-Outputs: 1 Output Output voltage: 3.2 V ~ 20 V Positive Adjustable regulator topology The product has 1 of 1. Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Output voltage: 1.5 V to 15 V Maximum Input Voltage: 30 V Output current: 1.5 A The product's + 2.5 V is 5.1 V. Load regulation is 1 %. The voltage regulation accuracy of this product is 1 %. Input bias current of 15 mA This product has a 40 mA of 7 mA, making it ideal for low-power applications. Reference voltage is 1.2423 V . The 0.1 V at 250 mA. The maximum 700 mV at 1.5 A is 360 mV. This product's 0.5 % is 0.01 %/V.

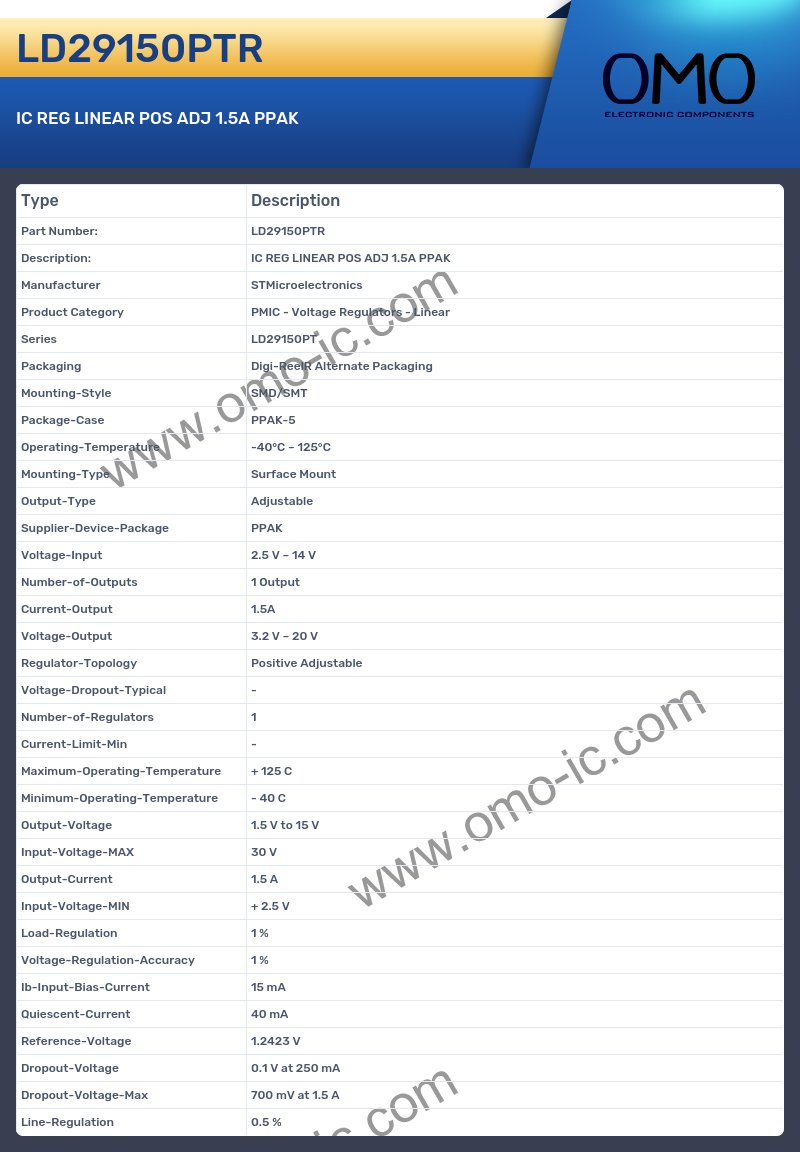

LD29150PTR Image

LD29150PTR Specifications

• Manufacturer STMicroelectronics
• Product Category PMIC - Voltage Regulators - Linear
• Series LD29150PT
• Packaging Digi-ReelR Alternate Packaging
• Mounting-Style SMD/SMT
• Package-Case PPAK-5
• Operating-Temperature -40°C ~ 125°C
• Mounting-Type Surface Mount
• Output-Type Adjustable
• Supplier-Device-Package PPAK
• Voltage-Input 2.5 V ~ 14 V
• Number-of-Outputs 1 Output
• Current-Output 1.5A
• Voltage-Output 3.2 V ~ 20 V
• Regulator-Topology Positive Adjustable
• Voltage-Dropout-Typical -
• Number-of-Regulators 1
• Current-Limit-Min -
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Output-Voltage 1.5 V to 15 V
• Input-Voltage-MAX 30 V
• Output-Current 1.5 A
• Input-Voltage-MIN + 2.5 V
• Load-Regulation 1 %
• Voltage-Regulation-Accuracy 1 %
• Ib-Input-Bias-Current 15 mA
• Quiescent-Current 40 mA
• Reference-Voltage 1.2423 V
• Dropout-Voltage 0.1 V at 250 mA
• Dropout-Voltage-Max 700 mV at 1.5 A
• Line-Regulation 0.5 %
