L9820D013TR

L9820D013TR Overview

Product belongs to the L9820D series. Type: High Side Driver Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.004395 oz SMD/SMT Mounting-Style SO-8 The Non-Inverting for this product is CMOS/TTL. Operational temperature range: -40°C ~ 85°C (TJ) Output-Type: - Interface: On/Off Supplier device package: 8-SO The Ratio-Input:Output for this product is 1899/12/30 1:01:00. Number-of-Outputs: 1 Supply Voltage: Not Required The High Side. The 600 mOhm. Voltage-Load range is 6 V ~ 25 V. Our product delivers a 300mA of 50mA for efficient power management. The Switch-Type is General Purpose. Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C 4 mA is 92 nA. This product has a 100 us of 16 ns. This product has a 100 us of 16 ns. Maximum supply voltage of 25 V Number-of-Drivers: 1 Driver This product has a Maximum-Turn-Off-Delay-Time of 80 us. 30 us maximum turn-on delay time

L9820D013TR Image

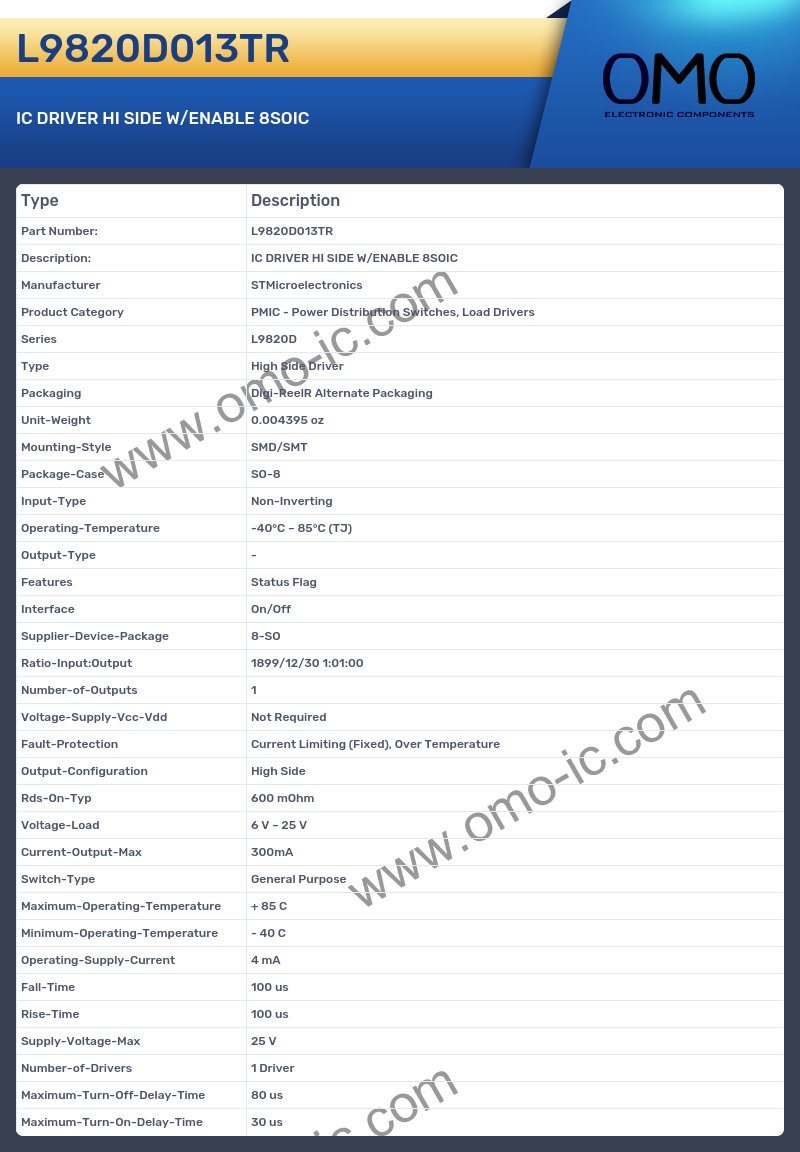

L9820D013TR Specifications

• Manufacturer STMicroelectronics
• Product Category PMIC - Power Distribution Switches, Load Drivers
• Series L9820D
• Type High Side Driver
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.004395 oz
• Mounting-Style SMD/SMT
• Package-Case SO-8
• Input-Type Non-Inverting
• Operating-Temperature -40°C ~ 85°C (TJ)
• Output-Type -
• Features Status Flag
• Interface On/Off
• Supplier-Device-Package 8-SO
• Ratio-Input:Output 1899/12/30 1:01:00
• Number-of-Outputs 1
• Voltage-Supply-Vcc-Vdd Not Required
• Fault-Protection Current Limiting (Fixed), Over Temperature
• Output-Configuration High Side
• Rds-On-Typ 600 mOhm
• Voltage-Load 6 V ~ 25 V
• Current-Output-Max 300mA
• Switch-Type General Purpose
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Current 4 mA
• Fall-Time 100 us
• Rise-Time 100 us
• Supply-Voltage-Max 25 V
• Number-of-Drivers 1 Driver
• Maximum-Turn-Off-Delay-Time 80 us
• Maximum-Turn-On-Delay-Time 30 us
