L9349TR-LF

L9349TR-LF Overview

Product belongs to the L9349 series. Tape & Reel (TR) Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style PowerSO-22 The Non-Inverting for this product is CMOS/TTL. Operational temperature range: -40°C ~ 150°C (TJ) Output-Type: N-Channel Interface: On/Off Supplier device package: PowerSO-20 The Ratio-Input:Output for this product is 1899/12/30 1:01:00. Number-of-Outputs: 4 Supply Voltage: Not Required The Low Side. The 200 mOhm, 300 mOhm. Voltage-Load range is 4.5 V ~ 32 V. Our product delivers a 3A, 5A of 50mA for efficient power management. The Switch-Type is General Purpose. Maximum operating temperature of + 210 C Minimum operating temperature: - 40 C Output current: 5 A 3 A Max on-resistance of 0.3 Ohms

L9349TR-LF Image

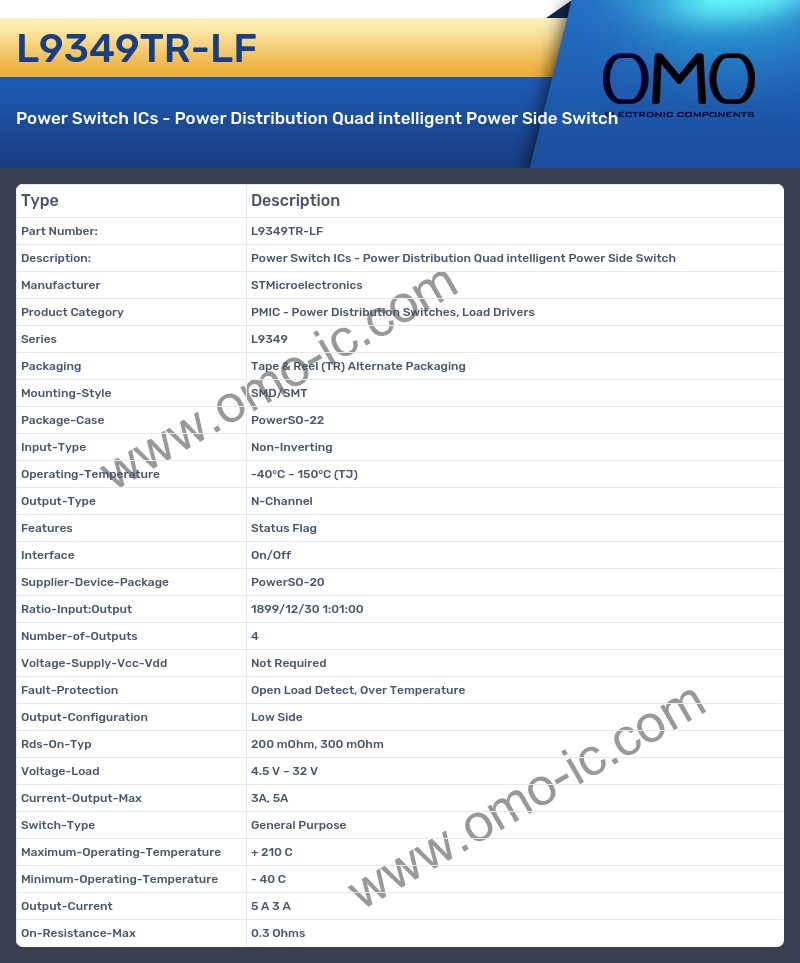

L9349TR-LF Specifications

• Manufacturer STMicroelectronics
• Product Category PMIC - Power Distribution Switches, Load Drivers
• Series L9349
• Packaging Tape & Reel (TR) Alternate Packaging
• Mounting-Style SMD/SMT
• Package-Case PowerSO-22
• Input-Type Non-Inverting
• Operating-Temperature -40°C ~ 150°C (TJ)
• Output-Type N-Channel
• Features Status Flag
• Interface On/Off
• Supplier-Device-Package PowerSO-20
• Ratio-Input:Output 1899/12/30 1:01:00
• Number-of-Outputs 4
• Voltage-Supply-Vcc-Vdd Not Required
• Fault-Protection Open Load Detect, Over Temperature
• Output-Configuration Low Side
• Rds-On-Typ 200 mOhm, 300 mOhm
• Voltage-Load 4.5 V ~ 32 V
• Current-Output-Max 3A, 5A
• Switch-Type General Purpose
• Maximum-Operating-Temperature + 210 C
• Minimum-Operating-Temperature - 40 C
• Output-Current 5 A 3 A
• On-Resistance-Max 0.3 Ohms
