L7981TR Overview

Product belongs to the L7981 series. Type: Voltage Converter Digi-ReelR Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style Wide - 40 C to + 150 C operating temperature range for diverse applications VFDFPN-8 Operational temperature range: -40°C ~ 150°C (TJ) Surface Mount mounting type Output-Type: Adjustable Product function is Step-Down. Supplier device package: 8-VFQFPN (3x3) Number-of-Outputs: 1 Topology: Buck feedback This product features 'Frequency-Switching' at 250kHz ~ 1MHz for optimal performance. The Positive. Minimum fixed output voltage is 0.6V . The value of No is included as a product attribute. The minimum input voltage is 4.5V. The 28V. Power-off control: Shutdown Maximum operating temperature of + 150 C Minimum operating temperature: - 40 C Output voltage: Adj 16 mA is 92 nA. Input Voltage Range: 4.5 V to 28 V Maximum Input Voltage: 28 V Output current: 3 A Switching frequency is 250 kHz The product's 4.5 V is 5.1 V. Minimum supply voltage is 4.5 V

L7981TR Image

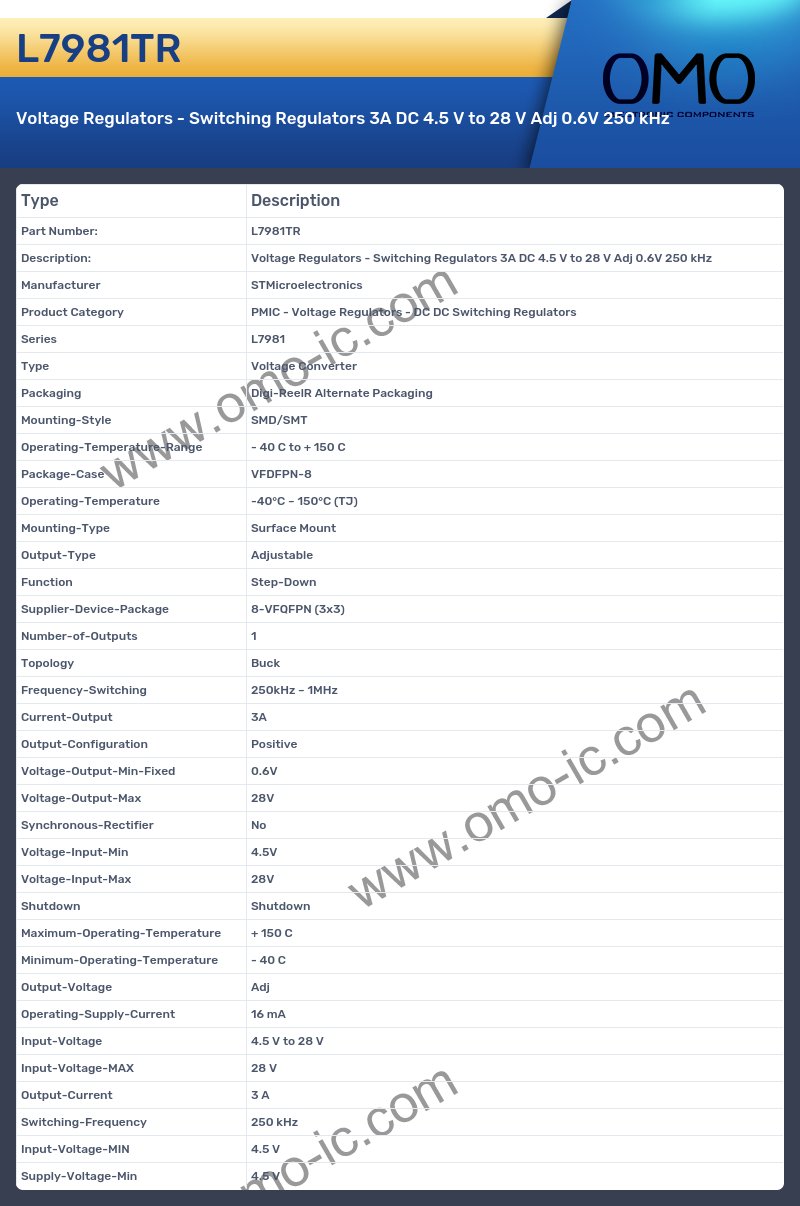

L7981TR Specifications

• Manufacturer STMicroelectronics
• Product Category PMIC - Voltage Regulators - DC DC Switching Regulators
• Series L7981
• Type Voltage Converter
• Packaging Digi-ReelR Alternate Packaging
• Mounting-Style SMD/SMT
• Operating-Temperature-Range - 40 C to + 150 C
• Package-Case VFDFPN-8
• Operating-Temperature -40°C ~ 150°C (TJ)
• Mounting-Type Surface Mount
• Output-Type Adjustable
• Function Step-Down
• Supplier-Device-Package 8-VFQFPN (3x3)
• Number-of-Outputs 1
• Topology Buck
• Frequency-Switching 250kHz ~ 1MHz
• Current-Output 3A
• Output-Configuration Positive
• Voltage-Output-Min-Fixed 0.6V
• Voltage-Output-Max 28V
• Synchronous-Rectifier No
• Voltage-Input-Min 4.5V
• Voltage-Input-Max 28V
• Shutdown Shutdown
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature - 40 C
• Output-Voltage Adj
• Operating-Supply-Current 16 mA
• Input-Voltage 4.5 V to 28 V
• Input-Voltage-MAX 28 V
• Output-Current 3 A
• Switching-Frequency 250 kHz
• Input-Voltage-MIN 4.5 V
• Supply-Voltage-Min 4.5 V
