L78M15ABV

L78M15ABV Overview

Product belongs to the L78M15AB series. Tube is the packaging method for this product Weight of 0.081130 oz Through Hole Mounting-Style TO-220 Operational temperature range: -40°C ~ 125°C Through Hole mounting type Output-Type: Fixed Supplier device package: TO-220AB Up to 35V voltage input Number-of-Outputs: 1 Output voltage: 15V Positive Fixed regulator topology The product has 1 of 1. Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Polarity: Positive Output voltage: 15 V Maximum Input Voltage: 35 V Output current: 500 mA The product's 17 V is 5.1 V. Load regulation is 300 mV. This product's 100 mV is 0.01 %/V. The product's 54 dB is -20 dB.

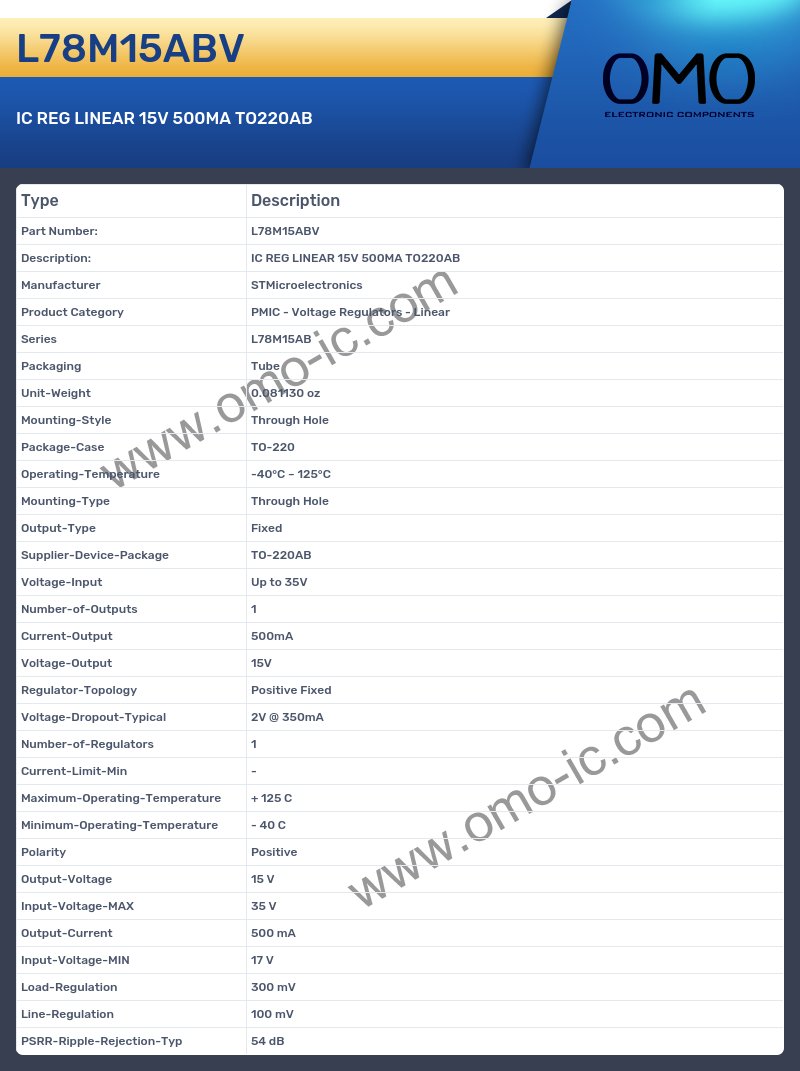

L78M15ABV Image

L78M15ABV Specifications

• Manufacturer STMicroelectronics
• Product Category PMIC - Voltage Regulators - Linear
• Series L78M15AB
• Packaging Tube
• Unit-Weight 0.081130 oz
• Mounting-Style Through Hole
• Package-Case TO-220
• Operating-Temperature -40°C ~ 125°C
• Mounting-Type Through Hole
• Output-Type Fixed
• Supplier-Device-Package TO-220AB
• Voltage-Input Up to 35V
• Number-of-Outputs 1
• Current-Output 500mA
• Voltage-Output 15V
• Regulator-Topology Positive Fixed
• Voltage-Dropout-Typical 2V @ 350mA
• Number-of-Regulators 1
• Current-Limit-Min -
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Polarity Positive
• Output-Voltage 15 V
• Input-Voltage-MAX 35 V
• Output-Current 500 mA
• Input-Voltage-MIN 17 V
• Load-Regulation 300 mV
• Line-Regulation 100 mV
• PSRR-Ripple-Rejection-Typ 54 dB
