L6932D1.2

L6932D1.2 Overview

Product belongs to the L6932 series. Cut Tape (CT) Alternate Packaging is the packaging method for this product Weight of 0.017870 oz SMD/SMT Mounting-Style SO-8 Operational temperature range: -25°C ~ 125°C Surface Mount mounting type Output-Type: Adjustable Supplier device package: 8-SO 2 V ~ 14 V voltage input Number-of-Outputs: 1 Output Output voltage: 1.2V Positive Fixed regulator topology The product has 1 of 1. Maximum operating temperature of + 150 C Minimum operating temperature: - 65 C Output voltage: Adj Maximum Input Voltage: 14 V Output current: 2 A The product's 2 V is 5.1 V. Load regulation is 15 mV. The voltage regulation accuracy of this product is 1 %. Input bias current of 200 uA The maximum 1.5 V is 360 mV. This product's 5 mV is 0.01 %/V. The product's 75 dB is -20 dB. This product has an 1.2 V to 5 V of 2.7 V to 5.5 V.

L6932D1.2 Image

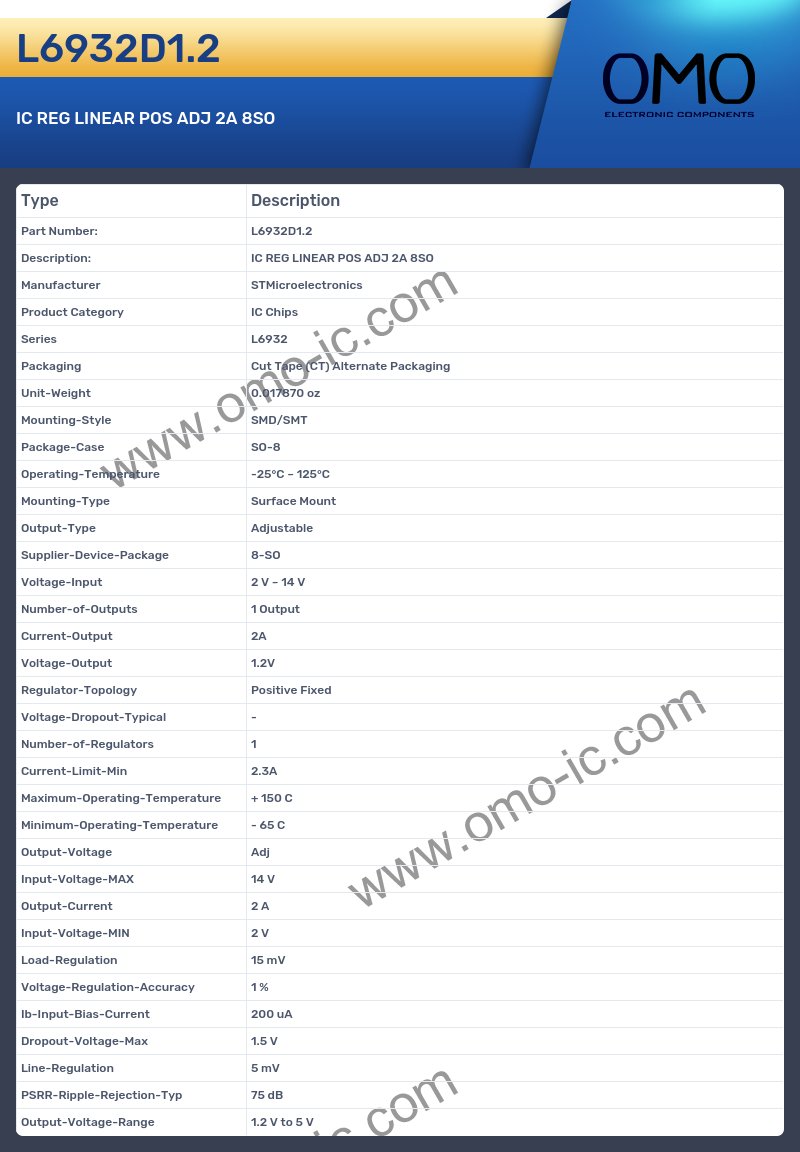

L6932D1.2 Specifications

• Manufacturer STMicroelectronics
• Product Category IC Chips
• Series L6932
• Packaging Cut Tape (CT) Alternate Packaging
• Unit-Weight 0.017870 oz
• Mounting-Style SMD/SMT
• Package-Case SO-8
• Operating-Temperature -25°C ~ 125°C
• Mounting-Type Surface Mount
• Output-Type Adjustable
• Supplier-Device-Package 8-SO
• Voltage-Input 2 V ~ 14 V
• Number-of-Outputs 1 Output
• Current-Output 2A
• Voltage-Output 1.2V
• Regulator-Topology Positive Fixed
• Voltage-Dropout-Typical -
• Number-of-Regulators 1
• Current-Limit-Min 2.3A
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature - 65 C
• Output-Voltage Adj
• Input-Voltage-MAX 14 V
• Output-Current 2 A
• Input-Voltage-MIN 2 V
• Load-Regulation 15 mV
• Voltage-Regulation-Accuracy 1 %
• Ib-Input-Bias-Current 200 uA
• Dropout-Voltage-Max 1.5 V
• Line-Regulation 5 mV
• PSRR-Ripple-Rejection-Typ 75 dB
• Output-Voltage-Range 1.2 V to 5 V
