L6392DTR

L6392DTR Overview

Product belongs to the L6392 series. This product is categorized as Half-Bridge Drivers Type: High Side/Low Side Reel is the packaging method for this product Weight of 259200 mg SMD/SMT Mounting-Style SO-14 Configuration Inverting Non-Inverting Number-of-Outputs: 1 Power-off control: 800 mW Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Output voltage: 580 V 290 mA is 92 nA. This product has a 35 ns of 16 ns. This product has a 75 ns of 16 ns. Maximum supply voltage of 21 V Minimum supply voltage is - 0.3 V Number-of-Drivers: 1 Driver This product has a Maximum-Turn-Off-Delay-Time of 200 ns. 200 ns maximum turn-on delay time

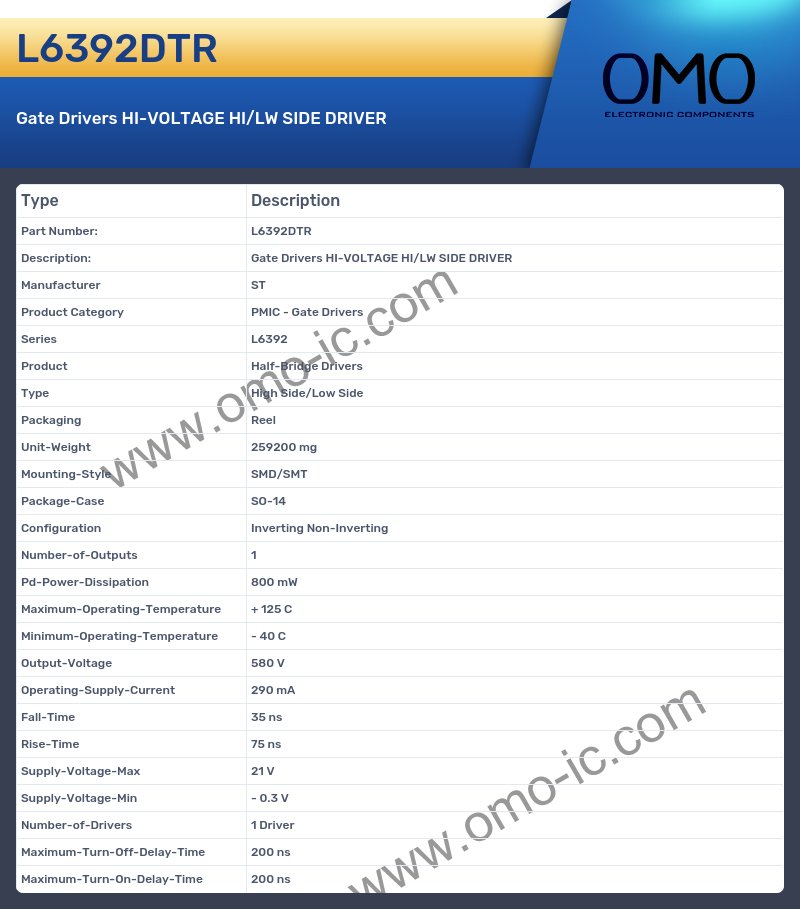

L6392DTR Image

L6392DTR Specifications

• Manufacturer ST
• Product Category PMIC - Gate Drivers
• Series L6392
• Product Half-Bridge Drivers
• Type High Side/Low Side
• Packaging Reel
• Unit-Weight 259200 mg
• Mounting-Style SMD/SMT
• Package-Case SO-14
• Configuration Inverting Non-Inverting
• Number-of-Outputs 1
• Pd-Power-Dissipation 800 mW
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Output-Voltage 580 V
• Operating-Supply-Current 290 mA
• Fall-Time 35 ns
• Rise-Time 75 ns
• Supply-Voltage-Max 21 V
• Supply-Voltage-Min - 0.3 V
• Number-of-Drivers 1 Driver
• Maximum-Turn-Off-Delay-Time 200 ns
• Maximum-Turn-On-Delay-Time 200 ns
