L6391D

L6391D Overview

Product belongs to the L6391 series. This product is categorized as Half-Bridge Drivers Type: High Voltage High and Low Side Driver Tube is the packaging method for this product Weight of 0.009143 oz SMD/SMT Mounting-Style Power-off control: 800 mW Output voltage: - 9 V to + 580 V 100 uA is 92 nA. Output current: 290 mA This product has a 35 ns of 16 ns. This product has a 75 ns of 16 ns. Maximum supply voltage of + 21 V Minimum supply voltage is - 0.3 V SO-14 This product has a Maximum-Turn-Off-Delay-Time of 200 ns. 200 ns maximum turn-on delay time

L6391D Image

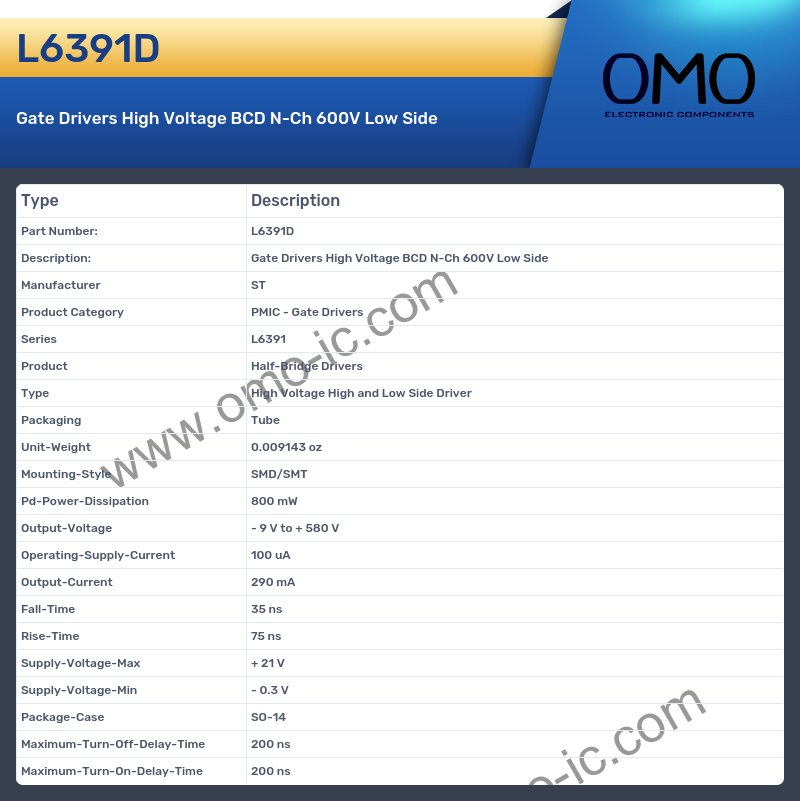

L6391D Specifications

• Manufacturer ST
• Product Category PMIC - Gate Drivers
• Series L6391
• Product Half-Bridge Drivers
• Type High Voltage High and Low Side Driver
• Packaging Tube
• Unit-Weight 0.009143 oz
• Mounting-Style SMD/SMT
• Pd-Power-Dissipation 800 mW
• Output-Voltage - 9 V to + 580 V
• Operating-Supply-Current 100 uA
• Output-Current 290 mA
• Fall-Time 35 ns
• Rise-Time 75 ns
• Supply-Voltage-Max + 21 V
• Supply-Voltage-Min - 0.3 V
• Package-Case SO-14
• Maximum-Turn-Off-Delay-Time 200 ns
• Maximum-Turn-On-Delay-Time 200 ns
