L6390DTR Overview

Product belongs to the L6390 series. This product is categorized as Half-Bridge Drivers Type: High Side/Low Side Tube is the packaging method for this product SMD/SMT Mounting-Style Configuration Inverting Non-Inverting Number-of-Outputs: 1 Power-off control: 800 mW Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C 290 mA is 92 nA. This product has a 70 ns of 16 ns. This product has a 120 ns of 16 ns. Minimum supply voltage is 12.5 V Number-of-Drivers: 1 Driver

L6390DTR Image

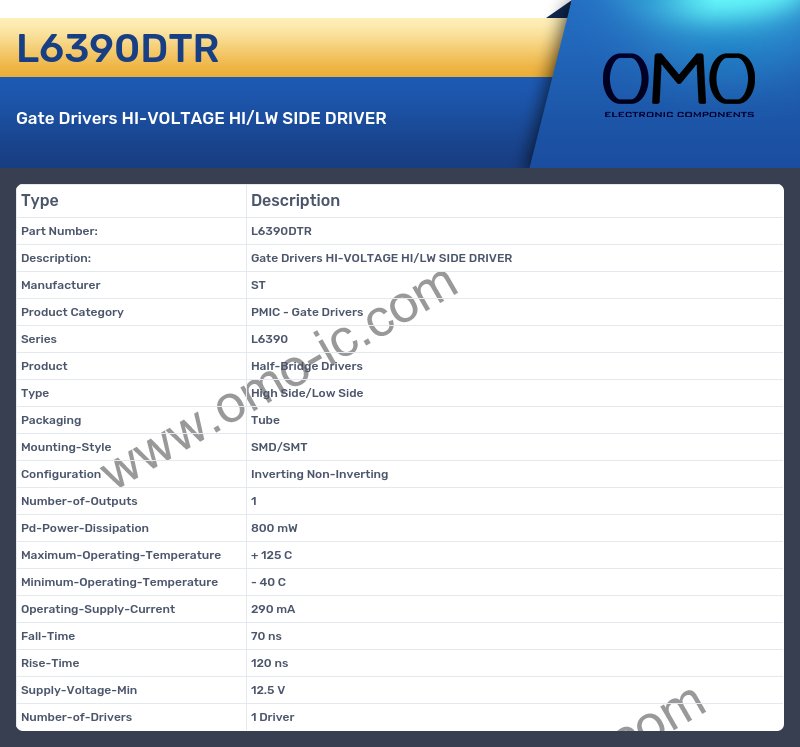

L6390DTR Specifications

• Manufacturer ST
• Product Category PMIC - Gate Drivers
• Series L6390
• Product Half-Bridge Drivers
• Type High Side/Low Side
• Packaging Tube
• Mounting-Style SMD/SMT
• Configuration Inverting Non-Inverting
• Number-of-Outputs 1
• Pd-Power-Dissipation 800 mW
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Current 290 mA
• Fall-Time 70 ns
• Rise-Time 120 ns
• Supply-Voltage-Min 12.5 V
• Number-of-Drivers 1 Driver
