L6385ED013TR

L6385ED013TR Overview

Product belongs to the L6385E series. This product is categorized as Half-Bridge Drivers Type: Non-Inverting Reel is the packaging method for this product Weight of 0.004395 oz SMD/SMT Mounting-Style Configuration Non-Inverting Number-of-Outputs: 2 Power-off control: 750 mW Maximum operating temperature of + 125 C Minimum operating temperature: - 45 C 320 uA is 92 nA. Output current: 650 mA This product has a 30 ns of 16 ns. This product has a 50 ns of 16 ns. Maximum supply voltage of 17 V Minimum supply voltage is - 0.3 V SO-8 Number-of-Drivers: 2 Driver

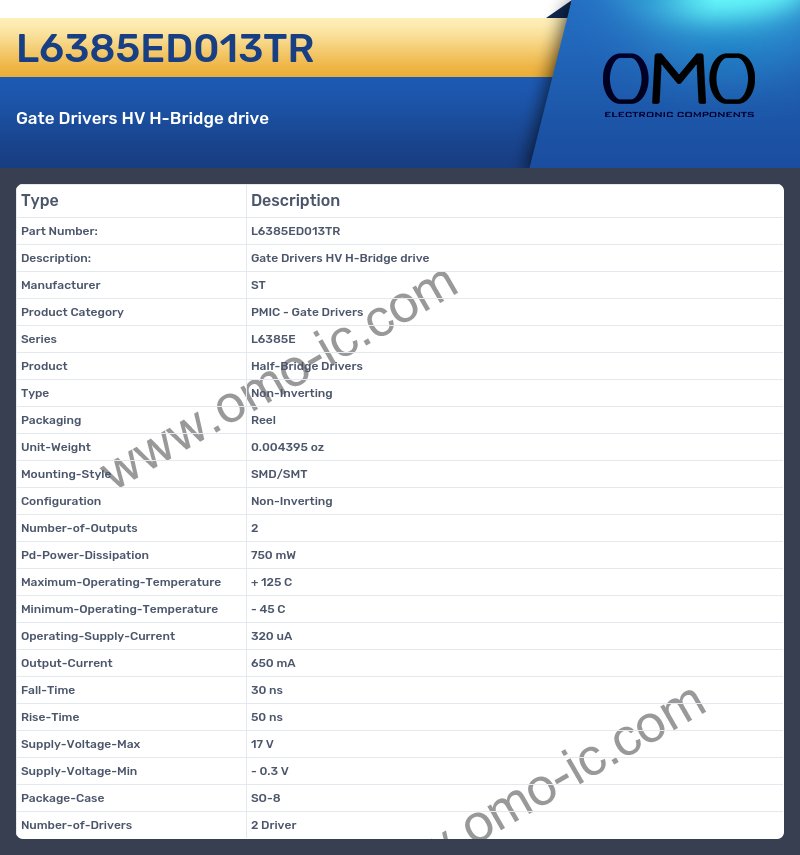

L6385ED013TR Image

L6385ED013TR Specifications

• Manufacturer ST
• Product Category PMIC - Gate Drivers
• Series L6385E
• Product Half-Bridge Drivers
• Type Non-Inverting
• Packaging Reel
• Unit-Weight 0.004395 oz
• Mounting-Style SMD/SMT
• Configuration Non-Inverting
• Number-of-Outputs 2
• Pd-Power-Dissipation 750 mW
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 45 C
• Operating-Supply-Current 320 uA
• Output-Current 650 mA
• Fall-Time 30 ns
• Rise-Time 50 ns
• Supply-Voltage-Max 17 V
• Supply-Voltage-Min - 0.3 V
• Package-Case SO-8
• Number-of-Drivers 2 Driver
