L5991AD13TR

L5991AD13TR Overview

Product belongs to the L5991 series. Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.007079 oz SMD/SMT Mounting-Style SO-16 Operational temperature range: -40°C ~ 150°C (TJ) Output-Type: Transistor Driver Product function is Step-Up/Step-Down. Supplier device package: 16-SO Number-of-Outputs: 1 Topology: Flyback feedback Supply Voltage: 7.6 V ~ 20 V This product features 'Frequency-Switching' at Up to 1MHz for optimal performance. The Control-Features include Current Limit, Frequency Control, Soft Start function. The Positive, Isolation Capable. Output-Phases: 1 Maximum duty cycle of 93 % The value of Yes is included as a product attribute. No enabled Serial Interfaces: - Maximum operating temperature of + 150 C Minimum operating temperature: - 40 C This product operates at a 12 V to 20 V supply voltage for reliable performance. Output voltage: 5.075 V Output current: 1500 mA Switching frequency is 1000 kHz This product has a 35 ns of 16 ns. This product has a 70 ns of 16 ns.

L5991AD13TR Image

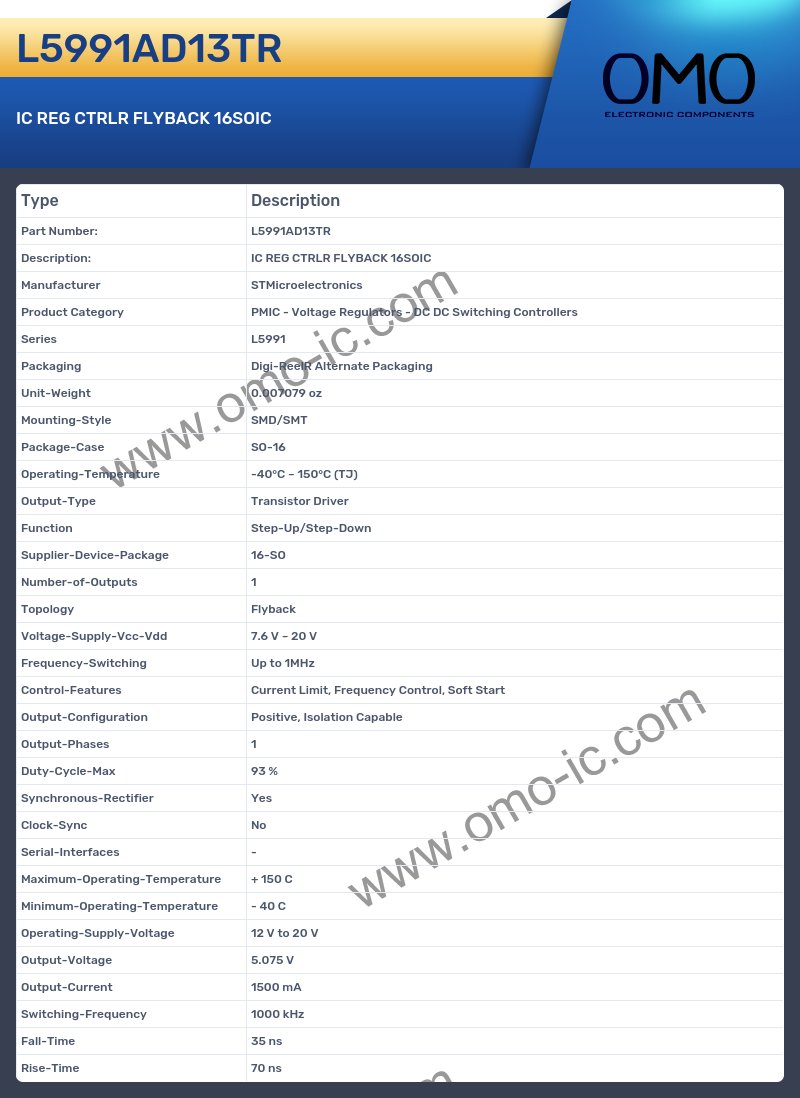

L5991AD13TR Specifications

• Manufacturer STMicroelectronics
• Product Category PMIC - Voltage Regulators - DC DC Switching Controllers
• Series L5991
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.007079 oz
• Mounting-Style SMD/SMT
• Package-Case SO-16
• Operating-Temperature -40°C ~ 150°C (TJ)
• Output-Type Transistor Driver
• Function Step-Up/Step-Down
• Supplier-Device-Package 16-SO
• Number-of-Outputs 1
• Topology Flyback
• Voltage-Supply-Vcc-Vdd 7.6 V ~ 20 V
• Frequency-Switching Up to 1MHz
• Control-Features Current Limit, Frequency Control, Soft Start
• Output-Configuration Positive, Isolation Capable
• Output-Phases 1
• Duty-Cycle-Max 93 %
• Synchronous-Rectifier Yes
• Clock-Sync No
• Serial-Interfaces -
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Voltage 12 V to 20 V
• Output-Voltage 5.075 V
• Output-Current 1500 mA
• Switching-Frequency 1000 kHz
• Fall-Time 35 ns
• Rise-Time 70 ns
