L5970AD

L5970AD Overview

Product belongs to the L5970 series. Type: Step-Down Tube Alternate Packaging is the packaging method for this product Weight of 0.017870 oz SMD/SMT Mounting-Style Wide - 40 C to + 150 C operating temperature range for diverse applications SO-8 Operational temperature range: -40°C ~ 150°C (TJ) Surface Mount mounting type Output-Type: Adjustable Product function is Step-Down. Supplier device package: 8-SO Number-of-Outputs: 1 Topology: Buck feedback This product features 'Frequency-Switching' at 500kHz for optimal performance. The Positive. Minimum fixed output voltage is 1.235V . The value of No is included as a product attribute. The minimum input voltage is 4.4V. The 36V. Power-off control: Shutdown Maximum operating temperature of + 150 C Minimum operating temperature: - 40 C Output voltage: 35 V 16 mA is 92 nA. Input Voltage Range: 4.4 V to 36 V Maximum Input Voltage: 36 V Output current: 1.5 A Switching frequency is 500 kHz The product's 4.4 V is 5.1 V. Minimum supply voltage is 4.4 V

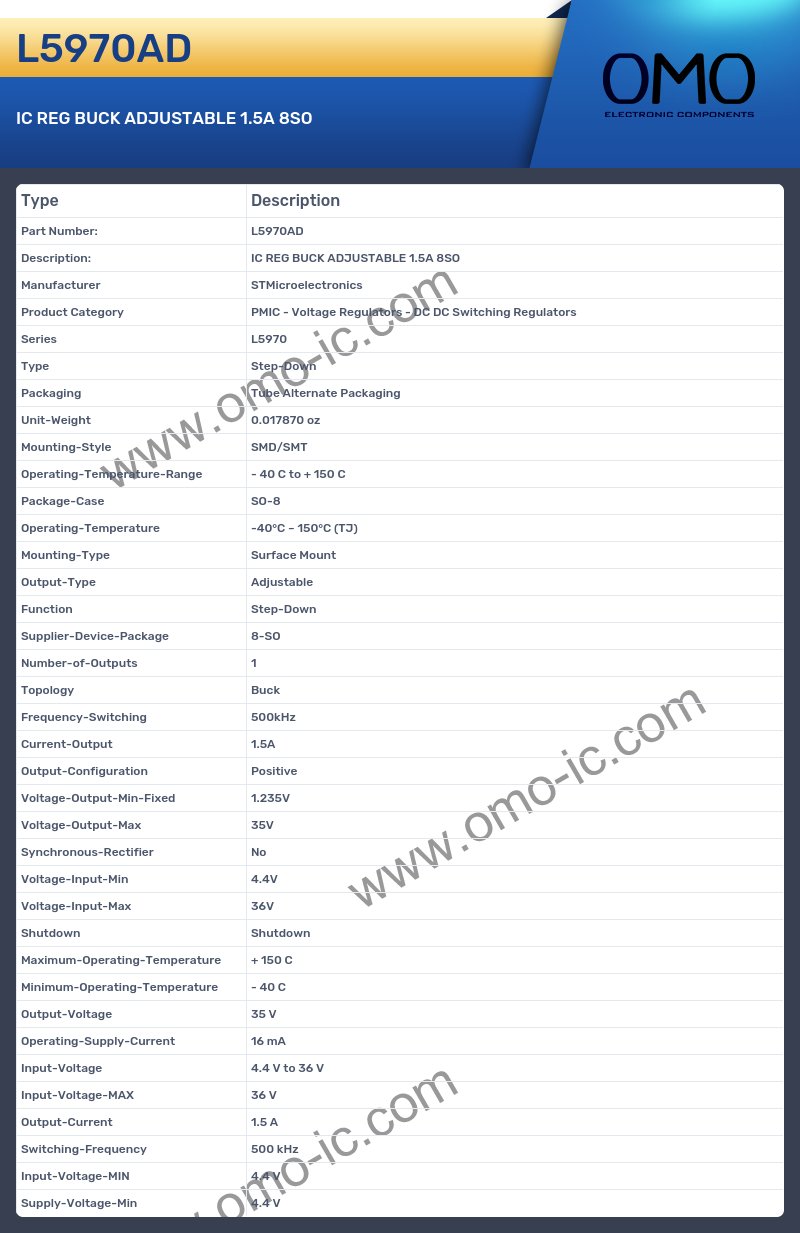

L5970AD Image

L5970AD Specifications

• Manufacturer STMicroelectronics
• Product Category PMIC - Voltage Regulators - DC DC Switching Regulators
• Series L5970
• Type Step-Down
• Packaging Tube Alternate Packaging
• Unit-Weight 0.017870 oz
• Mounting-Style SMD/SMT
• Operating-Temperature-Range - 40 C to + 150 C
• Package-Case SO-8
• Operating-Temperature -40°C ~ 150°C (TJ)
• Mounting-Type Surface Mount
• Output-Type Adjustable
• Function Step-Down
• Supplier-Device-Package 8-SO
• Number-of-Outputs 1
• Topology Buck
• Frequency-Switching 500kHz
• Current-Output 1.5A
• Output-Configuration Positive
• Voltage-Output-Min-Fixed 1.235V
• Voltage-Output-Max 35V
• Synchronous-Rectifier No
• Voltage-Input-Min 4.4V
• Voltage-Input-Max 36V
• Shutdown Shutdown
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature - 40 C
• Output-Voltage 35 V
• Operating-Supply-Current 16 mA
• Input-Voltage 4.4 V to 36 V
• Input-Voltage-MAX 36 V
• Output-Current 1.5 A
• Switching-Frequency 500 kHz
• Input-Voltage-MIN 4.4 V
• Supply-Voltage-Min 4.4 V
