| Mfr. #: | ISO7341CDWR |
|---|---|
| निर्माता: | Texas Instruments |
| विवरण: | Digital Isolators Quad-Channel 3/1 Dig Safe High 16-SOIC |
| जीवन चक्र: | यस निर्माताबाट नयाँ। |
| डाटा पाना: | ISO7341CDWR डाटा पाना |
Product belongs to the ISO7341C series. This product is categorized as Digital Isolators Type: General Purpose Tape & Reel (TR) Alternate Packaging is the packaging method for this product Weight of 0.023492 oz SMD/SMT Mounting-Style SOIC-16 Capacitive Coupling is the technology used. Operational temperature range: -40°C ~ 125°C Number of channels: 4 Voltage Supply Range: 3 V ~ 5.5 V Supplier device package: 16-SOIC This product's Unidirectional This product is designed with 3000Vrms voltage isolation for maximum safety and reliability. Power-off control: No Shutdown This product is designed with No isolated power for maximum safety and reliability. The product has 2016/3/1 0:00:00 inputs from Side 1 to Side 2. Minimum 25kV/μs of 10kV/μs Maximum Propagation Delay tpLH/tpHL: 58ns, 58ns The minimum pulse width distortion is 4ns. Power-off control: 102 mW Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Polarity: Unidirectional Capacitive Coupling is the isolation type specified for this product. 5 mA 7.8 mA is 92 nA. Isolation voltage of 3 kVrms Maximum supply voltage of 5.5 V Minimum supply voltage is 3 V 31 ns is 23 microseconds. This product features 3 Channel Forward-Channels for simple connectivity. Maximum fall time of 1.7 ns Rise time max: 2.1 ns Pulse width distortion is 4 ns The product has 1 Channel for reverse communication.
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

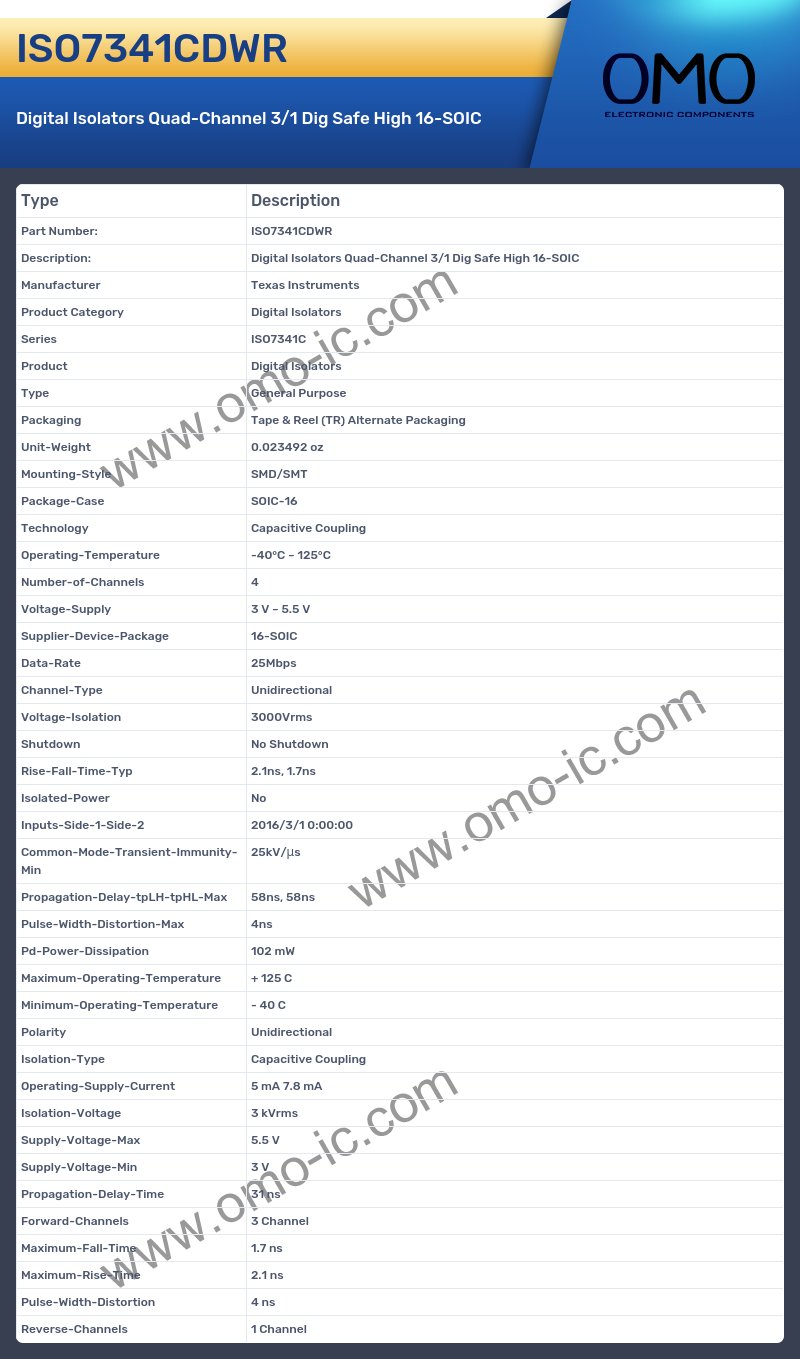

ISO7341CDWR Specifications
A: At what frequency does the Series?
Q: The product Series is ISO7341C.
A: What is the Product of the product?
Q: The Product of the product is Digital Isolators.
A: What is the Type of the product?
Q: The Type of the product is General Purpose.
A: What is the Packaging of the product?
Q: The Packaging of the product is Tape & Reel (TR) Alternate Packaging.
A: At what frequency does the Unit-Weight?
Q: The product Unit-Weight is 0.023492 oz.
A: At what frequency does the Mounting-Style?
Q: The product Mounting-Style is SMD/SMT.
A: Is the cutoff frequency of the product Package-Case?
Q: Yes, the product's Package-Case is indeed SOIC-16
A: Is the cutoff frequency of the product Technology?
Q: Yes, the product's Technology is indeed Capacitive Coupling
A: What is the Operating-Temperature of the product?
Q: The Operating-Temperature of the product is -40°C ~ 125°C.
A: At what frequency does the Number-of-Channels?
Q: The product Number-of-Channels is 4.
A: What is the Voltage-Supply of the product?
Q: The Voltage-Supply of the product is 3 V ~ 5.5 V.
A: At what frequency does the Supplier-Device-Package?
Q: The product Supplier-Device-Package is 16-SOIC.
A: At what frequency does the Channel-Type?
Q: The product Channel-Type is Unidirectional.
A: What is the Voltage-Isolation of the product?
Q: The Voltage-Isolation of the product is 3000Vrms.
A: At what frequency does the Shutdown?
Q: The product Shutdown is No Shutdown.
A: What is the Isolated-Power of the product?
Q: The Isolated-Power of the product is No.
A: At what frequency does the Inputs-Side-1-Side-2?
Q: The product Inputs-Side-1-Side-2 is 2016/3/1 0:00:00.
A: At what frequency does the Common-Mode-Transient-Immunity-Min?
Q: The product Common-Mode-Transient-Immunity-Min is 25kV/μs.
A: Is the cutoff frequency of the product Propagation-Delay-tpLH-tpHL-Max?
Q: Yes, the product's Propagation-Delay-tpLH-tpHL-Max is indeed 58ns, 58ns
A: What is the Pulse-Width-Distortion-Max of the product?
Q: The Pulse-Width-Distortion-Max of the product is 4ns.
A: What is the Pd-Power-Dissipation of the product?
Q: The Pd-Power-Dissipation of the product is 102 mW.
A: What is the Maximum-Operating-Temperature of the product?
Q: The Maximum-Operating-Temperature of the product is + 125 C.
A: Is the cutoff frequency of the product Minimum-Operating-Temperature?
Q: Yes, the product's Minimum-Operating-Temperature is indeed - 40 C
A: Is the cutoff frequency of the product Polarity?
Q: Yes, the product's Polarity is indeed Unidirectional
A: What is the Isolation-Type of the product?
Q: The Isolation-Type of the product is Capacitive Coupling.
A: At what frequency does the Operating-Supply-Current?
Q: The product Operating-Supply-Current is 5 mA 7.8 mA.
A: At what frequency does the Isolation-Voltage?
Q: The product Isolation-Voltage is 3 kVrms.
A: Is the cutoff frequency of the product Supply-Voltage-Max?
Q: Yes, the product's Supply-Voltage-Max is indeed 5.5 V
A: What is the Supply-Voltage-Min of the product?
Q: The Supply-Voltage-Min of the product is 3 V.
A: Is the cutoff frequency of the product Propagation-Delay-Time?
Q: Yes, the product's Propagation-Delay-Time is indeed 31 ns
A: Is the cutoff frequency of the product Forward-Channels?
Q: Yes, the product's Forward-Channels is indeed 3 Channel
A: At what frequency does the Maximum-Fall-Time?
Q: The product Maximum-Fall-Time is 1.7 ns.
A: What is the Maximum-Rise-Time of the product?
Q: The Maximum-Rise-Time of the product is 2.1 ns.
A: At what frequency does the Pulse-Width-Distortion?
Q: The product Pulse-Width-Distortion is 4 ns.
A: Is the cutoff frequency of the product Reverse-Channels?
Q: Yes, the product's Reverse-Channels is indeed 1 Channel
