HMC505LP4

HMC505LP4 Overview

Product belongs to the HMC505 series. This product is categorized as VCO Cut Strip Alternate Packaging is the packaging method for this product Solder Pad Mounting-Style This product's Termination-Style is ' SMD/SMT ' for easy integration into your design. The Height of the product is 1 mm. 4.1 mm length of the product The 4.1 mm is at most 7.6 mm. QFN-24 This product's 6.8GHz ~ 7.4GHz range is 0Hz to 2.2GHz. Voltage Supply Range: 3V Supplier device package: 24-QFN (4x4) This product has a 80mA of 200μA. The device offers a - of 26dB. Test-Frequency is -. P1dB is - RF-Type: VSAT Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C This product operates at a 3 V supply voltage for reliable performance. Maximum supply voltage of 3.25 V Minimum supply voltage is 2.75 V

HMC505LP4 Image

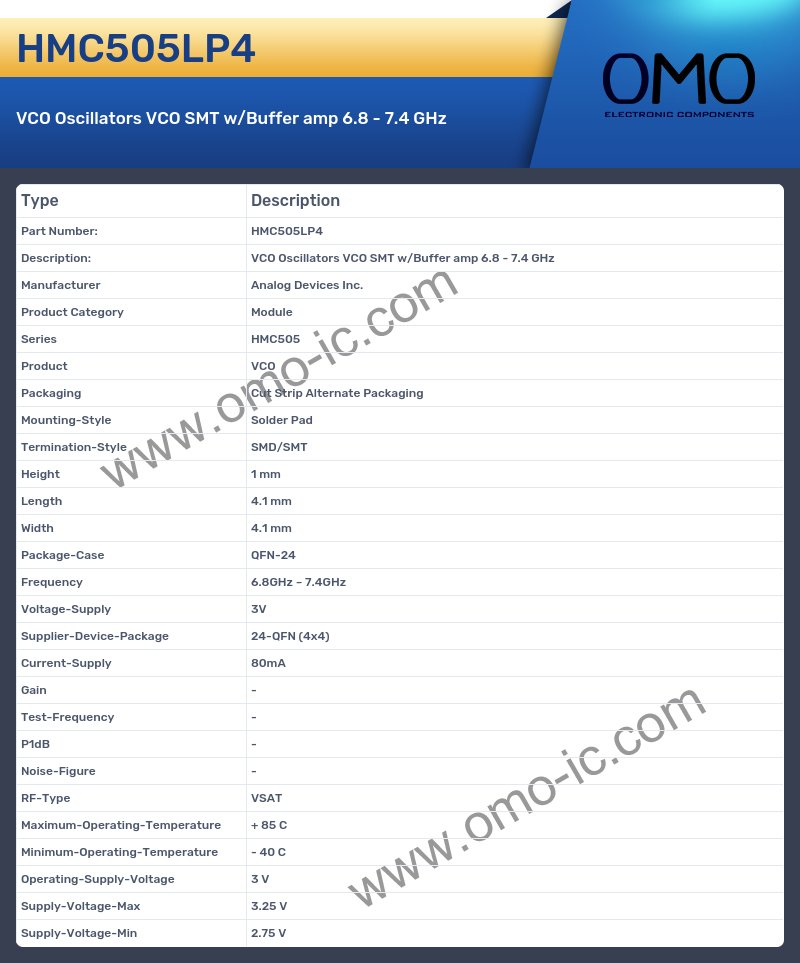

HMC505LP4 Specifications

• Manufacturer Analog Devices Inc.
• Product Category Module
• Series HMC505
• Product VCO
• Packaging Cut Strip Alternate Packaging
• Mounting-Style Solder Pad
• Termination-Style SMD/SMT
• Height 1 mm
• Length 4.1 mm
• Width 4.1 mm
• Package-Case QFN-24
• Frequency 6.8GHz ~ 7.4GHz
• Voltage-Supply 3V
• Supplier-Device-Package 24-QFN (4x4)
• Current-Supply 80mA
• Gain -
• Test-Frequency -
• P1dB -
• Noise-Figure -
• RF-Type VSAT
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Voltage 3 V
• Supply-Voltage-Max 3.25 V
• Supply-Voltage-Min 2.75 V
