HMC232G8

HMC232G8 Overview

Product belongs to the HMC232G series. Tape & Reel (TR) is the packaging method for this product SMD/SMT Mounting-Style G8 Impedance value is 50 Ohm GaAs is the technology used. Operational temperature range: -40°C ~ 85°C Voltage Supply Range: - Supplier device package: 8-SMD Circuit type: SPDT Topology: Absorptive feedback P1dB is 27dBm (typ) IP1dB RF-Type: VSAT Frequency upper limit of 6GHz Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Switch Configuration: SPDT The operating frequency is DC to 6 GHz. Dual switch functionality The 38 dB of this product is 35 dB.

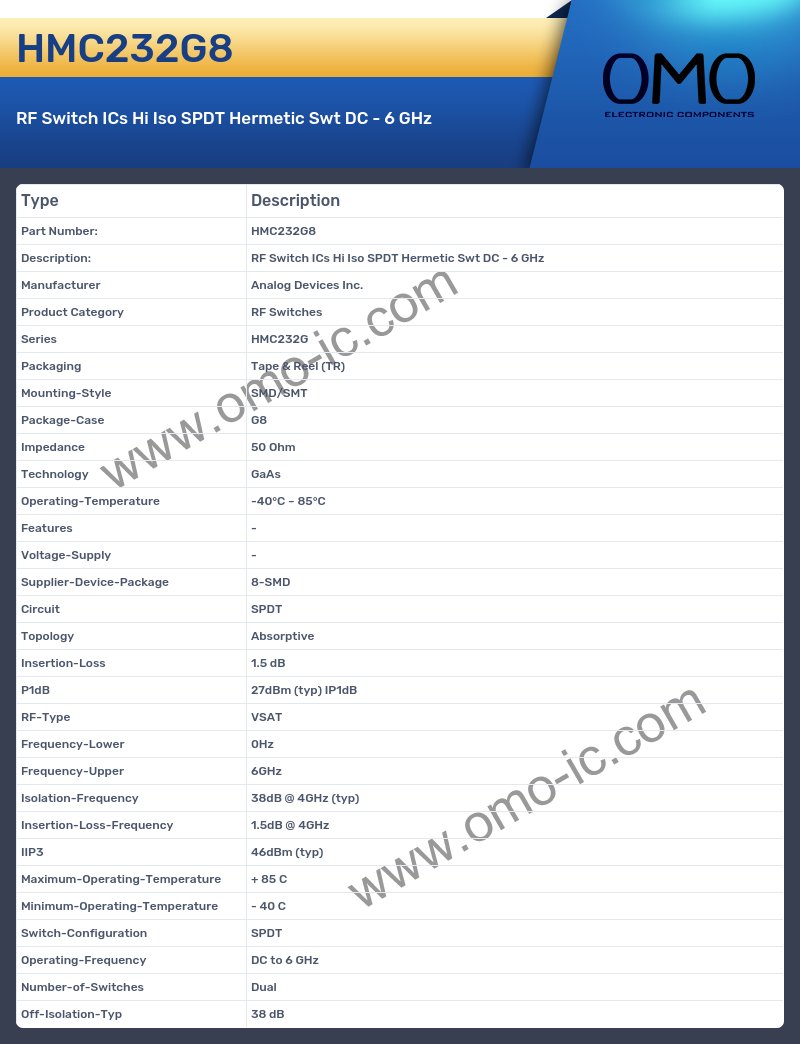

HMC232G8 Image

HMC232G8 Specifications

• Manufacturer Analog Devices Inc.
• Product Category RF Switches
• Series HMC232G
• Packaging Tape & Reel (TR)
• Mounting-Style SMD/SMT
• Package-Case G8
• Impedance 50 Ohm
• Technology GaAs
• Operating-Temperature -40°C ~ 85°C
• Features -
• Voltage-Supply -
• Supplier-Device-Package 8-SMD
• Circuit SPDT
• Topology Absorptive
• Insertion-Loss 1.5 dB
• P1dB 27dBm (typ) IP1dB
• RF-Type VSAT
• Frequency-Lower 0Hz
• Frequency-Upper 6GHz
• Isolation-Frequency 38dB @ 4GHz (typ)
• Insertion-Loss-Frequency 1.5dB @ 4GHz
• IIP3 46dBm (typ)
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Switch-Configuration SPDT
• Operating-Frequency DC to 6 GHz
• Number-of-Switches Dual
• Off-Isolation-Typ 38 dB
