HCF4069UM013TR

HCF4069UM013TR Overview

Product belongs to the 4000 series. Digi-ReelR is the packaging method for this product 14-SOIC (0.154", 3.90mm Width) Operational temperature range: -55°C ~ 125°C Surface Mount mounting type Voltage Supply Range: 3 V ~ 20 V Supplier device package: 14-SO 6 is 8. 5μA maximum quiescent current. Inverter logic type 1 V ~ 2.5 V is a Logic-Level-Low; 4 V ~ 12.5 V is the Logic-Level-High

HCF4069UM013TR Image

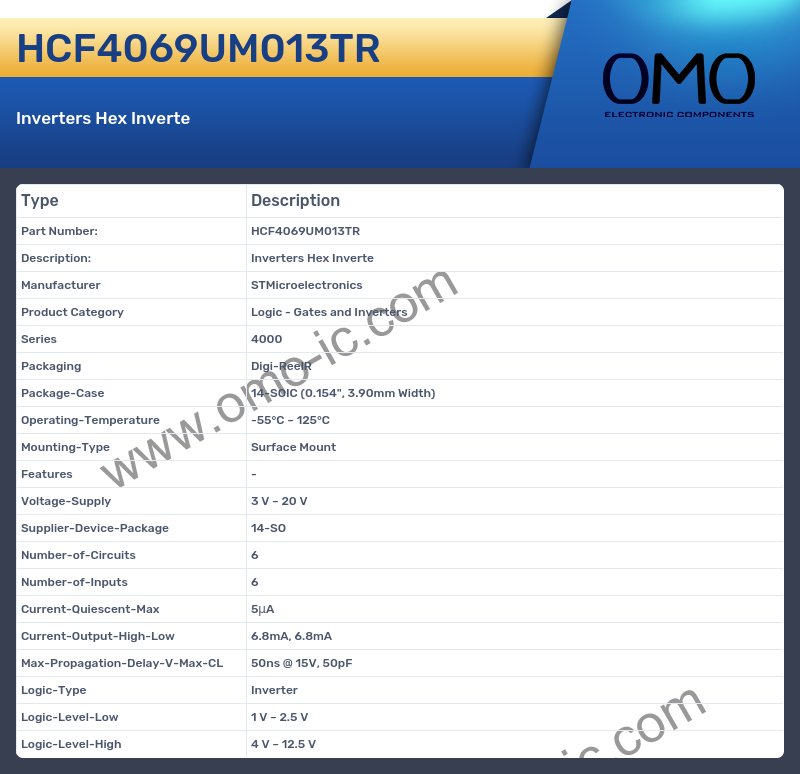

HCF4069UM013TR Specifications

• Manufacturer STMicroelectronics
• Product Category Logic - Gates and Inverters
• Series 4000
• Packaging Digi-ReelR
• Package-Case 14-SOIC (0.154", 3.90mm Width)
• Operating-Temperature -55°C ~ 125°C
• Mounting-Type Surface Mount
• Features -
• Voltage-Supply 3 V ~ 20 V
• Supplier-Device-Package 14-SO
• Number-of-Circuits 6
• Number-of-Inputs 6
• Current-Quiescent-Max 5μA
• Current-Output-High-Low 6.8mA, 6.8mA
• Max-Propagation-Delay-V-Max-CL 50ns @ 15V, 50pF
• Logic-Type Inverter
• Logic-Level-Low 1 V ~ 2.5 V
• Logic-Level-High 4 V ~ 12.5 V
