HCF4042BEY

HCF4042BEY Overview

Product belongs to the 4000B series. Tube is the packaging method for this product Weight of 0.057419 oz Through Hole Mounting-Style DIP-16 Operational temperature range: -55°C ~ 125°C Through Hole mounting type Output-Type: Differential Number of channels: 4 Channels Voltage Supply Range: 3 V ~ 20 V Supplier device package: 16-DIP 4 Circuit is 8. Circuit type: 1899/12/30 4:04:00 D-Type Transparent Latch logic type 1 Independent Circuit The 40ns Delay-Time-Propagation. Maximum operating temperature of + 125 C Minimum operating temperature: - 55 C Polarity: Inverting/Non-Inverting Maximum supply current: 40 nA Maximum supply voltage of 20 V Minimum supply voltage is 3 V HCF40 logic type 300 ns at 5 V 150 ns at 10 V 100 ns at 15 V is 23 microseconds. This product has a 20 uA of 7 mA, making it ideal for low-power applications. High-Level-Output-Current of - 2.4 mA 32 mA low-level output current Number-of-Input-Lines: 4 Line Number-of-Output-Lines: 4 Line

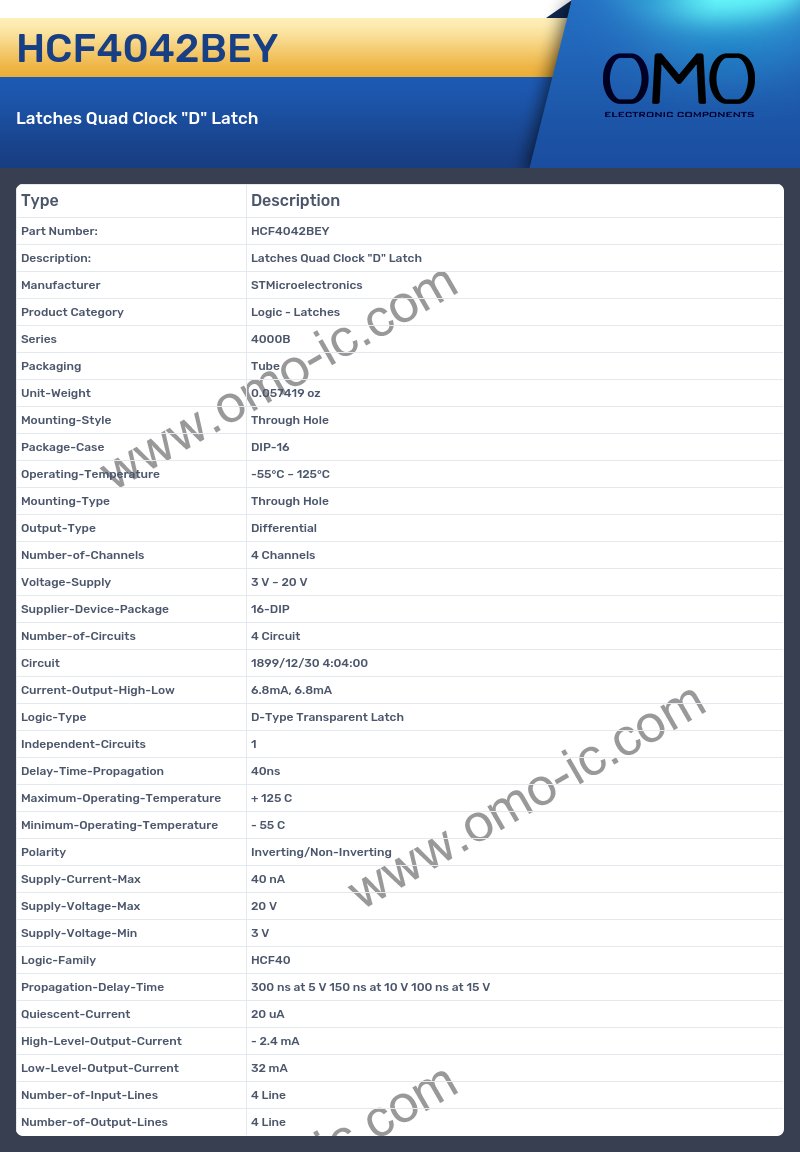

HCF4042BEY Image

HCF4042BEY Specifications

• Manufacturer STMicroelectronics
• Product Category Logic - Latches
• Series 4000B
• Packaging Tube
• Unit-Weight 0.057419 oz
• Mounting-Style Through Hole
• Package-Case DIP-16
• Operating-Temperature -55°C ~ 125°C
• Mounting-Type Through Hole
• Output-Type Differential
• Number-of-Channels 4 Channels
• Voltage-Supply 3 V ~ 20 V
• Supplier-Device-Package 16-DIP
• Number-of-Circuits 4 Circuit
• Circuit 1899/12/30 4:04:00
• Current-Output-High-Low 6.8mA, 6.8mA
• Logic-Type D-Type Transparent Latch
• Independent-Circuits 1
• Delay-Time-Propagation 40ns
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 55 C
• Polarity Inverting/Non-Inverting
• Supply-Current-Max 40 nA
• Supply-Voltage-Max 20 V
• Supply-Voltage-Min 3 V
• Logic-Family HCF40
• Propagation-Delay-Time 300 ns at 5 V 150 ns at 10 V 100 ns at 15 V
• Quiescent-Current 20 uA
• High-Level-Output-Current - 2.4 mA
• Low-Level-Output-Current 32 mA
• Number-of-Input-Lines 4 Line
• Number-of-Output-Lines 4 Line
