ESDLIN1524BJ

ESDLIN1524BJ Overview

Product belongs to the Automotive, AEC-Q101, TRANSIL series. Type: Zener Digi-ReelR Alternate Packaging is the packaging method for this product This product's Termination-Style is ' SMD/SMT ' for easy integration into your design. Trade name: Transil. SC-76, SOD-323 Operational temperature range: -40°C ~ 150°C (TJ) Surface Mount mounting type Versatile Automotive applications for maximum usability Number of channels: 1 Channel Supplier device package: SOD-323 1 Bidirectional-Channels The Voltage-Reverse-Standoff-Typ is set at a maximum of 15V, 24V. The Voltage-Breakdown-Min is 17.1V, 25.4V. No Power-Line-Protection 16pF @ 1MHz Capacitance-Frequency Power-off control: 160 W Maximum operating temperature of + 150 C Minimum operating temperature: - 40 C Breakdown-Voltage: 17.1 V Clamping-Voltage: 35 V The Cd-Diode-Capacitance is 16 pF 15 V working voltage Polarity: Bidirectional 5 A of IPP, Peak Pulse, and Current 30 kV of Vesd-Voltage-ESD-Contact 30 kV Vesd-Voltage-ESD-Air-Gap

ESDLIN1524BJ Image

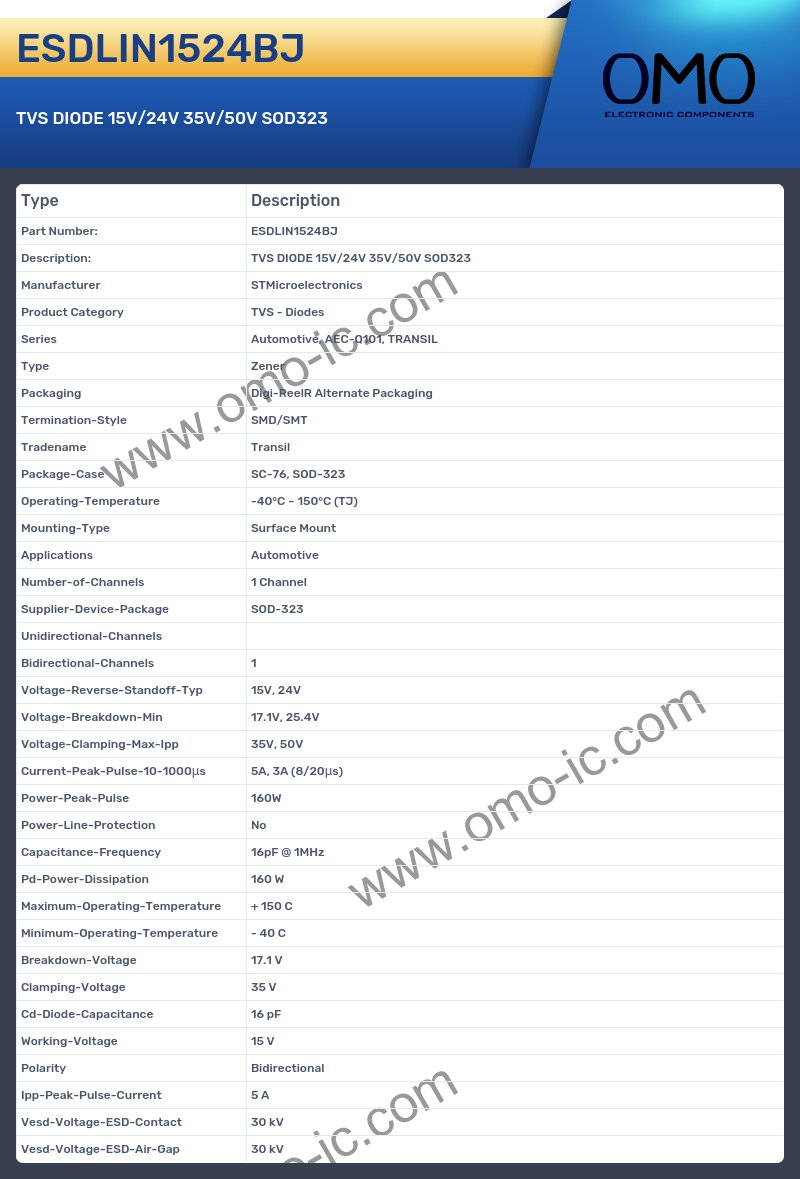

ESDLIN1524BJ Specifications

• Manufacturer STMicroelectronics
• Product Category TVS - Diodes
• Series Automotive, AEC-Q101, TRANSIL
• Type Zener
• Packaging Digi-ReelR Alternate Packaging
• Termination-Style SMD/SMT
• Tradename Transil
• Package-Case SC-76, SOD-323
• Operating-Temperature -40°C ~ 150°C (TJ)
• Mounting-Type Surface Mount
• Applications Automotive
• Number-of-Channels 1 Channel
• Supplier-Device-Package SOD-323
• Unidirectional-Channels
• Bidirectional-Channels 1
• Voltage-Reverse-Standoff-Typ 15V, 24V
• Voltage-Breakdown-Min 17.1V, 25.4V
• Voltage-Clamping-Max-Ipp 35V, 50V
• Current-Peak-Pulse-10-1000μs 5A, 3A (8/20μs)
• Power-Peak-Pulse 160W
• Power-Line-Protection No
• Capacitance-Frequency 16pF @ 1MHz
• Pd-Power-Dissipation 160 W
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature - 40 C
• Breakdown-Voltage 17.1 V
• Clamping-Voltage 35 V
• Cd-Diode-Capacitance 16 pF
• Working-Voltage 15 V
• Polarity Bidirectional
• Ipp-Peak-Pulse-Current 5 A
• Vesd-Voltage-ESD-Contact 30 kV
• Vesd-Voltage-ESD-Air-Gap 30 kV
