ESDAVLC8-4BN4 Overview

Product belongs to the ESDA, TRANSIL series. Type: Zener Digi-ReelR Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style This product's Termination-Style is ' SMD/SMT ' for easy integration into your design. Trade name: Transil. The Height of the product is 0.38 mm. 4-XFQFN Exposed Pad Operational temperature range: -40°C ~ 125°C (TJ) Surface Mount mounting type Versatile General Purpose applications for maximum usability Number of channels: 4 Channel Supplier device package: 4-uQFN (1x0.8) 4 Bidirectional-Channels The Voltage-Reverse-Standoff-Typ is set at a maximum of 3V. The Voltage-Breakdown-Min is 8.5V. No Power-Line-Protection 4.5pF @ 1MHz Capacitance-Frequency Power-off control: 45 W Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Breakdown-Voltage: 8.5 V Clamping-Voltage: 20 V 28 V 1.6 A Peak Surge Current The Cd-Diode-Capacitance is 4.5 pF Polarity: Bidirectional

ESDAVLC8-4BN4 Image

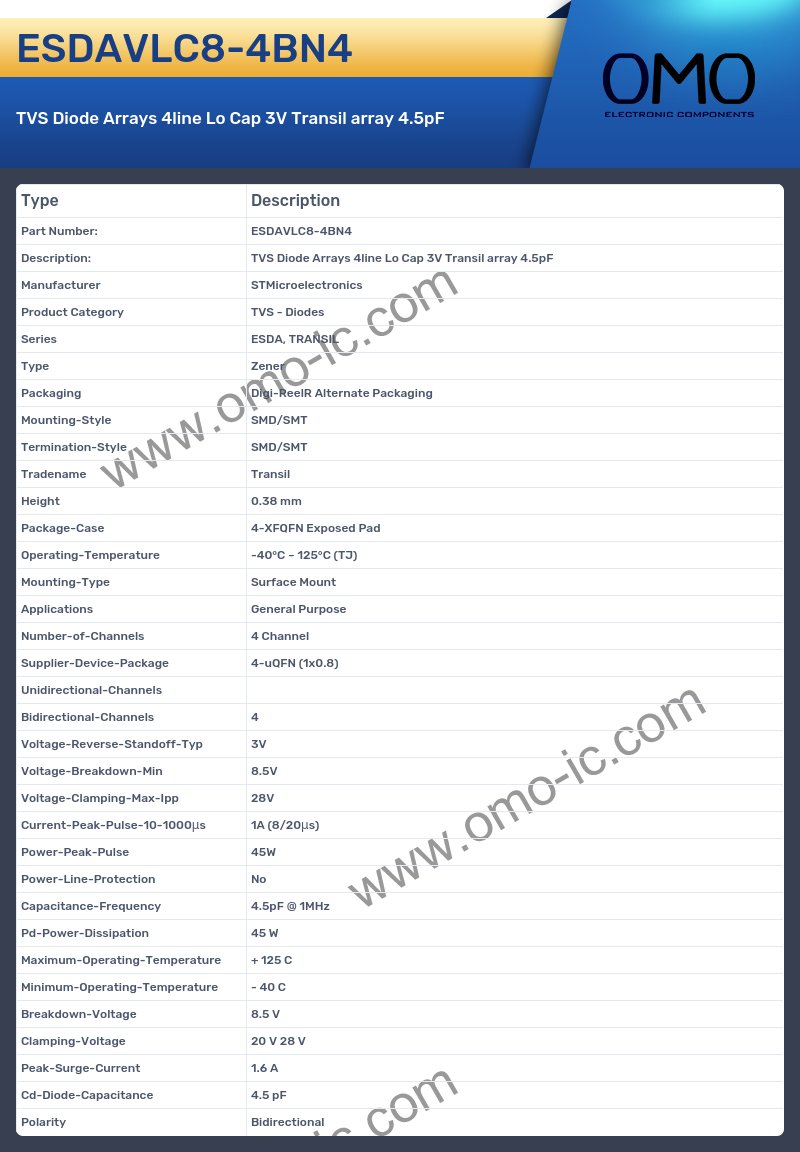

ESDAVLC8-4BN4 Specifications

• Manufacturer STMicroelectronics
• Product Category TVS - Diodes
• Series ESDA, TRANSIL
• Type Zener
• Packaging Digi-ReelR Alternate Packaging
• Mounting-Style SMD/SMT
• Termination-Style SMD/SMT
• Tradename Transil
• Height 0.38 mm
• Package-Case 4-XFQFN Exposed Pad
• Operating-Temperature -40°C ~ 125°C (TJ)
• Mounting-Type Surface Mount
• Applications General Purpose
• Number-of-Channels 4 Channel
• Supplier-Device-Package 4-uQFN (1x0.8)
• Unidirectional-Channels
• Bidirectional-Channels 4
• Voltage-Reverse-Standoff-Typ 3V
• Voltage-Breakdown-Min 8.5V
• Voltage-Clamping-Max-Ipp 28V
• Current-Peak-Pulse-10-1000μs 1A (8/20μs)
• Power-Peak-Pulse 45W
• Power-Line-Protection No
• Capacitance-Frequency 4.5pF @ 1MHz
• Pd-Power-Dissipation 45 W
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Breakdown-Voltage 8.5 V
• Clamping-Voltage 20 V 28 V
• Peak-Surge-Current 1.6 A
• Cd-Diode-Capacitance 4.5 pF
• Polarity Bidirectional
