ESDALC12-1T2

ESDALC12-1T2 Overview

Product belongs to the ESDA, TRANSIL series. Type: Zener Digi-ReelR Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style This product's Termination-Style is ' SMD/SMT ' for easy integration into your design. Wide - 30 C to + 85 C operating temperature range for diverse applications The Height of the product is 0.4 mm. 1 mm length of the product The 0.5 mm is at most 7.6 mm. SOD-882 Operational temperature range: -40°C ~ 125°C (TJ) Surface Mount mounting type Versatile General Purpose applications for maximum usability Supplier device package: SOD-882 - Bidirectional-Channels The Voltage-Reverse-Standoff-Typ is set at a maximum of 10V. The Voltage-Breakdown-Min is 12V. No Power-Line-Protection 15pF @ 1MHz Capacitance-Frequency Power-off control: 50 W Maximum operating temperature of + 85 C Minimum operating temperature: - 30 C Breakdown-Voltage: 14 V Clamping-Voltage: 20 V 2 A Peak Surge Current Polarity: Unidirectional

ESDALC12-1T2 Image

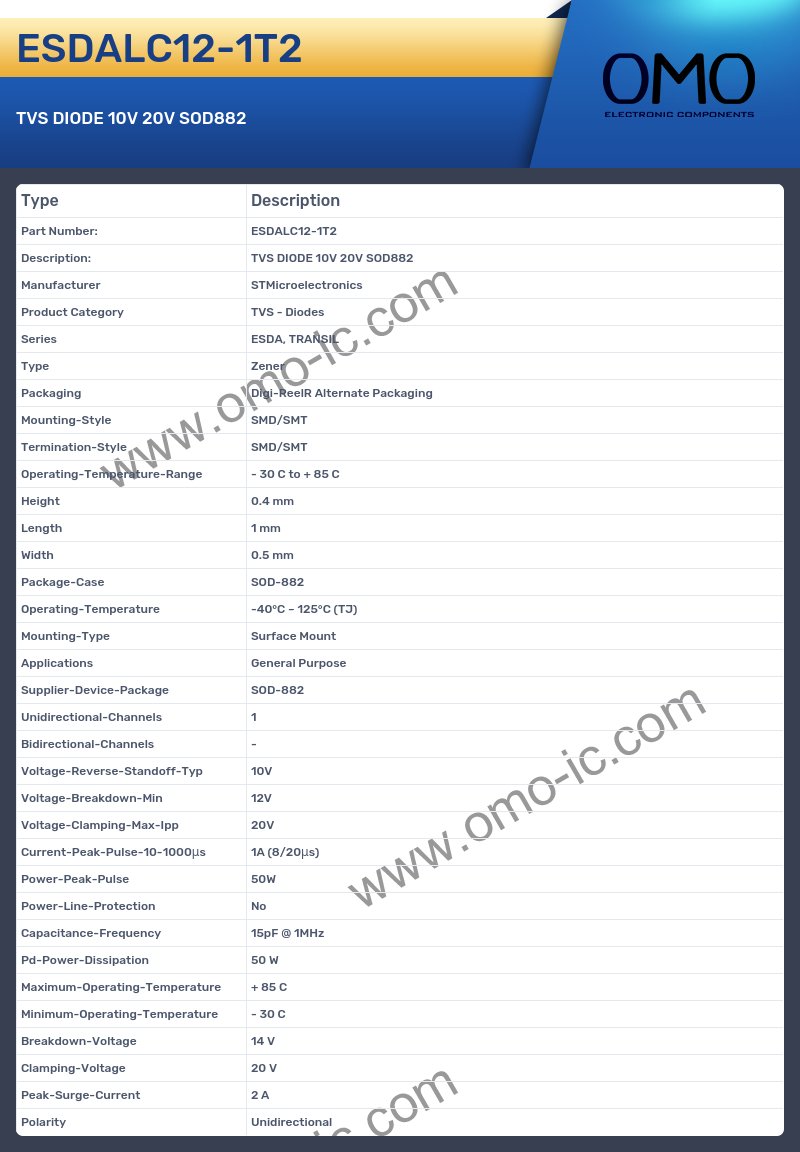

ESDALC12-1T2 Specifications

• Manufacturer STMicroelectronics
• Product Category TVS - Diodes
• Series ESDA, TRANSIL
• Type Zener
• Packaging Digi-ReelR Alternate Packaging
• Mounting-Style SMD/SMT
• Termination-Style SMD/SMT
• Operating-Temperature-Range - 30 C to + 85 C
• Height 0.4 mm
• Length 1 mm
• Width 0.5 mm
• Package-Case SOD-882
• Operating-Temperature -40°C ~ 125°C (TJ)
• Mounting-Type Surface Mount
• Applications General Purpose
• Supplier-Device-Package SOD-882
• Unidirectional-Channels 1
• Bidirectional-Channels -
• Voltage-Reverse-Standoff-Typ 10V
• Voltage-Breakdown-Min 12V
• Voltage-Clamping-Max-Ipp 20V
• Current-Peak-Pulse-10-1000μs 1A (8/20μs)
• Power-Peak-Pulse 50W
• Power-Line-Protection No
• Capacitance-Frequency 15pF @ 1MHz
• Pd-Power-Dissipation 50 W
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 30 C
• Breakdown-Voltage 14 V
• Clamping-Voltage 20 V
• Peak-Surge-Current 2 A
• Polarity Unidirectional
