ESDA6V1U1RL

ESDA6V1U1RL Overview

Product belongs to the ESDA, TRANSIL series. Type: Zener Digi-ReelR Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style This product's Termination-Style is ' SMD/SMT ' for easy integration into your design. Trade name: Transil. The Height of the product is 1.75 mm. 5 mm length of the product The 4 mm is at most 7.6 mm. 8-SOIC (0.154", 3.90mm Width) Operational temperature range: - Surface Mount mounting type Versatile General Purpose applications for maximum usability Number of channels: 6 Channel Supplier device package: 8-SOIC Bidirectional-Channels The Voltage-Reverse-Standoff-Typ is set at a maximum of 5V. The Voltage-Breakdown-Min is 6.1V. No Power-Line-Protection - Capacitance-Frequency Power-off control: 200 W Maximum operating temperature of + 125 C Minimum operating temperature: - 55 C Breakdown-Voltage: 6.1 V The Cd-Diode-Capacitance is 140 pF 5 V working voltage Polarity: Bidirectional

ESDA6V1U1RL Image

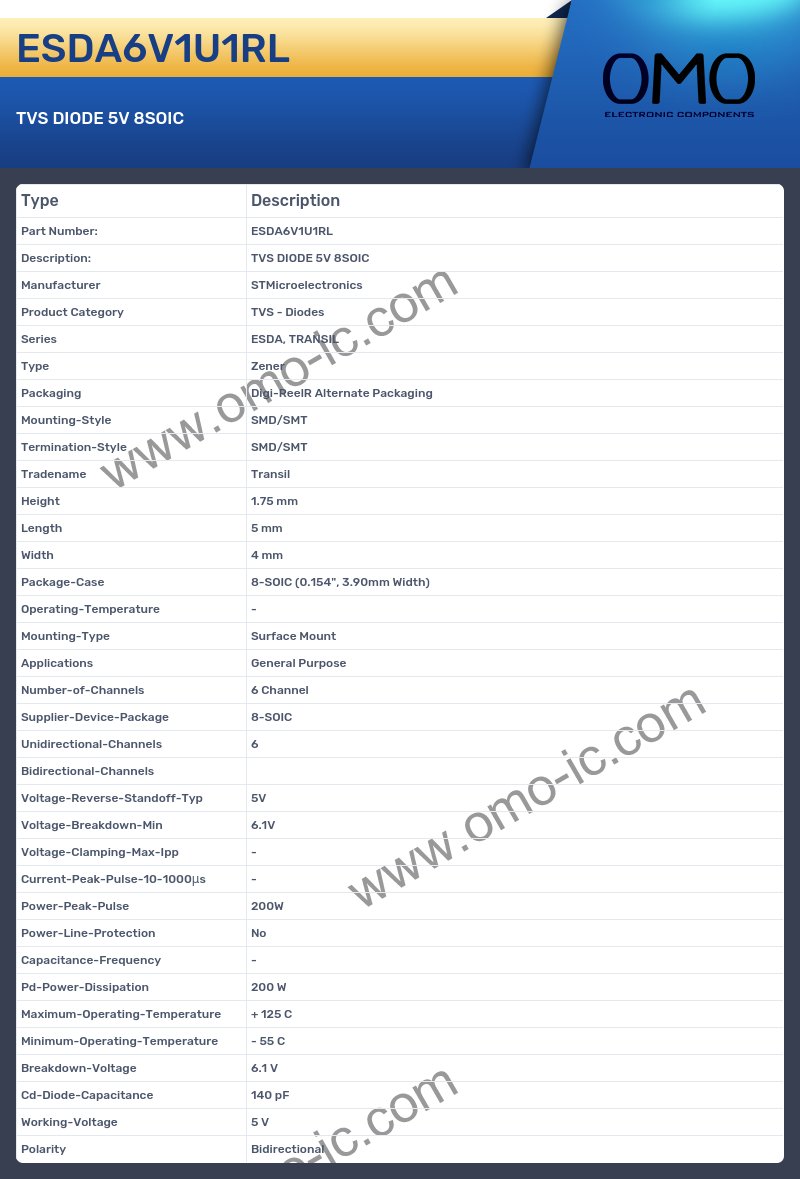

ESDA6V1U1RL Specifications

• Manufacturer STMicroelectronics
• Product Category TVS - Diodes
• Series ESDA, TRANSIL
• Type Zener
• Packaging Digi-ReelR Alternate Packaging
• Mounting-Style SMD/SMT
• Termination-Style SMD/SMT
• Tradename Transil
• Height 1.75 mm
• Length 5 mm
• Width 4 mm
• Package-Case 8-SOIC (0.154", 3.90mm Width)
• Operating-Temperature -
• Mounting-Type Surface Mount
• Applications General Purpose
• Number-of-Channels 6 Channel
• Supplier-Device-Package 8-SOIC
• Unidirectional-Channels 6
• Bidirectional-Channels
• Voltage-Reverse-Standoff-Typ 5V
• Voltage-Breakdown-Min 6.1V
• Voltage-Clamping-Max-Ipp -
• Current-Peak-Pulse-10-1000μs -
• Power-Peak-Pulse 200W
• Power-Line-Protection No
• Capacitance-Frequency -
• Pd-Power-Dissipation 200 W
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 55 C
• Breakdown-Voltage 6.1 V
• Cd-Diode-Capacitance 140 pF
• Working-Voltage 5 V
• Polarity Bidirectional
