DSPIC30F2023-20E/ML

DSPIC30F2023-20E/ML Overview

Product belongs to the dsPIC 30F series. Tube is the packaging method for this product 44-VQFN Exposed Pad Operational temperature range: -40°C ~ 125°C (TA) Supplier device package: 44-QFN (8x8) This product has 35 I/O ports for versatile connectivity. Operating frequency: 20 MIPS Program memory type: FLASH I2C, IrDA, LIN, SPI, UART/USART interface Supply Voltage: 3 V ~ 5.5 V 16-Bit architecture Internal oscillator type

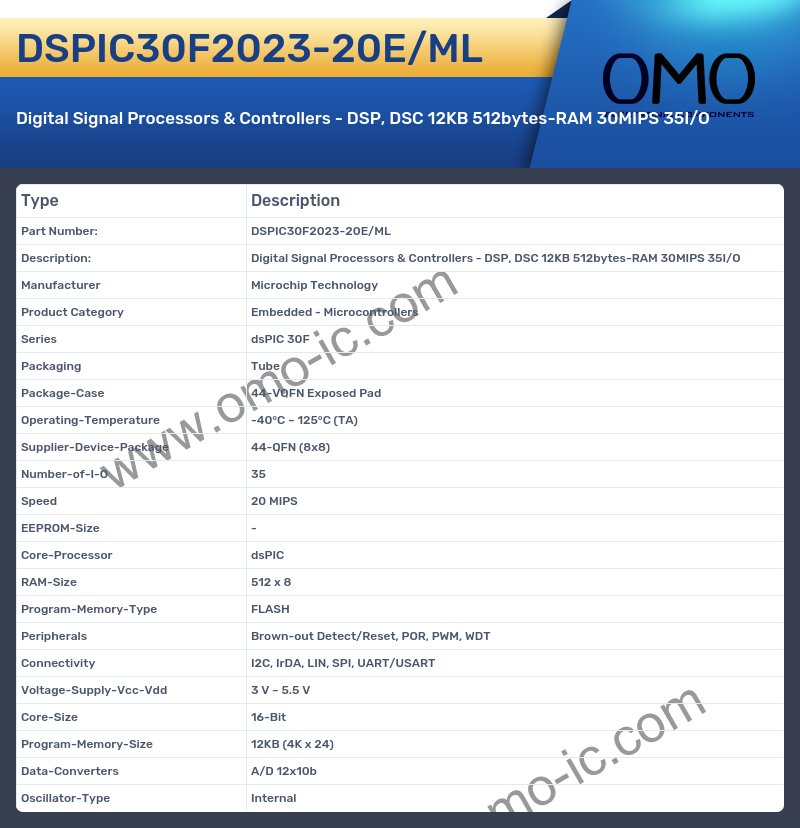

DSPIC30F2023-20E/ML Image

DSPIC30F2023-20E/ML Specifications

• Manufacturer Microchip Technology
• Product Category Embedded - Microcontrollers
• Series dsPIC 30F
• Packaging Tube
• Package-Case 44-VQFN Exposed Pad
• Operating-Temperature -40°C ~ 125°C (TA)
• Supplier-Device-Package 44-QFN (8x8)
• Number-of-I-O 35
• Speed 20 MIPS
• EEPROM-Size -
• Core-Processor dsPIC
• RAM-Size 512 x 8
• Program-Memory-Type FLASH
• Peripherals Brown-out Detect/Reset, POR, PWM, WDT
• Connectivity I2C, IrDA, LIN, SPI, UART/USART
• Voltage-Supply-Vcc-Vdd 3 V ~ 5.5 V
• Core-Size 16-Bit
• Program-Memory-Size 12KB (4K x 24)
• Data-Converters A/D 12x10b
• Oscillator-Type Internal
