DRV8813PWP

DRV8813PWP Overview

Product belongs to the DRV8813 series. This product is categorized as Stepper Motor Controllers / Drivers Type: Dual Bridge DC Motor Driver Tube Alternate Packaging is the packaging method for this product Weight of 0.004233 oz SMD/SMT Mounting-Style Wide - 40 C to + 85 C operating temperature range for diverse applications HTSSOP-28 Power MOSFET is the technology used. Operational temperature range: -40°C ~ 150°C (TJ) Surface Mount mounting type Product function is Driver - Fully Integrated, Control and Power Stage. Versatile General Purpose applications for maximum usability Interface: Parallel Voltage Supply Range: 8.2 V ~ 45 V Supplier device package: 28-HTSSOP Number-of-Outputs: 2 Output The Half Bridge (4). Voltage-Load range is 8.2 V ~ 45 V. Brushed DC motor type is used for high-performance and efficient operation. This product operates at a 8.2 V to 45 V supply voltage for reliable performance. 5 mA is 92 nA. The operating frequency is 50 KHz. Output current: 1.75 A The DRV8813EVM.

DRV8813PWP Image

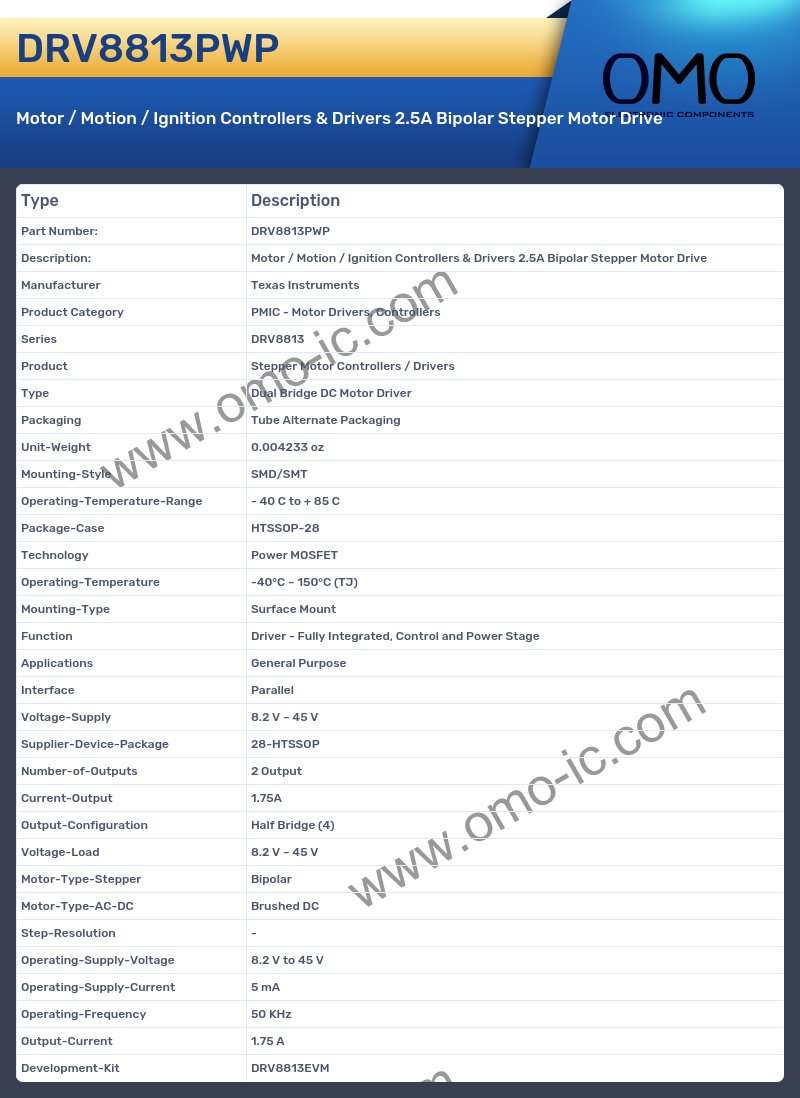

DRV8813PWP Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Motor Drivers, Controllers
• Series DRV8813
• Product Stepper Motor Controllers / Drivers
• Type Dual Bridge DC Motor Driver
• Packaging Tube Alternate Packaging
• Unit-Weight 0.004233 oz
• Mounting-Style SMD/SMT
• Operating-Temperature-Range - 40 C to + 85 C
• Package-Case HTSSOP-28
• Technology Power MOSFET
• Operating-Temperature -40°C ~ 150°C (TJ)
• Mounting-Type Surface Mount
• Function Driver - Fully Integrated, Control and Power Stage
• Applications General Purpose
• Interface Parallel
• Voltage-Supply 8.2 V ~ 45 V
• Supplier-Device-Package 28-HTSSOP
• Number-of-Outputs 2 Output
• Current-Output 1.75A
• Output-Configuration Half Bridge (4)
• Voltage-Load 8.2 V ~ 45 V
• Motor-Type-Stepper Bipolar
• Motor-Type-AC-DC Brushed DC
• Step-Resolution -
• Operating-Supply-Voltage 8.2 V to 45 V
• Operating-Supply-Current 5 mA
• Operating-Frequency 50 KHz
• Output-Current 1.75 A
• Development-Kit DRV8813EVM
