DCP022405P Overview

Product belongs to the DCP02 series. This product is categorized as Isolated Type: Isolated Module Tube is the packaging method for this product Through Hole Mounting-Style Wide - 40 C to + 85 C operating temperature range for diverse applications 14-DIP (0.300", 7.62mm) (7 Leads) Operational temperature range: -40°C ~ 85°C Through Hole mounting type Versatile ITE (Commercial) applications for maximum usability Number-of-Outputs: 1 Our product delivers a 400mA of 50mA for efficient power management. The minimum input voltage is 21.6V. The 26.4V. This product is designed with 1kV (1000V) voltage isolation for maximum safety and reliability. 5V output voltage Input Voltage Range: 21.6 V to 26.4 V 5.35 V output voltage for channel 1 Current output of channel 1 is 400 mA . Isolation voltage of 1 kV PDIP-7 package-case-size

DCP022405P Image

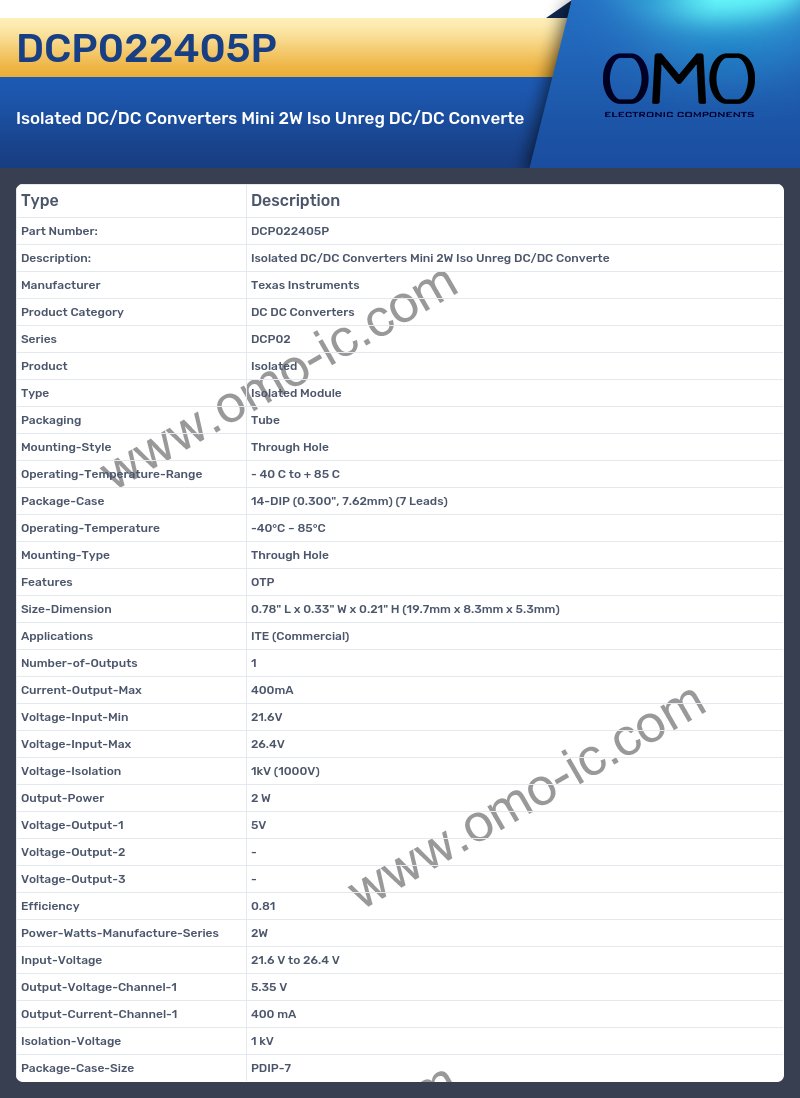

DCP022405P Specifications

• Manufacturer Texas Instruments
• Product Category DC DC Converters
• Series DCP02
• Product Isolated
• Type Isolated Module
• Packaging Tube
• Mounting-Style Through Hole
• Operating-Temperature-Range - 40 C to + 85 C
• Package-Case 14-DIP (0.300", 7.62mm) (7 Leads)
• Operating-Temperature -40°C ~ 85°C
• Mounting-Type Through Hole
• Features OTP
• Size-Dimension 0.78" L x 0.33" W x 0.21" H (19.7mm x 8.3mm x 5.3mm)
• Applications ITE (Commercial)
• Number-of-Outputs 1
• Current-Output-Max 400mA
• Voltage-Input-Min 21.6V
• Voltage-Input-Max 26.4V
• Voltage-Isolation 1kV (1000V)
• Output-Power 2 W
• Voltage-Output-1 5V
• Voltage-Output-2 -
• Voltage-Output-3 -
• Efficiency 0.81
• Power-Watts-Manufacture-Series 2W
• Input-Voltage 21.6 V to 26.4 V
• Output-Voltage-Channel-1 5.35 V
• Output-Current-Channel-1 400 mA
• Isolation-Voltage 1 kV
• Package-Case-Size PDIP-7
