DAC902UG4 Overview

Product belongs to the SpeedPlus series. Tube Alternate Packaging is the packaging method for this product 28-SOIC (0.295", 7.50mm Width) Operational temperature range: -40°C ~ 85°C Output-Type: Current - Unbuffered Supplier device package: 28-SOIC Data-Interface: Parallel 12 bits The Voltage-Supply-Analog is 2.7 V ~ 5.5 V. The Voltage Supply Digital for this product is 2.7 V ~ 5.5 V. The architecture of this product is Current Source . External, Internal is the reference type. Number of D-A converters: 1 The 30μs (Typ) is an impressive 15 us. Yes Differential-Output

DAC902UG4 Image

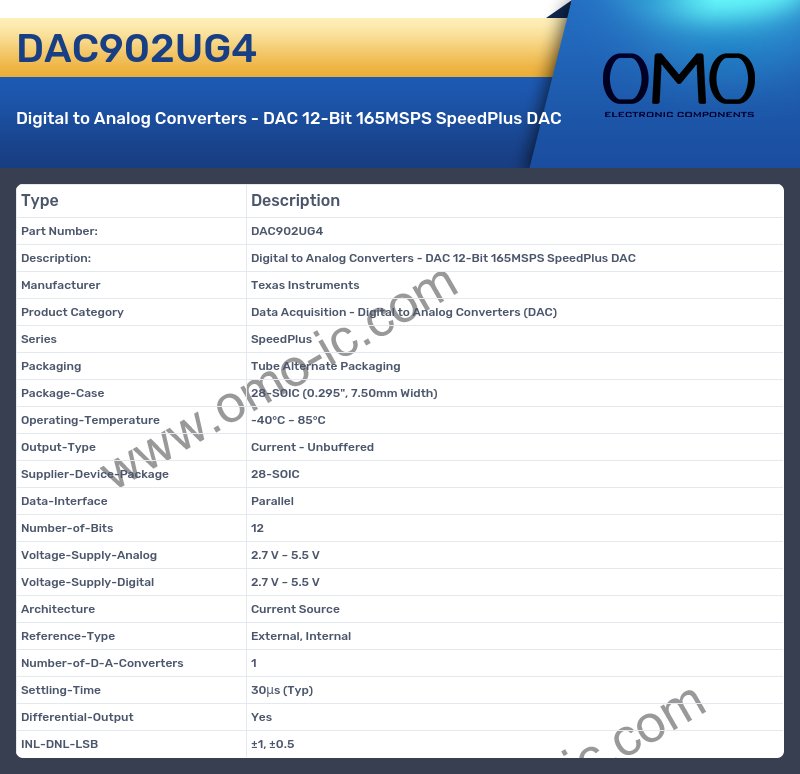

DAC902UG4 Specifications

• Manufacturer Texas Instruments
• Product Category Data Acquisition - Digital to Analog Converters (DAC)
• Series SpeedPlus
• Packaging Tube Alternate Packaging
• Package-Case 28-SOIC (0.295", 7.50mm Width)
• Operating-Temperature -40°C ~ 85°C
• Output-Type Current - Unbuffered
• Supplier-Device-Package 28-SOIC
• Data-Interface Parallel
• Number-of-Bits 12
• Voltage-Supply-Analog 2.7 V ~ 5.5 V
• Voltage-Supply-Digital 2.7 V ~ 5.5 V
• Architecture Current Source
• Reference-Type External, Internal
• Number-of-D-A-Converters 1
• Settling-Time 30μs (Typ)
• Differential-Output Yes
• INL-DNL-LSB ±1, ±0.5
