DAC8760IRHAT Overview

Product belongs to the DAC8760 series. This product is categorized as Digital to Analog Converters Tape & Reel (TR) Alternate Packaging is the packaging method for this product Weight of 0.003668 oz SMD/SMT Mounting-Style VQFN-40 Operational temperature range: -40°C ~ 125°C Output-Type: Voltage or Current - Buffered Number of channels: 1 Channel Supplier device package: 40-VQFN (6x6) Data-Interface: SPI, DSP 16 bits The Voltage-Supply-Analog is 10 V ~ 36 V, -18V. The Voltage Supply Digital for this product is 2.7 V ~ 5.5 V. The architecture of this product is String DAC . External, Internal is the reference type. Number of D-A converters: 1 The 25μs (Typ) is an impressive 15 us. No Differential-Output Power-off control: 170 mW Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Serial SPI interface type The DAC8760EVM. Number-of-Converters: 1 Converter Reference voltage is 5 V . Differential nonlinearity: 1 LSB

DAC8760IRHAT Image

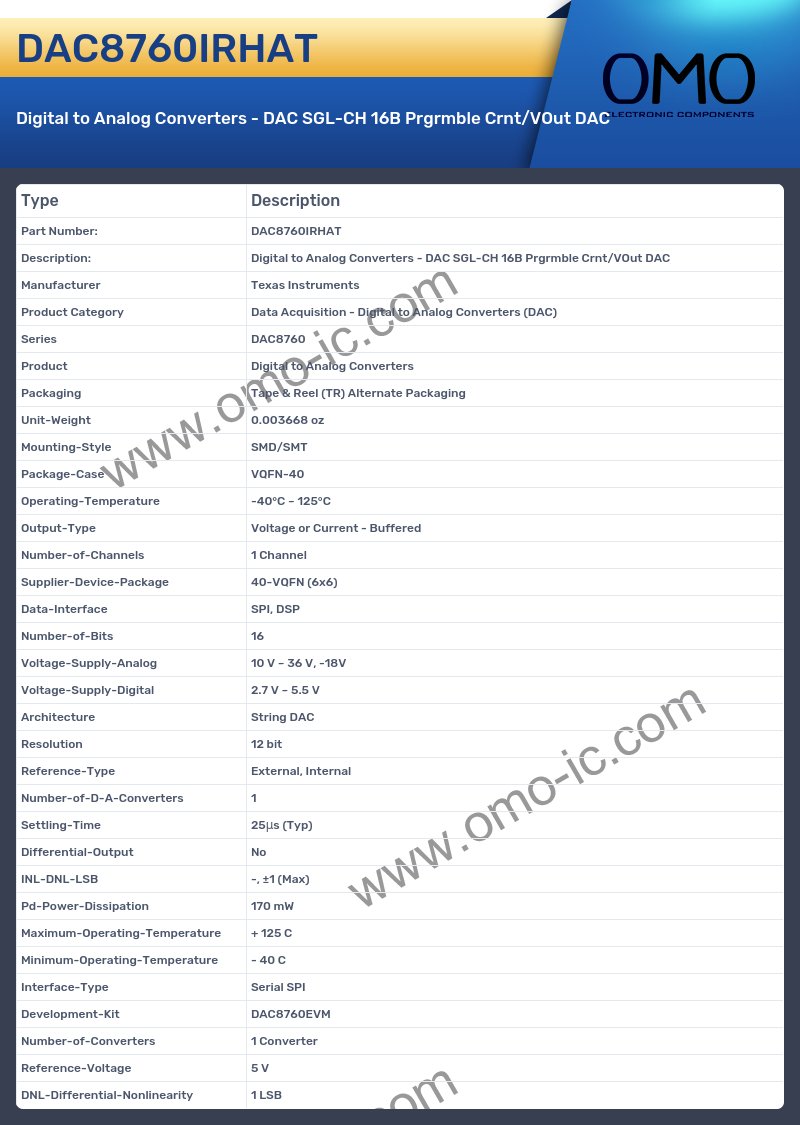

DAC8760IRHAT Specifications

• Manufacturer Texas Instruments
• Product Category Data Acquisition - Digital to Analog Converters (DAC)
• Series DAC8760
• Product Digital to Analog Converters
• Packaging Tape & Reel (TR) Alternate Packaging
• Unit-Weight 0.003668 oz
• Mounting-Style SMD/SMT
• Package-Case VQFN-40
• Operating-Temperature -40°C ~ 125°C
• Output-Type Voltage or Current - Buffered
• Number-of-Channels 1 Channel
• Supplier-Device-Package 40-VQFN (6x6)
• Data-Interface SPI, DSP
• Number-of-Bits 16
• Voltage-Supply-Analog 10 V ~ 36 V, -18V
• Voltage-Supply-Digital 2.7 V ~ 5.5 V
• Architecture String DAC
• Resolution 12 bit
• Reference-Type External, Internal
• Number-of-D-A-Converters 1
• Settling-Time 25μs (Typ)
• Differential-Output No
• INL-DNL-LSB -, ±1 (Max)
• Pd-Power-Dissipation 170 mW
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Interface-Type Serial SPI
• Development-Kit DAC8760EVM
• Number-of-Converters 1 Converter
• Reference-Voltage 5 V
• DNL-Differential-Nonlinearity 1 LSB
