DAC8221FP

DAC8221FP Overview

Product belongs to the DAC8221 series. This product is categorized as Digital to Analog Converters Tube is the packaging method for this product Weight of 0.131925 oz Through Hole Mounting-Style PDIP-24 Operational temperature range: -40°C ~ 85°C Output-Type: Current - Unbuffered Supplier device package: 24-PDIP Data-Interface: Parallel 12 bits The Voltage-Supply-Analog is 5 V ~ 15 V. The Voltage Supply Digital for this product is 5 V ~ 15 V. The architecture of this product is R-2R . External is the reference type. Number of D-A converters: 2 The 1μs is an impressive 15 us. No Differential-Output

DAC8221FP Image

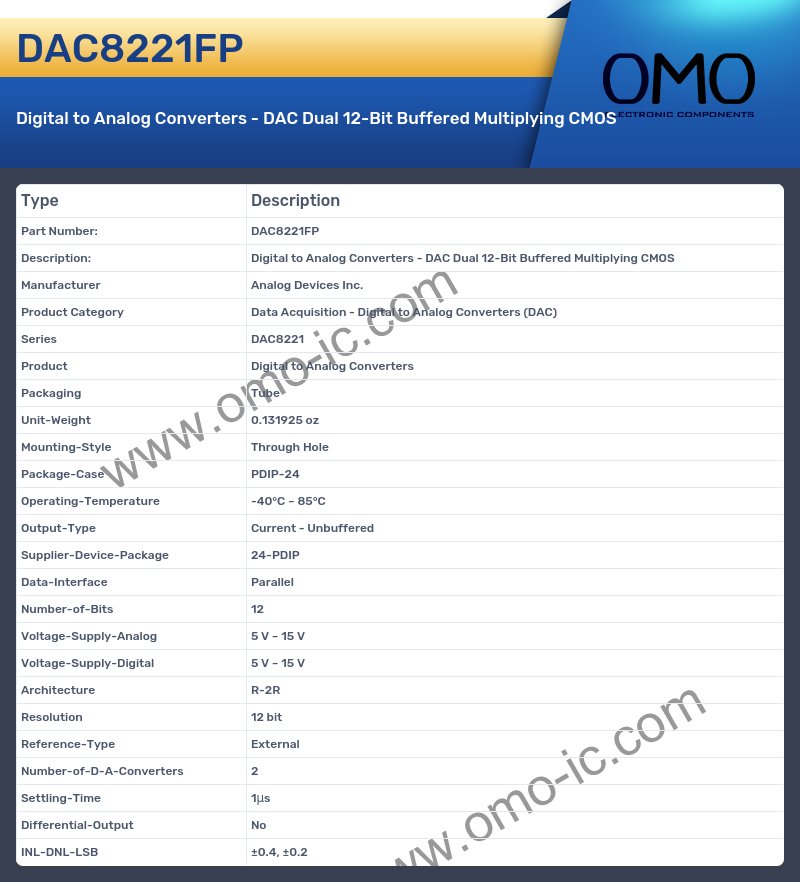

DAC8221FP Specifications

• Manufacturer Analog Devices Inc.
• Product Category Data Acquisition - Digital to Analog Converters (DAC)
• Series DAC8221
• Product Digital to Analog Converters
• Packaging Tube
• Unit-Weight 0.131925 oz
• Mounting-Style Through Hole
• Package-Case PDIP-24
• Operating-Temperature -40°C ~ 85°C
• Output-Type Current - Unbuffered
• Supplier-Device-Package 24-PDIP
• Data-Interface Parallel
• Number-of-Bits 12
• Voltage-Supply-Analog 5 V ~ 15 V
• Voltage-Supply-Digital 5 V ~ 15 V
• Architecture R-2R
• Resolution 12 bit
• Reference-Type External
• Number-of-D-A-Converters 2
• Settling-Time 1μs
• Differential-Output No
• INL-DNL-LSB ±0.4, ±0.2
