DAC3484IRKD25 Overview

Product belongs to the DAC3484 series. This product is categorized as Digital to Analog Converters Tape & Reel (TR) Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style WQFN-88 Operational temperature range: -40°C ~ 85°C Output-Type: Current - Unbuffered Number of channels: 4 Channel Supplier device package: 88-WQFN (9x9) Data-Interface: LVDS - Parallel 16 bits The Voltage-Supply-Analog is 3.14 V ~ 3.46 V. The Voltage Supply Digital for this product is 1.14 V ~ 1.32 V. The architecture of this product is Current Source . External, Internal is the reference type. Number of D-A converters: 4 The 10μs (Typ) is an impressive 15 us. Yes Differential-Output Power-off control: 980 mW Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Parallel interface type The DAC3484EVM. Maximum supply voltage of 3.3 V Minimum supply voltage is 1.2 V Number-of-Converters: 4 Converter 1.25 GS/s Sampling Rate

DAC3484IRKD25 Image

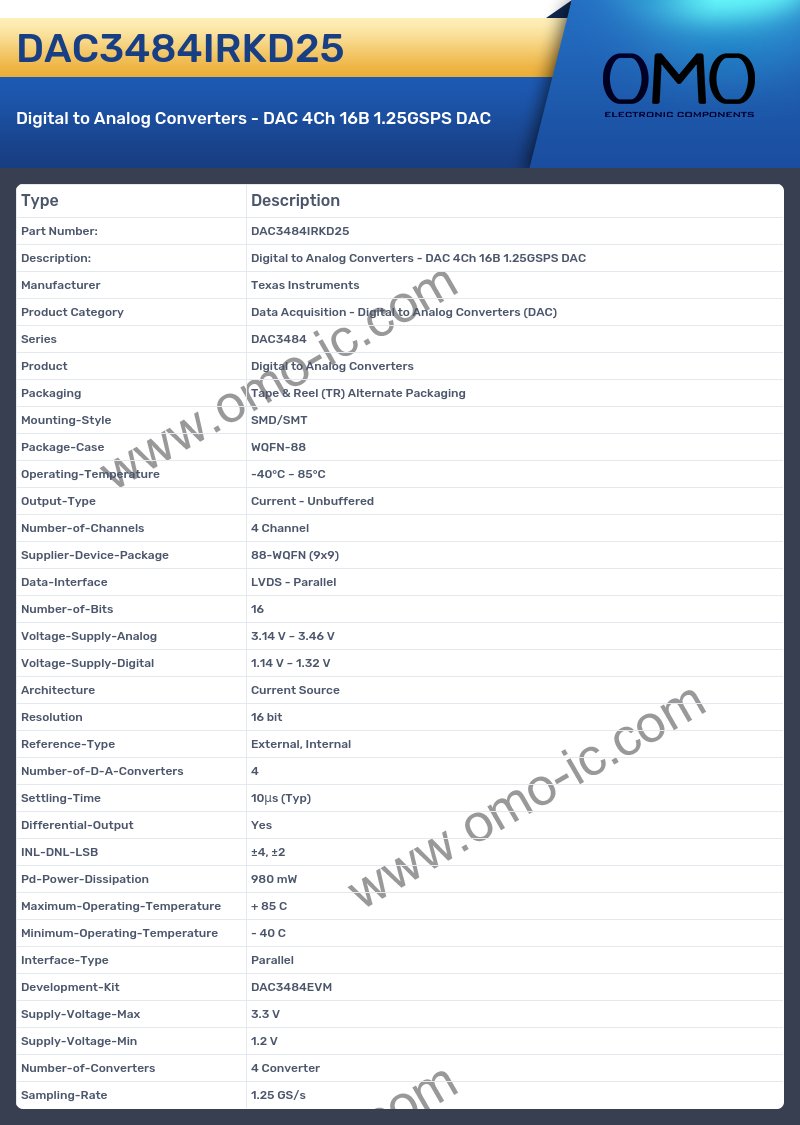

DAC3484IRKD25 Specifications

• Manufacturer Texas Instruments
• Product Category Data Acquisition - Digital to Analog Converters (DAC)
• Series DAC3484
• Product Digital to Analog Converters
• Packaging Tape & Reel (TR) Alternate Packaging
• Mounting-Style SMD/SMT
• Package-Case WQFN-88
• Operating-Temperature -40°C ~ 85°C
• Output-Type Current - Unbuffered
• Number-of-Channels 4 Channel
• Supplier-Device-Package 88-WQFN (9x9)
• Data-Interface LVDS - Parallel
• Number-of-Bits 16
• Voltage-Supply-Analog 3.14 V ~ 3.46 V
• Voltage-Supply-Digital 1.14 V ~ 1.32 V
• Architecture Current Source
• Resolution 16 bit
• Reference-Type External, Internal
• Number-of-D-A-Converters 4
• Settling-Time 10μs (Typ)
• Differential-Output Yes
• INL-DNL-LSB ±4, ±2
• Pd-Power-Dissipation 980 mW
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Interface-Type Parallel
• Development-Kit DAC3484EVM
• Supply-Voltage-Max 3.3 V
• Supply-Voltage-Min 1.2 V
• Number-of-Converters 4 Converter
• Sampling-Rate 1.25 GS/s
