DAC10GPZ

DAC10GPZ Overview

Product belongs to the DAC10 series. This product is categorized as Digital to Analog Converters Tube is the packaging method for this product Weight of 0.044801 oz Through Hole Mounting-Style PDIP-18 Operational temperature range: 0°C ~ 70°C Output-Type: Current - Unbuffered Number of channels: 1 Channel Supplier device package: 18-PDIP Data-Interface: Parallel 10 bits The Voltage-Supply-Analog is ±18 V. The Voltage Supply Digital for this product is -. The architecture of this product is Multiplying DAC . External is the reference type. Number of D-A converters: 1 The 150μs is an impressive 15 us. Yes Differential-Output Power-off control: 285 mW Maximum operating temperature of + 70 C Minimum operating temperature: 0 C 2.3 mA is 92 nA. Parallel interface type Maximum supply voltage of 36 V Minimum supply voltage is 6 V Number-of-Converters: 1 Converter Reference voltage is - 17 V to + 16 V .

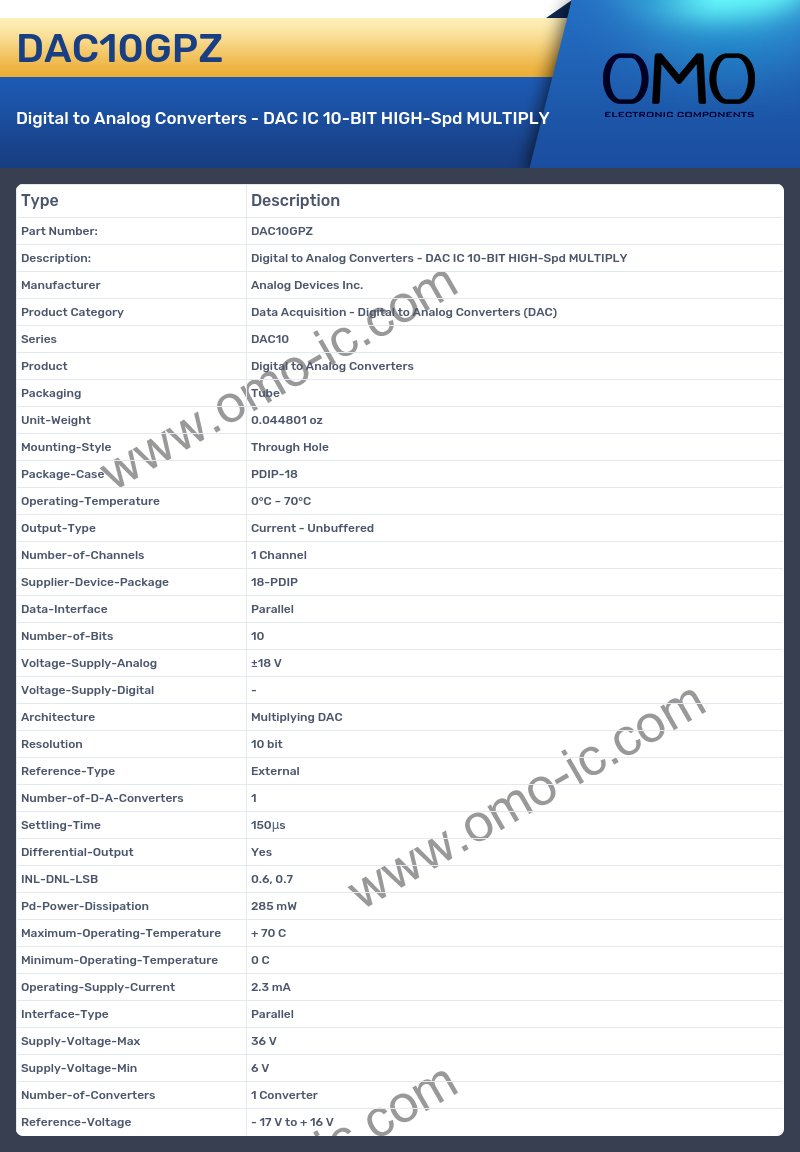

DAC10GPZ Image

DAC10GPZ Specifications

• Manufacturer Analog Devices Inc.
• Product Category Data Acquisition - Digital to Analog Converters (DAC)
• Series DAC10
• Product Digital to Analog Converters
• Packaging Tube
• Unit-Weight 0.044801 oz
• Mounting-Style Through Hole
• Package-Case PDIP-18
• Operating-Temperature 0°C ~ 70°C
• Output-Type Current - Unbuffered
• Number-of-Channels 1 Channel
• Supplier-Device-Package 18-PDIP
• Data-Interface Parallel
• Number-of-Bits 10
• Voltage-Supply-Analog ±18 V
• Voltage-Supply-Digital -
• Architecture Multiplying DAC
• Resolution 10 bit
• Reference-Type External
• Number-of-D-A-Converters 1
• Settling-Time 150μs
• Differential-Output Yes
• INL-DNL-LSB 0.6, 0.7
• Pd-Power-Dissipation 285 mW
• Maximum-Operating-Temperature + 70 C
• Minimum-Operating-Temperature 0 C
• Operating-Supply-Current 2.3 mA
• Interface-Type Parallel
• Supply-Voltage-Max 36 V
• Supply-Voltage-Min 6 V
• Number-of-Converters 1 Converter
• Reference-Voltage - 17 V to + 16 V
