D44H11

D44H11 Overview

Product belongs to the 500V Transistors series. Tube is the packaging method for this product Weight of 0.211644 oz Through Hole Mounting-Style TO-220-3 Through Hole mounting type Supplier device package: TO-220AB Configuration Single Transistor type: NPN Maximum current collector Ic is 10A . Maximum collector-emitter breakdown voltage of 80V DC current gain minimum (hFE) of Ic/Vce at 40 @ 4A, 1V. Product Attribute: Vce-Saturation-Max-Ib-Ic: 1V @ 400mA, 8A Power-off control: 50 W Maximum operating temperature of + 150 C Minimum operating temperature: - 65 C Rated VCEO up to 80 V The transistor polarity is NPN. Saturation voltage between collector and emitter is 1 V The 80 V voltage rating is 40 V. 5 V rating of 5 V Max DC collector current: 20 A This product is capable of handling a 10 A continuous collector current. Minimum hfe for DC collector-base gain is 60.

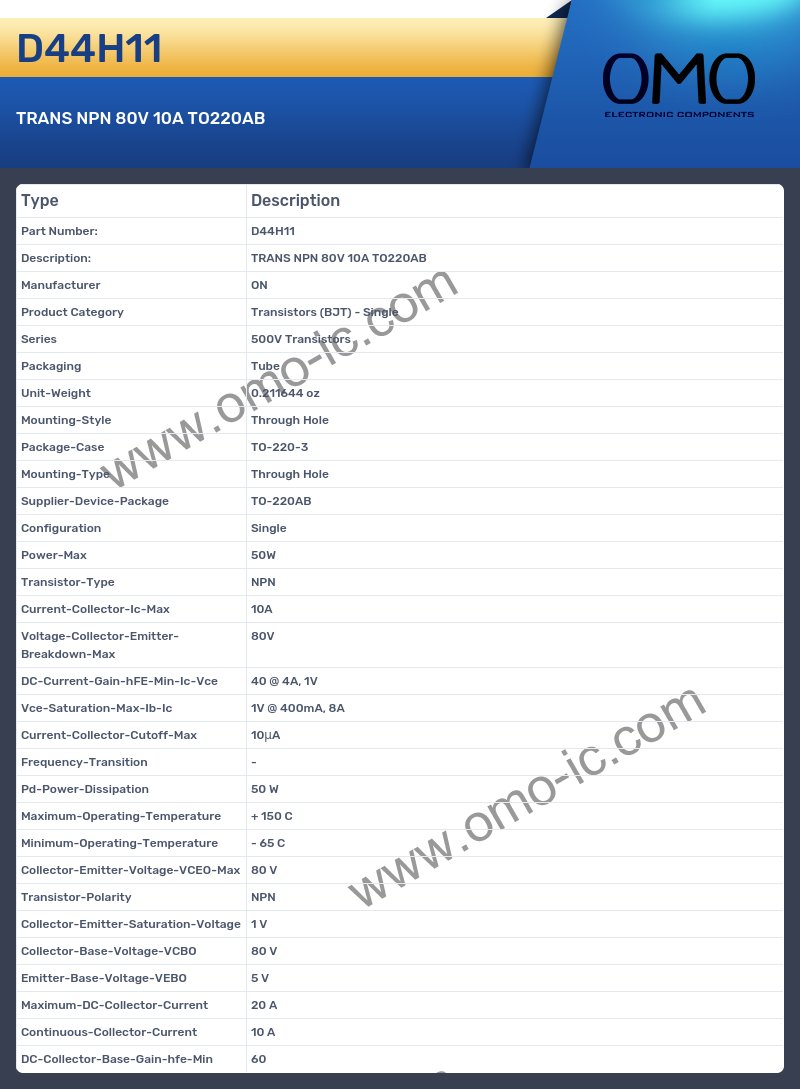

D44H11 Image

D44H11 Specifications

• Manufacturer ON
• Product Category Transistors (BJT) - Single
• Series 500V Transistors
• Packaging Tube
• Unit-Weight 0.211644 oz
• Mounting-Style Through Hole
• Package-Case TO-220-3
• Mounting-Type Through Hole
• Supplier-Device-Package TO-220AB
• Configuration Single
• Power-Max 50W
• Transistor-Type NPN
• Current-Collector-Ic-Max 10A
• Voltage-Collector-Emitter-Breakdown-Max 80V
• DC-Current-Gain-hFE-Min-Ic-Vce 40 @ 4A, 1V
• Vce-Saturation-Max-Ib-Ic 1V @ 400mA, 8A
• Current-Collector-Cutoff-Max 10μA
• Frequency-Transition -
• Pd-Power-Dissipation 50 W
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature - 65 C
• Collector-Emitter-Voltage-VCEO-Max 80 V
• Transistor-Polarity NPN
• Collector-Emitter-Saturation-Voltage 1 V
• Collector-Base-Voltage-VCBO 80 V
• Emitter-Base-Voltage-VEBO 5 V
• Maximum-DC-Collector-Current 20 A
• Continuous-Collector-Current 10 A
• DC-Collector-Base-Gain-hfe-Min 60
