CSD96371Q5M

CSD96371Q5M Overview

Product belongs to the NexFET series. Digi-ReelR Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style Trade name: NexFET. 22-PowerLFDFN Power MOSFET is the technology used. Operational temperature range: -40°C ~ 150°C (TJ) Surface Mount mounting type Versatile Synchronous Buck Converters applications for maximum usability Interface: PWM Voltage Supply Range: 4.5 V ~ 5.5 V Supplier device package: 22-LSON (5x6) Current-Output-Channel is 50A The Half Bridge. This product supports a Inductive of Inductive, Capacitive, Resistive for versatile applications. The -. The product's 75A is 4A. Voltage-Load range is 3.3 V ~ 13.2 V. Maximum operating temperature of + 150 C Minimum operating temperature: - 55 C The - for this product is 12 Ohms.

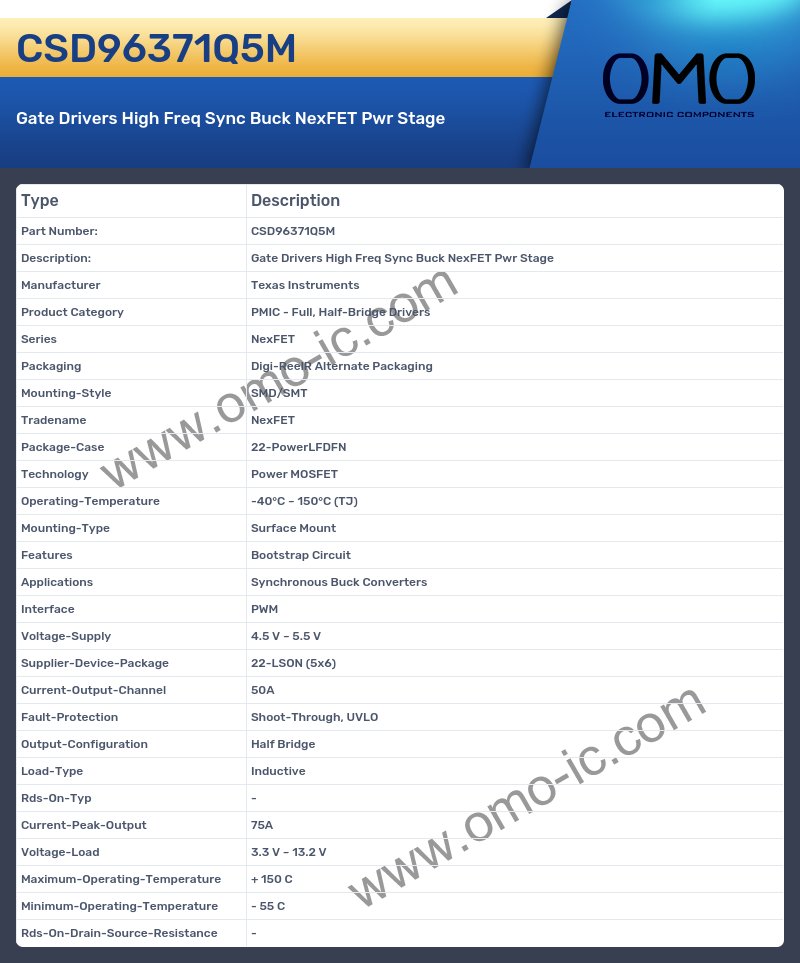

CSD96371Q5M Image

CSD96371Q5M Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Full, Half-Bridge Drivers
• Series NexFET
• Packaging Digi-ReelR Alternate Packaging
• Mounting-Style SMD/SMT
• Tradename NexFET
• Package-Case 22-PowerLFDFN
• Technology Power MOSFET
• Operating-Temperature -40°C ~ 150°C (TJ)
• Mounting-Type Surface Mount
• Features Bootstrap Circuit
• Applications Synchronous Buck Converters
• Interface PWM
• Voltage-Supply 4.5 V ~ 5.5 V
• Supplier-Device-Package 22-LSON (5x6)
• Current-Output-Channel 50A
• Fault-Protection Shoot-Through, UVLO
• Output-Configuration Half Bridge
• Load-Type Inductive
• Rds-On-Typ -
• Current-Peak-Output 75A
• Voltage-Load 3.3 V ~ 13.2 V
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature - 55 C
• Rds-On-Drain-Source-Resistance -
