CSD95372BQ5MT

CSD95372BQ5MT Overview

Product belongs to the NexFET series. Type: NexFET Smart Power Stage Digi-ReelR Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style LSON-12 Clip Power MOSFET is the technology used. Operational temperature range: -55°C ~ 150°C (TJ) Surface Mount mounting type Versatile Synchronous Buck Converters applications for maximum usability Interface: PWM Voltage Supply Range: 4.5 V ~ 5.5 V Supplier device package: 12-LSON (5x6) Configuration PowerStage Current-Output-Channel is 60A The Half Bridge. This product supports a Inductive of Inductive, Capacitive, Resistive for versatile applications. The -. The product's 90A is 4A. Voltage-Load range is 4.5 V ~ 16 V. Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C

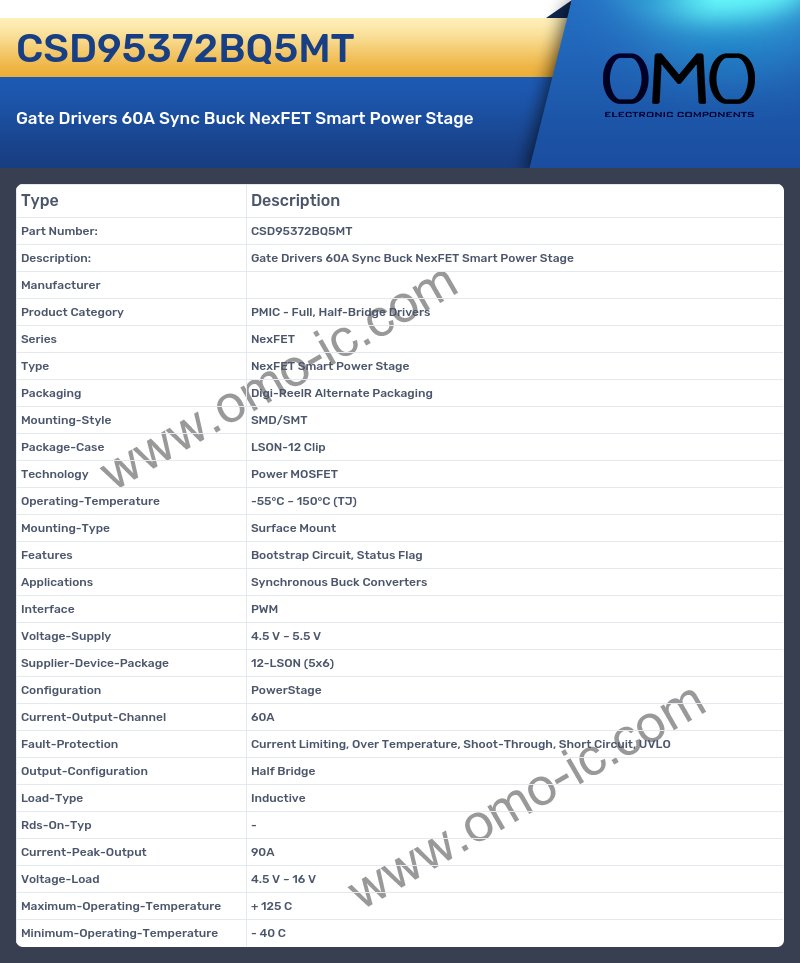

CSD95372BQ5MT Image

CSD95372BQ5MT Specifications

• Manufacturer
• Product Category PMIC - Full, Half-Bridge Drivers
• Series NexFET
• Type NexFET Smart Power Stage
• Packaging Digi-ReelR Alternate Packaging
• Mounting-Style SMD/SMT
• Package-Case LSON-12 Clip
• Technology Power MOSFET
• Operating-Temperature -55°C ~ 150°C (TJ)
• Mounting-Type Surface Mount
• Features Bootstrap Circuit, Status Flag
• Applications Synchronous Buck Converters
• Interface PWM
• Voltage-Supply 4.5 V ~ 5.5 V
• Supplier-Device-Package 12-LSON (5x6)
• Configuration PowerStage
• Current-Output-Channel 60A
• Fault-Protection Current Limiting, Over Temperature, Shoot-Through, Short Circuit, UVLO
• Output-Configuration Half Bridge
• Load-Type Inductive
• Rds-On-Typ -
• Current-Peak-Output 90A
• Voltage-Load 4.5 V ~ 16 V
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
