| Mfr. #: | CSD18503KCS |
|---|---|
| निर्माता: | Texas Instruments |
| विवरण: | MOSFET N-CH 40V 100A TO220-3 |
| जीवन चक्र: | यस निर्माताबाट नयाँ। |
| डाटा पाना: | CSD18503KCS डाटा पाना |
Product belongs to the CSD18503KCS series. Tube is the packaging method for this product Weight of 0.211644 oz Through Hole Mounting-Style Trade name: NexFET. TO-220-3 Si is the technology used. Number of channels: 1 Channel Configuration Single Transistor type: 1 N-Channel Power-off control: 143 W Maximum operating temperature of + 150 C Minimum operating temperature: - 55 C This product has a 6.8 ns of 16 ns. This product has a 5.3 ns of 16 ns. This product's 20 V. The ID of continuous drain current is 130 A. This product has a Vds-Drain-Source-Breakdown-Voltageof 40 V. This product has a 1.9 V Vgs-th gate-source threshold voltage for efficient power management. The 6.8 mOhms for this product is 12 Ohms. The transistor polarity is N-Channel. 'Typical-Turn-Off-Delay-Time' of 14 ns This product has a 5.7 ns. Qg-Gate-Charge is 30 nC. This product features a 98 S of 500 S for high performance.
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

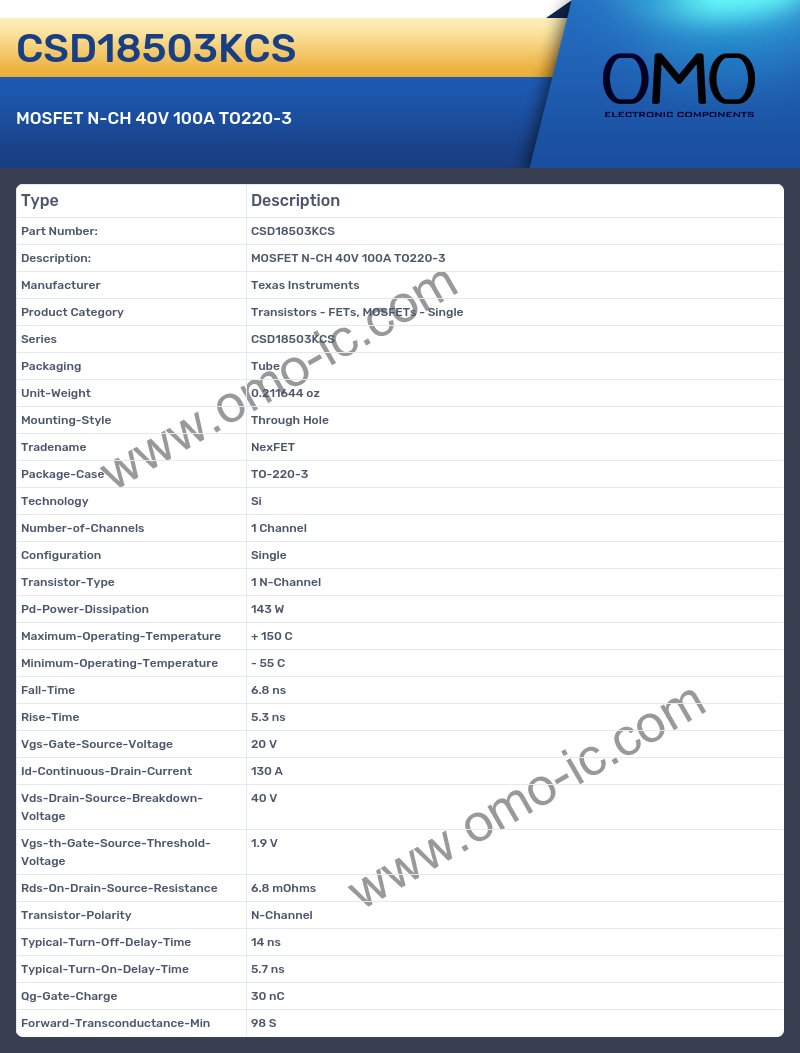

CSD18503KCS Specifications
