| Mfr. #: | CSD15571Q2 |
|---|---|
| निर्माता: | Texas Instruments |
| विवरण: | MOSFET N-CH 20V 22A 6-SON |
| जीवन चक्र: | यस निर्माताबाट नयाँ। |
| डाटा पाना: | CSD15571Q2 डाटा पाना |
Product belongs to the CSD15571Q2 series. Reel is the packaging method for this product SMD/SMT Mounting-Style Trade name: NexFET. WSON-FET-6 Si is the technology used. Number of channels: 1 Channel Configuration Single Transistor type: 1 N-Channel Power-off control: 2.5 W Maximum operating temperature of + 150 C Minimum operating temperature: - 55 C This product has a 4.1 ns of 16 ns. This product has a 17.2 ns of 16 ns. This product's 20 V. The ID of continuous drain current is 52 A. This product has a Vds-Drain-Source-Breakdown-Voltageof 20 V. This product has a 1.45 V Vgs-th gate-source threshold voltage for efficient power management. The 19.2 mOhms for this product is 12 Ohms. The transistor polarity is N-Channel. 'Typical-Turn-Off-Delay-Time' of 9.9 ns This product has a 17.2 ns. Qg-Gate-Charge is 2.5 nC.
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

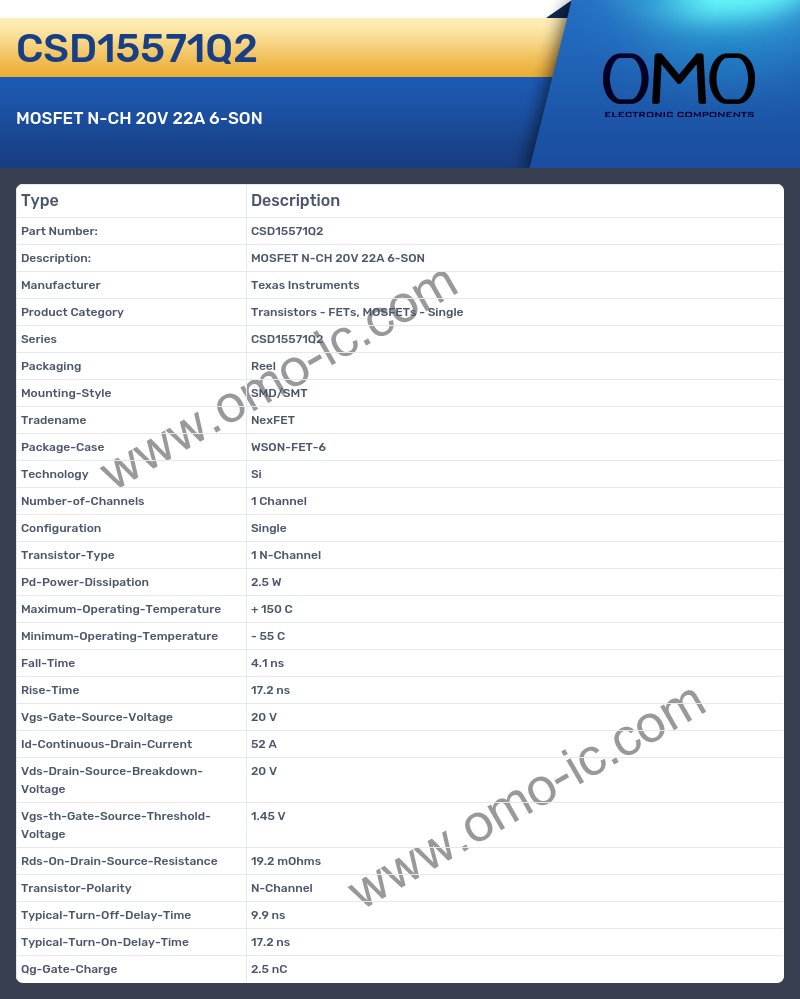

CSD15571Q2 Specifications
