CDCE421ARGET Overview

Product belongs to the CDCE421A series. Type: Clock Generator Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.001601 oz SMD/SMT Mounting-Style VQFN-24 Operational temperature range: -40°C ~ 85°C Surface Mount mounting type Voltage Supply Range: 3 V ~ 3.6 V Supplier device package: 24-VQFN (4x4) Input type: LVCMOS, Crystal The LVDS, LVPECL. 1 is 8. The Ratio-Input:Output for this product is 1899/12/30 1:01:00. Differential input and output are both available: No/Yes Maximum frequency of 1.2GHz Yes/Yes Divider-Multiplier Number-of-Outputs: 1 Output Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C 91 mA is 92 nA. The CDCE421AEVM. Maximum supply voltage of 3.6 V Minimum supply voltage is 3 V Maximum-Input-Frequency: 38.33 MHz Maximum output frequency is 1100 MHz. LVDS LVPECL is the output level. This product has an LVCMOS Crystal for easy integration with other devices.

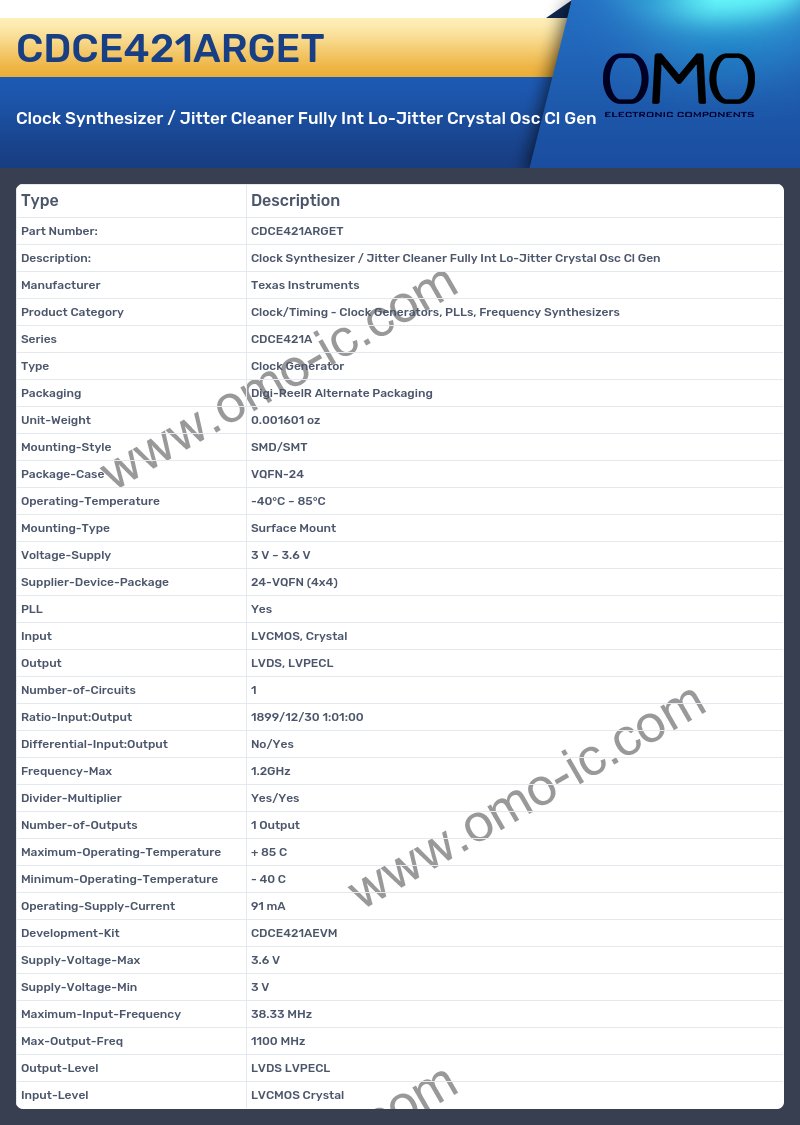

CDCE421ARGET Image

CDCE421ARGET Specifications

• Manufacturer Texas Instruments
• Product Category Clock/Timing - Clock Generators, PLLs, Frequency Synthesizers
• Series CDCE421A
• Type Clock Generator
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.001601 oz
• Mounting-Style SMD/SMT
• Package-Case VQFN-24
• Operating-Temperature -40°C ~ 85°C
• Mounting-Type Surface Mount
• Voltage-Supply 3 V ~ 3.6 V
• Supplier-Device-Package 24-VQFN (4x4)
• PLL Yes
• Input LVCMOS, Crystal
• Output LVDS, LVPECL
• Number-of-Circuits 1
• Ratio-Input:Output 1899/12/30 1:01:00
• Differential-Input:Output No/Yes
• Frequency-Max 1.2GHz
• Divider-Multiplier Yes/Yes
• Number-of-Outputs 1 Output
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Current 91 mA
• Development-Kit CDCE421AEVM
• Supply-Voltage-Max 3.6 V
• Supply-Voltage-Min 3 V
• Maximum-Input-Frequency 38.33 MHz
• Max-Output-Freq 1100 MHz
• Output-Level LVDS LVPECL
• Input-Level LVCMOS Crystal
