CD74HCT132EE4

CD74HCT132EE4 Overview

Product belongs to the 74HCT series. Tube Alternate Packaging is the packaging method for this product 14-DIP (0.300", 7.62mm) Operational temperature range: -55°C ~ 125°C Through Hole mounting type Voltage Supply Range: 4.5 V ~ 5.5 V Supplier device package: 14-PDIP 4 is 8. 2μA maximum quiescent current. NAND Gate logic type 0.5 V ~ 0.6 V is a Logic-Level-Low; 1.9 V ~ 2.1 V is the Logic-Level-High

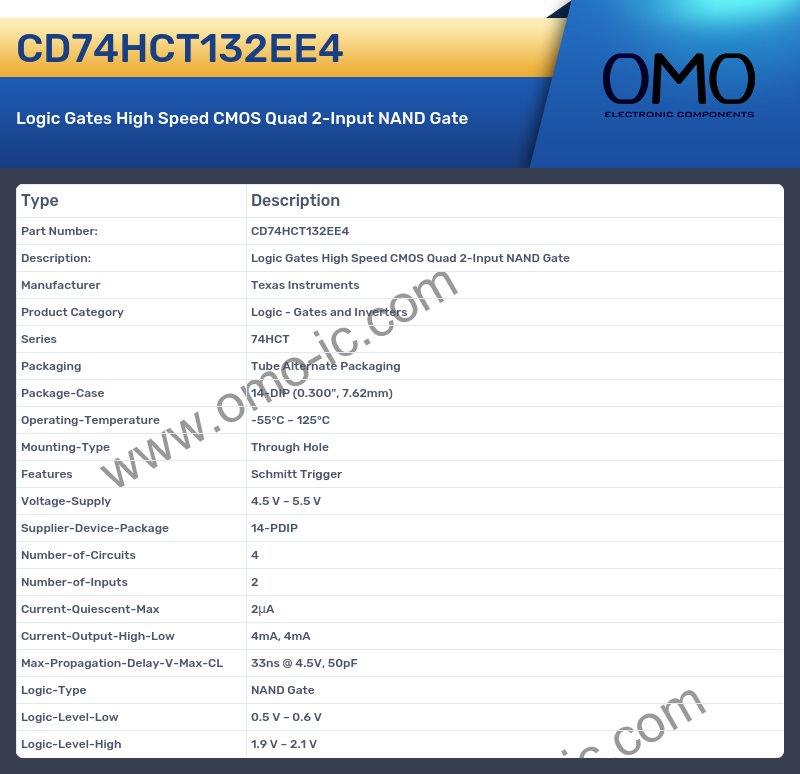

CD74HCT132EE4 Image

CD74HCT132EE4 Specifications

• Manufacturer Texas Instruments
• Product Category Logic - Gates and Inverters
• Series 74HCT
• Packaging Tube Alternate Packaging
• Package-Case 14-DIP (0.300", 7.62mm)
• Operating-Temperature -55°C ~ 125°C
• Mounting-Type Through Hole
• Features Schmitt Trigger
• Voltage-Supply 4.5 V ~ 5.5 V
• Supplier-Device-Package 14-PDIP
• Number-of-Circuits 4
• Number-of-Inputs 2
• Current-Quiescent-Max 2μA
• Current-Output-High-Low 4mA, 4mA
• Max-Propagation-Delay-V-Max-CL 33ns @ 4.5V, 50pF
• Logic-Type NAND Gate
• Logic-Level-Low 0.5 V ~ 0.6 V
• Logic-Level-High 1.9 V ~ 2.1 V
