BTW69-1200N

BTW69-1200N Overview

Product belongs to the BTW69-1200N series. Tube is the packaging method for this product Through Hole Mounting-Style TOP-3 Operational temperature range: -40°C ~ 125°C Through Hole mounting type Supplier device package: TOP3 100mA of Current-Hold-Ih-Max The Voltage-Off-State is 1200V. Voltage-Gate-Trigger-Vgt-Max 1.3V 50mA of Current-Gate-Trigger-Igt-Max Maximum 1.6V On-State Voltage Its 31A Current-On-State-It-AV-Max 50A is the maximum Current-On-State-It-RMS. 10μA is the Current-Off-State-Max; This product can handle a non-repetitive surge current of 700A, 763A for 50-60Hz Itsm. SCR-Type: Standard Recovery; Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C The 1200 V Rated Repetitive Off-State Voltage VDRM; 100 mA Maximun Holding Current of Ih The Gate-Trigger-Voltage-Vgt attribute is 1.3 V on this product. Gate-Trigger-Current-Igt: 50 mA; 50 A RMS Current On-State The 10 uA Off-State Leakage Current in VDRM and IDRM. The Maximum-Gate-Peak-Inverse-Voltage is 5 V.

BTW69-1200N Image

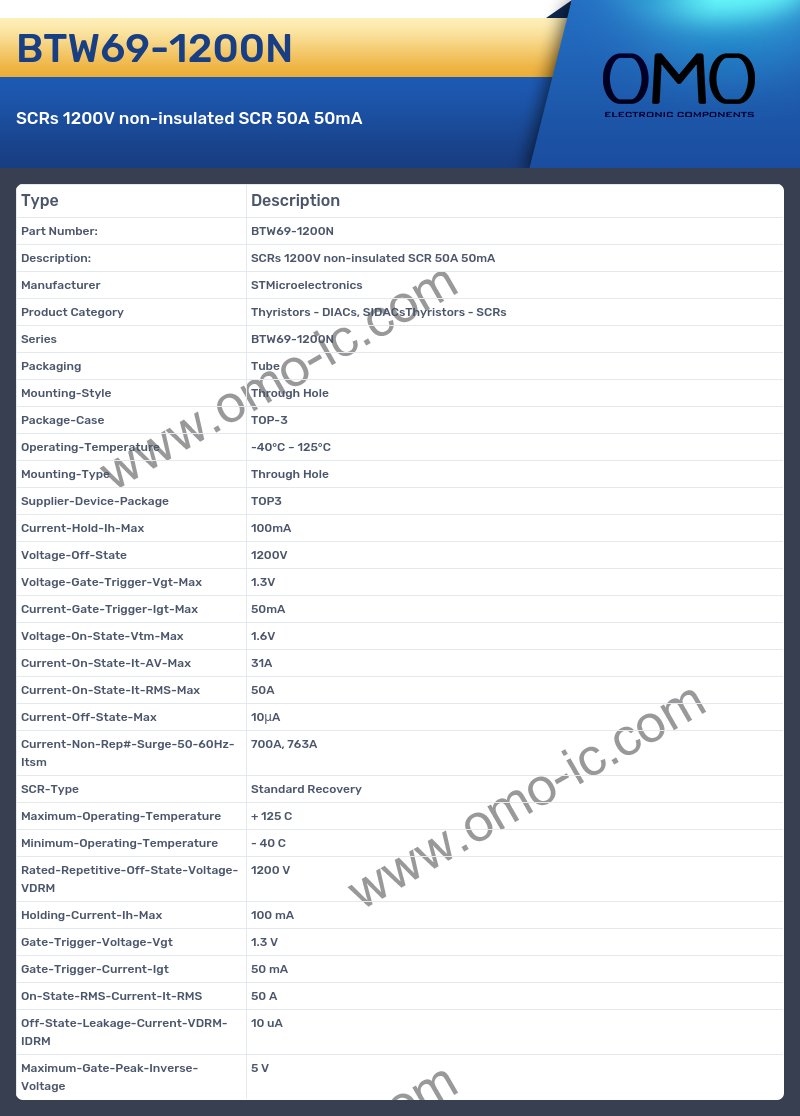

BTW69-1200N Specifications

• Manufacturer STMicroelectronics
• Product Category Thyristors - DIACs, SIDACsThyristors - SCRs
• Series BTW69-1200N
• Packaging Tube
• Mounting-Style Through Hole
• Package-Case TOP-3
• Operating-Temperature -40°C ~ 125°C
• Mounting-Type Through Hole
• Supplier-Device-Package TOP3
• Current-Hold-Ih-Max 100mA
• Voltage-Off-State 1200V
• Voltage-Gate-Trigger-Vgt-Max 1.3V
• Current-Gate-Trigger-Igt-Max 50mA
• Voltage-On-State-Vtm-Max 1.6V
• Current-On-State-It-AV-Max 31A
• Current-On-State-It-RMS-Max 50A
• Current-Off-State-Max 10μA
• Current-Non-Rep#-Surge-50-60Hz-Itsm 700A, 763A
• SCR-Type Standard Recovery
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Rated-Repetitive-Off-State-Voltage-VDRM 1200 V
• Holding-Current-Ih-Max 100 mA
• Gate-Trigger-Voltage-Vgt 1.3 V
• Gate-Trigger-Current-Igt 50 mA
• On-State-RMS-Current-It-RMS 50 A
• Off-State-Leakage-Current-VDRM-IDRM 10 uA
• Maximum-Gate-Peak-Inverse-Voltage 5 V
