BAT54WFILM

BAT54WFILM Overview

Product belongs to the BAT54 series. This product is categorized as Schottky Diodes Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.002116 oz SMD/SMT Mounting-Style SC-70, SOT-323 Si is the technology used. Surface Mount mounting type Supplier device package: SOT-323 Configuration Single Operating frequency: Fast Recovery = 200mA (Io) Schottky diode type The 1μA @ 30V Current-Reverse-Leakage-Vr 1. Vf Max 900mV @ 100mA is the Voltage-Forward; Maximum DC reverse voltage 40V The 300mA (DC) Current-Average-Rectified-Io; The capacitance value of this product is 10pF @ 1V, 1MHz for maximum efficiency. Operating-Temperature-Junction: -40°C ~ 150°C Maximum operating temperature of + 150 C Minimum operating temperature: - 40 C Vf-Forward-Voltage: 0.9 V at 0.1 A Ir-Reverse-Current is 1 uA at 30 V. If-Forward-Current is 0.3 A. VRRM (40 V) Reverse Voltage 1 A IFSM Forward Surge Current The 5 ns TRR-Reverse-Recovery-time

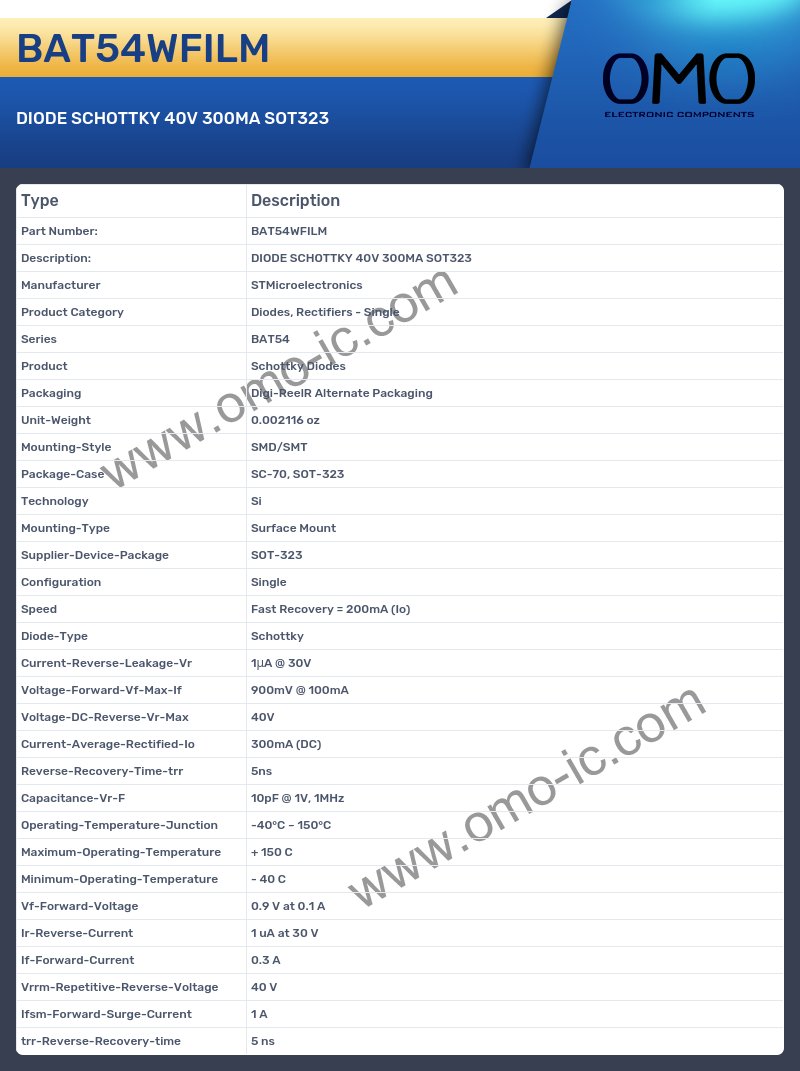

BAT54WFILM Image

BAT54WFILM Specifications

• Manufacturer STMicroelectronics
• Product Category Diodes, Rectifiers - Single
• Series BAT54
• Product Schottky Diodes
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.002116 oz
• Mounting-Style SMD/SMT
• Package-Case SC-70, SOT-323
• Technology Si
• Mounting-Type Surface Mount
• Supplier-Device-Package SOT-323
• Configuration Single
• Speed Fast Recovery = 200mA (Io)
• Diode-Type Schottky
• Current-Reverse-Leakage-Vr 1μA @ 30V
• Voltage-Forward-Vf-Max-If 900mV @ 100mA
• Voltage-DC-Reverse-Vr-Max 40V
• Current-Average-Rectified-Io 300mA (DC)
• Reverse-Recovery-Time-trr 5ns
• Capacitance-Vr-F 10pF @ 1V, 1MHz
• Operating-Temperature-Junction -40°C ~ 150°C
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature - 40 C
• Vf-Forward-Voltage 0.9 V at 0.1 A
• Ir-Reverse-Current 1 uA at 30 V
• If-Forward-Current 0.3 A
• Vrrm-Repetitive-Reverse-Voltage 40 V
• Ifsm-Forward-Surge-Current 1 A
• trr-Reverse-Recovery-time 5 ns
