AFE5805ZCF

AFE5805ZCF Overview

Product belongs to the AFE5805 series. This product is categorized as Analog Front Ends Type: Ultrasonic AFE Tray is the packaging method for this product SMD/SMT Mounting-Style nFBGA-135 Number of channels: 8 Supplier device package: 135-NFBGA (15x9) 12 bits The Voltage-Supply-Analog is 3.15 V ~ 3.47 V, 5V. The Voltage Supply Digital for this product is 1.7 V ~ 1.9 V. The architecture of this product is Pipeline . Power-off control: 1080 mW Maximum operating temperature of + 70 C Minimum operating temperature: 0 C Serial interface type Signal-to-Noise Ratio of 69.5 dB The AFE5805EVM. Maximum supply voltage of 1.9 V 3.47 V 5.25 V Minimum supply voltage is 1.7 V 3.15 V 4.75 V Number-of-Converters: 1 50 MS/s Sampling Rate Reference voltage is 2 V .

AFE5805ZCF Image

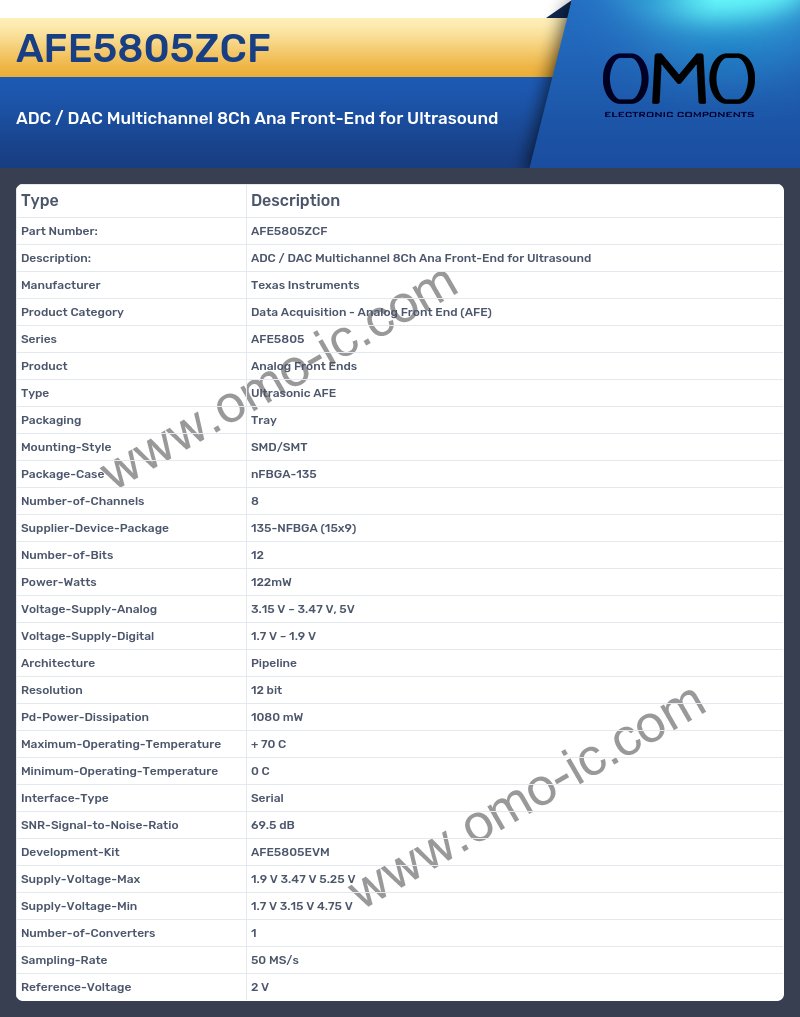

AFE5805ZCF Specifications

• Manufacturer Texas Instruments
• Product Category Data Acquisition - Analog Front End (AFE)
• Series AFE5805
• Product Analog Front Ends
• Type Ultrasonic AFE
• Packaging Tray
• Mounting-Style SMD/SMT
• Package-Case nFBGA-135
• Number-of-Channels 8
• Supplier-Device-Package 135-NFBGA (15x9)
• Number-of-Bits 12
• Power-Watts 122mW
• Voltage-Supply-Analog 3.15 V ~ 3.47 V, 5V
• Voltage-Supply-Digital 1.7 V ~ 1.9 V
• Architecture Pipeline
• Resolution 12 bit
• Pd-Power-Dissipation 1080 mW
• Maximum-Operating-Temperature + 70 C
• Minimum-Operating-Temperature 0 C
• Interface-Type Serial
• SNR-Signal-to-Noise-Ratio 69.5 dB
• Development-Kit AFE5805EVM
• Supply-Voltage-Max 1.9 V 3.47 V 5.25 V
• Supply-Voltage-Min 1.7 V 3.15 V 4.75 V
• Number-of-Converters 1
• Sampling-Rate 50 MS/s
• Reference-Voltage 2 V
